SeaKing™ 700 Dry-Mate 10K PSI Underwater Connectors, Cables, and PBOF Assemblies

NAVSEA S9320-AM-PRO-020 Molding Facility Certification — Glenair is certified by the Department of the Navy, Submarine Maintenance Engineering Planning and Procurement (SUBMEPP) to manufacture submarine outboard cable assemblies and components for the U.S. Navy IAW NAVSEA S9320-AM-PRO-020/MOLDING Rev 2 requirements. Molding Facility Certification

10K PSI / 700 Bar / 7000m Open-Face or Mated, Dual O-Ring Equipped, High-Density, High-Voltage, Fiber Optic and Hybrid Electrical/Optical Subsea Connectors

Series 70 Series 700 Series 701

SeaKing is an innovative new connector series that eliminates a broad range of mechanical design weaknesses found in many of today's high-pressure subsea connector families. From its double O-ring seals and retractable engaging nut, to its multi-keyed mating interface, the SeaKing represents a bold new approach to subsea power and signal connectivity.

Ideally suited for offshore oil & gas, military/defense, oceanographic research, and other harsh-environment subsea applications, the dry-mate connector series is built for optimal durability and reliability. Tested to 15,000 PSI (open face and mated), and equipped with integrated dual O-ring seals, marine bronze coupling nuts, corrosion-resistant stainless steel shells and high-pressure contact inserts with gold-plated signal contacts, special RF and fiber optic solutions, the Series 70 SeaKing is today's most advanced high-density signal and standard-density power subsea connector available.

Reference

Product Datasheets

Deep Dive:

SeaKing™ 700 Dry-Mate 10K PSI Underwater Connectors, Cables, and PBOF Assemblies

Next-Generation High-Speed, Signal, and Power Connectors for Mission-Critical Applications — From Submarines and ROVs to Seafloor Oil and Gas Production Platforms

Series 70 and Series 700

eBook
PDF (Single pages, print friendly)

SeaKing™ Junior

Deep Dive:

SeaKing™ Junior

High-Density, Dry-Mate, Harsh-Environment Connectors and Cables for Lighter-Duty ROV Applications such as Lights and Sensors

Series 701

eBook
PDF (Single pages, print friendly)

SeaKing™ Fiber Optic

Deep Dive:

SeaKing™ Fiber Optic

10K PSI Open-Face Pressure Rated Fiber Optic Connectors, Cables and Jumpers – Singlemode and Multimode with Low dB Data Loss

eBook
PDF (Single pages, print friendly)

SeaKing POWER for Subsea Primary Power Junctions

Deep Dive:

SeaKing™ Power

1–6.6kV Connectors for Deep Sea Oil & Gas Primary Power Junctions

eBook
PDF (Single pages, print friendly)

SeaKing™ 700 Underwater Connector 3D CAD Model Files

Browse and download SeaKing™ 700 connector CAD drawings, models, and 3D parts

	700-001 SeaKing 700 Cable Connector Plug (CCP) 700 = SeaKing™

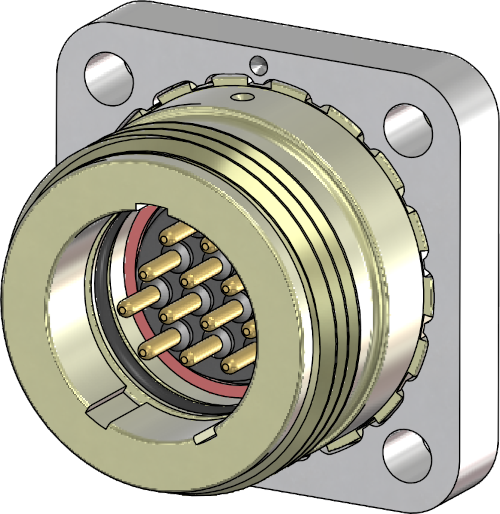

	700-006 SeaKing 700 SeaKing 700 Flange Connector Receptacle (FCR) 700 = SeaKing™

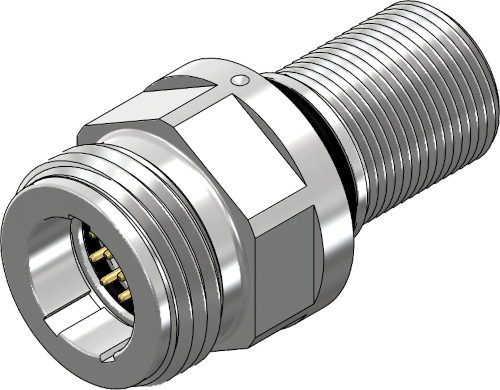

	700-007 Bulkhead Connector Receptacle (BCR) 700 = SeaKing™
	707-0413 Cable Connector Plug (CCP) 707 = SeaKing™
	709-123 SeaKing 700 PBOF Assembly System Fittings and Accessories Hose barb fittings for PBOF assemblies are the perennial weak link in subsea oil & gas applications. Kinked and twisted hoses, leaky fittings, corroded hose clamps, and general poor performance characterize most existing solutions. The Glenair PBOF swivel hose attachment for SeaKing™ connectors solves these problems and more. Designed from the sea floor up to perform flawlessly and reliably, this revolutionary attachment puts an end to the long list of field maintenance problems associated with oil-filled cable applications. Straight, 45°, and 90° "full radius" angle and profile hose routing Hose angle adjustment feature eliminates risk of oil leakage Corrosion-resistant materials used throughout Threaded couplers with safety set-screws for fail-safe leak and decoupling protection — no special tools required for assembly Compact PBOF compression fitting with 340° hose swivel action Support for the broad range of hose diameters and wall thicknesses
	SeaKing 700 Overmolded and Repairable Cable Capabilities, Tools and Accessories Turnkey Overmolded and Repairable Cable Assemblies, Special Configurations Plug Pressure Cap (mates witH 700-006/007 Receptacle Pressure Cap (mates witH 700-001) Anti-Cathodic Delamination Ring Insert Installation Tool O-Ring Kits and O-Ring Lubrication Grease Spanner Wrench Torque Wrench Adaptors Plug Nut Replacement Hex Nut for Bulkhead Connector Receptacle Replacement Washer Snap Ring Pliers Band-Master ATS® Micro Banding Tool and Bands
