High-Speed Cable, Connectors, and Contacts for High Data-Rate Transmission Protocols including USB 3.0, 10G Ethernet, SATA, DVI, HDMI, and Others

Rugged, High-Speed Connector Solutions for Mil-Aero Data Bus Protocols, Ethernet Networking and High-Data Rate Display Protocols including USB 3.0

High-speed connectors and contacts are interconnect devices optimized for compatible performance with popular data transmission protocols, ranging from aerospace-standard data bus protocols such as ARINC 1553 and CAN bus, to networking protocols such 1000BASE-T Ethernet, and peripheral and display protocols including USB 3.0 and SATA. Rugged high-speed connectors of this type incorporate shielded contact technologies suitable for use in aircraft avionics, weapons systems, radars, communication equipment and other aerospace / defense equipment that depend on uncompromised signal integrity.

Ethernet has become the dominant protocol type in high-speed systems due to its ability to efficiently move data over low bandwidth copper cabling. Standard Ethernet can reach up to 100 meters over copper through multiple mated interconnects. The Ethernet protocol is ubiquitous, backward-compatible and subject to ongoing improvement. Other popular protocols include SATA, DVI, HDMI, and SMPTE 3G-SDI which are ideally suited for transmission via shielded (high-frequency) contacts and cables. Each of these protocols poses a unique signal integrity challenge, typically met by a specialized high-speed connector and contact assembly.

Consult factory for MIL-DTL-38999, Series 80 Mighty Mouse and MIL-DTL-5015 solutions that incorporate RJ45 and USB high-speed connectors. Glenair also manufactures and supplies qualified quadrax and fiber optic solutions for high-speed applications.

Slideshow Presentations

Our Unique High-Speed Protocol Interconnect Value Proposition

Turnkey Solutions: Integrated High-Speed Protocol cable assemblies built around Glenair aerospace-grade SpeedLine™ cabling, connectors, and contacts.

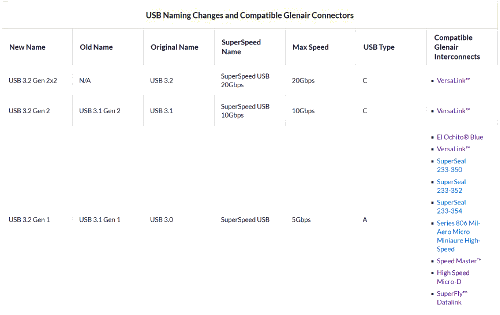

	USB Naming Changes and Compatible Glenair Connectors New Name Old Name Original Name SuperSpeed Name Max Speed USB Type Compatible Glenair Interconnects

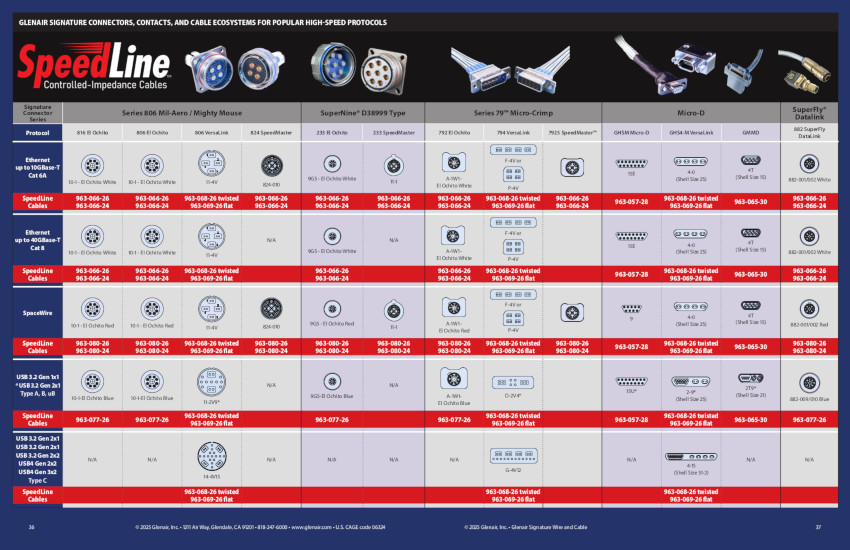

	Connectors, Cables, and Contacts for High-Speed Datalink Protocols Glenair connector and contact arrangements suitable for high-speed datalink applications Application Guide Series 80 Mighty Mouse Series 23 SuperNine® Series 88 SuperFly™ Series 79™ Micro-D Hiper-D
	High-Speed Connector Test Reports S-Parameters and Performance Data for: Series 85 El-Ochito® High-Speed Octaxial Contacts Series 85 VersaLink™ High-Speed Connectors Series GS HD Stacker™ Board-to-Board Connectors Series ITH Octobyte™ Industrial Ethernet Connectors SpeedMaster™ High-Speed 10G Connectors
	High-Speed Datalink Connector 3D CAD Model Files Browse and download High-Speed connector CAD drawings, models, and 3D parts

High-Speed Mil-Aero Interconnect Solutions

Glenair Signature Electrical, Optical, and RF / Microwave Connector, Cable, and Contact Ecosystems

eBook
PDF (Single pages, print friendly)

	Series 806 Mil-Aero Micro Miniature Connectors Advanced Electrical, Mechanical and Environmental Performance plus Reduced Size and Weight Compared to D38999. Meets every MIL-DTL-38999 performance specification. High-speed Ethernet, USB 3.0, HDMI, and DisplayPort Next-generation small form factor aerospace-grade circular connector Upgraded environmental, electrical and mechanical performance Integrated antidecoupling technology High-Speed El Ochito® and hybrid #22HD contact arrangements
	Supernine® High-Speed Connectors "Better than QPL" MIL-DTL-38999 High-Speed Solution Tooled and ready-to-ship high-speed and hybrid insert arrangement connectors for size #8 El Ochito shielded contacts. Arrangements for #8, #12, and #16 Coax, Twinax, and Quadrax also available Supported applications: 10/100/1G/10G BASE-T Ethernet, HDMI, DisplayPort, SATA, USB 3.0 , 1553 databus and general RF or differential data transmission

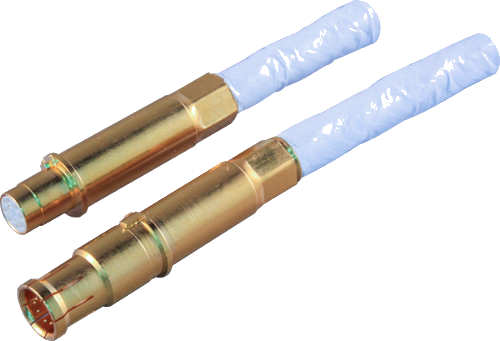

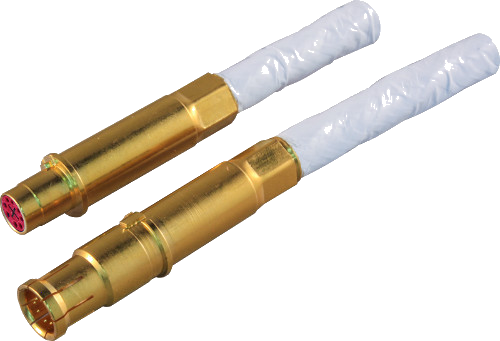

	El Ochito® High-Speed Octaxial Contacts, Pre-Wired Pigtails and Jumper Assemblies Ethernet, SuperSpeed USB, HDMI, DisplayPort, SATA Contacts and Jumper Assemblies. For Series 23 SuperNine®, Series 80 Mighty Mouse, Series 28 HiPer-D®, Series 79, ARINC 600, and EPXB Connectors.
	SuperFly® Datalink Harsh-Environment Ultraminiature Connnector for High-Speed Applications Including 40 Gigabit Ethernet, HDMI, SuperSpeed USB, DisplayPort, and SATA Series 882

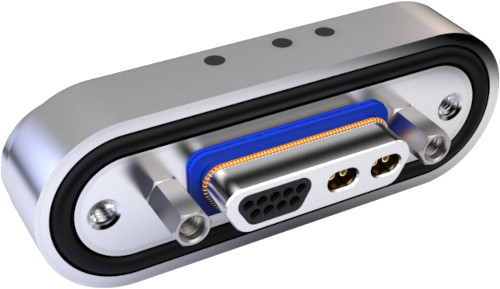

	VersaLink™ "Zero-Crosstalk" Twinax Connectors and Cables Innovative differential twinax crimp contacts with highest available bandwidth — up to 28Gbps each — in rugged mil-aero circular and rectangular connector packaging. Hybrid insert arrangements support both standard signal as well as high-speed differential data. VersaLink: shielded differential Twinax interconnect solution Signature Glenair design intermountable in standard Micro-D footprints Higher speed and density than mil-spec style Twinax solutions Individually shielded pairs result in virtually zero cross talk Hybrid arrangements with VersaLink contact modules and standard Micro-D inserts for signal and power
	VersaLink Bridge Board Level Connectors VersaLink Bridge: bypass high-loss board traces with a low insertion-loss and low signal-latency point-to-point Twinax jumper Small footprint, highdensity solution Versatile solder-mount or screw-mount board termination 100 Ohm differential Twinax Push-pull mating or bayonet-lock for high vibration and shock applications Keyed polarization prevents mis-mating Low insertion loss and low signal latencies for high datarate board transmissions
	High-Speed Micro-Crimp Rectangular Connectors Multi-Port Micro Miniature Rectangular Connector for High-Speed Wire-to-Board Applications 10G Ethernet • USB 3.0 • HDMI • SATA • DisplayPort Series 790, 791, 792
	High-Speed SpeedMaster™ 10G Connectors High-Speed IFEC Connector System available for Glenair Series 23 SuperNine, Series 824 Mighty Mouse and Series 28 HiPer-D Connectors Utilizes aerospace industry standard #22D contacts, tools and widely available Ethernet flight cable Fast, easy termination Hermetic Options Available
	High-Speed Micro-D Connectors and Cables High-Speed Micro-D uses an impedance optimized open pin field for high-density signal routing flexibility. 1 Amp pre-wired cable and PCB solutions deliver up to 15 Gbps performance per differential pair. Auxiliary EMC ground springs on plugs ensure data integrity and low attenuation performance. For USB 3.010GbECamera LinkPCIe 3.0 Series GHSM Pre-wired factory pigtails, cordsets, and PCB connectors Unique contact isolation and spacing for optimal high-speed performance up to 15 Gbps Supports maximum #28 AWG wire Low-k dielectric insulator combined with optimized contact size and spacing Precision-machined shells with gold or nickel plating 1 Amp TwistPin contacts for optimal performance in harsh vibration, shock, and high-temperature environments
	Modular Micro-D Innovative Modular Micro-D Connectors and Cables for RF, Signal, and High-Speed Data Links Series GMMD The Series GMMD is an innovative modular Micro-D connector for RF coax and high-speed differential datalink applications. The unique micro miniature design of the GMMD also accommodates standard analog signal and power contacts, making it the most versatile Micro-D rectangular in the industry. GMMD leverages Glenair Signature Micro-D and Nano TwistPin contact inserts, as well as ultra small form-factor differential twinax modules delivering 18 Gb/second per pair and RF to 20 GHz. GMMD is supplied as factory-terminated pigtails, point-to-point jumpers, and SMT receptacles for easy PCB mounting.
	SuperSeal™ RJ45, USB, HDMI, and DisplayPort Field Connectors, Cables, and Accessories Ruggedized RJ45, USB, HDMI, and DisplayPort Connectors and Cables for Applications as Diverse as Military Ground Vehicles to Passenger IFE
	Octobyte™ The Faster 4/8 Pole Interconnect System for Ethernet Data Applications

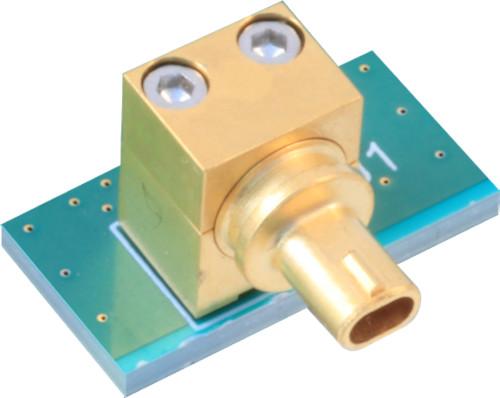

	High-Speed / High-Frequency RF, Microwave and Shielded Contacts For MIL-DTL-38999, Series 23 SuperNine®, Series 80 Mighty Mouse, and Series 79 Micro-Crimp® Connectors Series 85

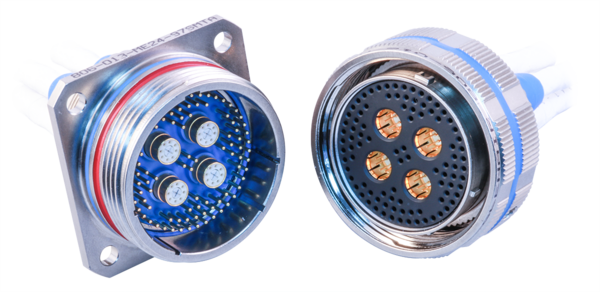

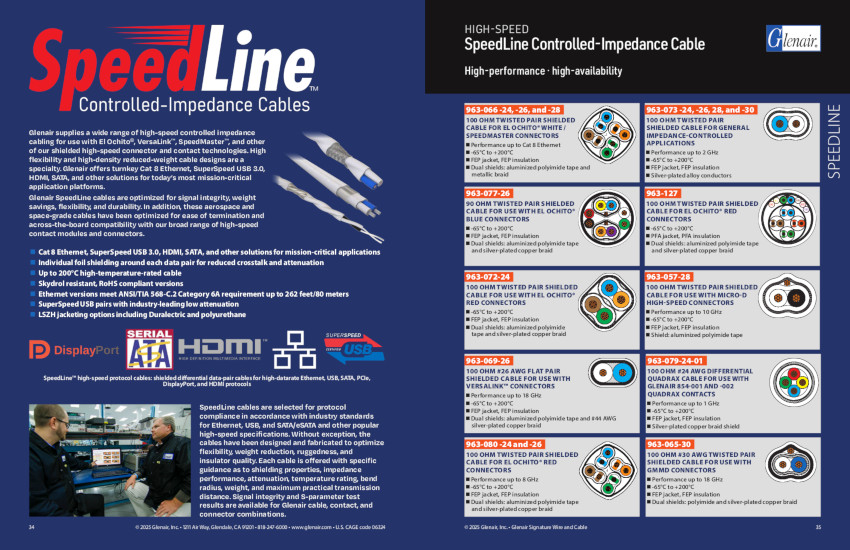

	SpeedLine Protocol-Specific High-Speed Cable For USB, Ethernet, SATA and Other General-Purpose/Protocol-Specific High-Speed Data Transmission Applications Series 963 SpeedLine Cable
