Series 806 VersaLink™ Connectors

VersaLink™

Glenair Signature Series 806 Mil-Aero connectors with VersaLink contacts feature advanced electrical, mechanical, and environmental performance plus reduced size and weight compared to D38999. Rapid-advance ratcheted coupling optimizes fast and reliable mating and demating.

Reference

VersaLink™ Circular Backshell Selection Guide

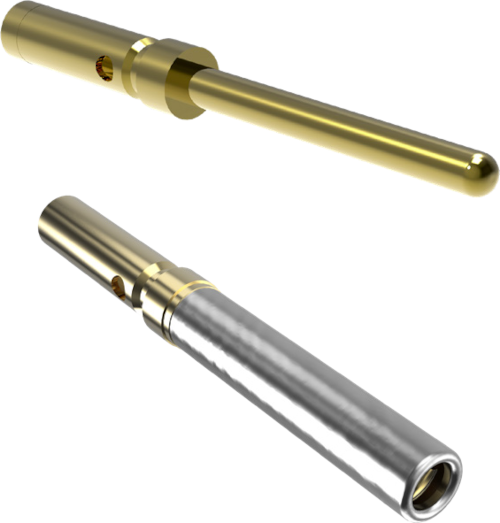

Size 22HD Signal Contacts for Series 806 VersaLink Hybrid Arrangements

Size 22HD Signal Contacts for Series 806 VersaLink Hybrid Arrangements

High-density size #22HD contacts accept #22 to #30 AWG wire. Compatible with Series 806 connectors with size 22HD contact cavities. Crimp termination. Contacts are bulk packaged.

  • Military grade
  • Heavy gold plating
Size 20HD Power Contacts for Series 806 VersaLink Hybrid Arrangements

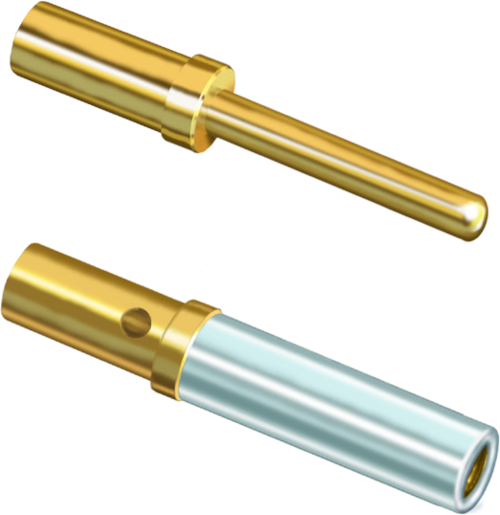

Size 20HD Power Contacts for Series 806 VersaLink Hybrid Arrangements

High-density size #20HD contacts accept #20 to #24 AWG wire. Compatible with Series 806 connectors with size 20HD contact cavities. Crimp termination. Bulk packaged.

  • Military grade
  • Heavy gold plating
VersaLink Plug, 806-044

806-044
VersaLink Plug

VersaLink Square Flange Receptacle, 806-045

806-045
VersaLink Square Flange Receptacle

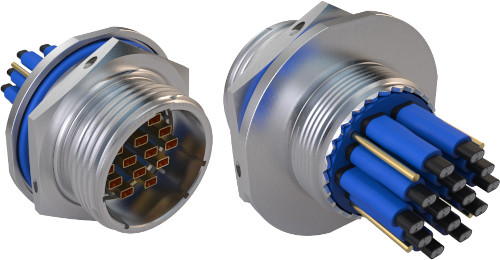

VersaLink Jam-Nut Receptacle, 806-046

806-046
VersaLink Jam-Nut Receptacle

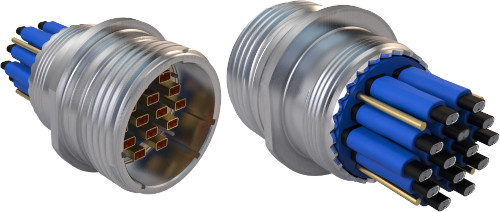

VersaLink In-Line Receptacle, 806-047

806-047
VersaLink In-Line Receptacle

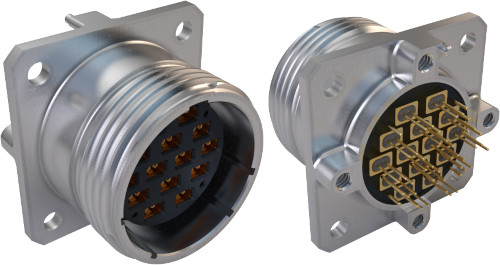

VersaLink PCB Square Flange Receptacle, 806-048

806-048
VersaLink PCB Square Flange Receptacle

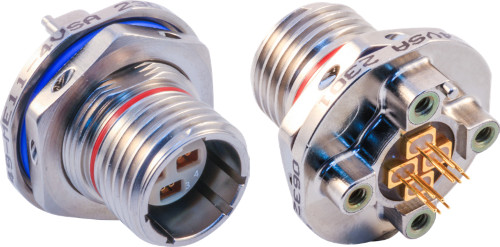

VersaLink PCB Jam-Nut Receptacle, 806-049

806-049
VersaLink PCB Jam-Nut Receptacle

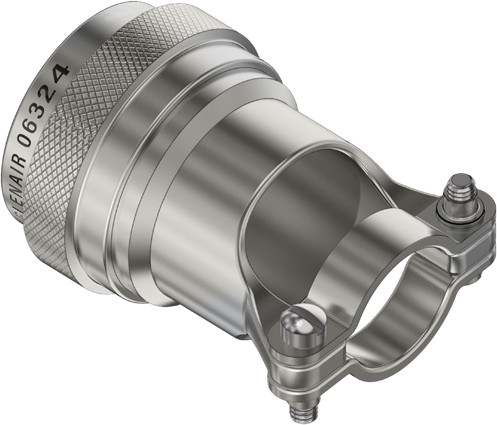

Strain Relief Cable Clamp Backshell, High-Speed Contacts, 620VS090

620VS090
Strain Relief Cable Clamp Backshell, High-Speed Contacts

Extended frame saddle clamp fits Series 806 Mil-Aero connectors. Clamp has enlarged inside diameter and longer frame to provide clearance for high-speed contacts with sealing boots. Extra clearance helps prevent contact splay and damage. Full radius saddle bars have self-locking SST clinch nuts. Anti-decoupling mechanism provides audible detented coupling and prevents backoff under high vibration.

  • Self-locking
  • Full radius saddles
  • Extra clearance for #8 sealing boots

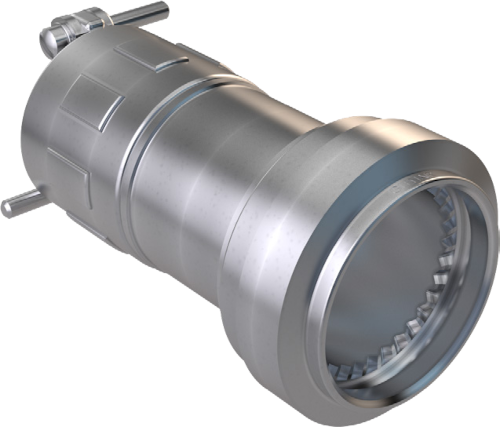

Banding Backshell, Shrouded, 440V#1130

440V#1130
Banding Backshell, Shrouded

Threaded coupling adapter with anti-decoupling ratchet prevents loosening under vibration. Accommodates Series 806 connectors with high-speed contacts and cable sealing boots. Aluminum or stainless steel.

  • Band-In-A-Can

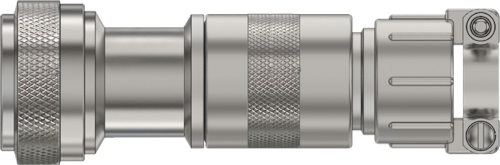

Banding Backshell, Shrouded, Expanded Clearance, 443V*042

443V*042
Banding Backshell, Shrouded, Expanded Clearance

"Band-in-a-Can" shield termination. Saddle clamp. 443V*042 banding backshell fits Glenair Series 806 Mil-Aero VersaLink connectors. Backshell has increased clearance for sealing boots used with VersaLink contacts. Anti-decoupling mechanism provides audible detented coupling and prevents backoff under high vibration. Terminate cable braid shield with band strap (optional). Environmentally sealed with O-rings. Aluminum or stainless steel. Saddle clamp hardware is passivated SST. Silicone O-rings and grommet. Aluminum version has thermoplastic detent spring, stainless steel version has stainless steel detent spring.

  • Prevents splaying of VersaLink contacts
  • Environmental
