VersaLink™ Contact Technology

VersaLink™ Contact Technology

VersaLink Twinax contact technology supports high-speed serial data protocols including 100 Gigabit Ethernet, USB4, SATA, PCIe, DisplayPort, and HDMI. Crimp-contact twinax modules are sold separately for ready packaging in Glenair signature circular and rectangular connectors.

Reference


VersaLink Pin Contact Assembly, 853-045

853-045
VersaLink Pin Contact Assembly

VersaLink Socket Contact Assembly, 853-046

853-046
VersaLink Socket Contact Assembly

VersaLink Pin/Socket Cable Assemblies, 8574-0001

8574-0001
VersaLink Pin/Socket Cable Assemblies

Save assembly time and cost with pre-wired, 100% tested VersaLin­k™ assemblies. Cables have VersaLink contacts terminated at one or both ends of aerospace-grade shielded cable. Supplied with cable grommet follower if applicable. Compatible with Glenair Series 794, Series 816, and Series 806 connectors. VersaLink contacts may only be installed in connectors with VersaLink insert arrangements.

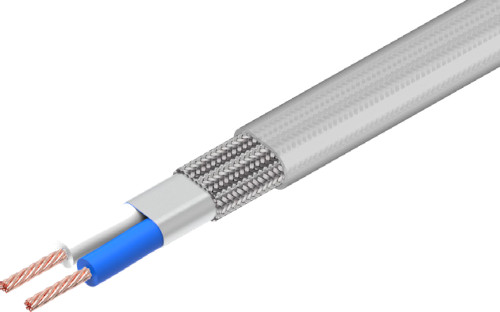

SpeedLine 100 Ohm High-Speed Protocol Cables

963-068-26
963-069-26
SpeedLine 100 Ohm High-Speed Protocol Cables

  • 963-068-26
    26 AWG - Twister Pair
  • 963-069-26
    26 AWG - Parallel Pair
VersaLink Grommet Follower, 859-207

859-207
VersaLink Grommet Follower

Optional grommet follower is recommended. Slide boot onto wire before terminating contact. After contact is installed in connector, slide grommet follower forward into connector grommet to seal the contact cavity.

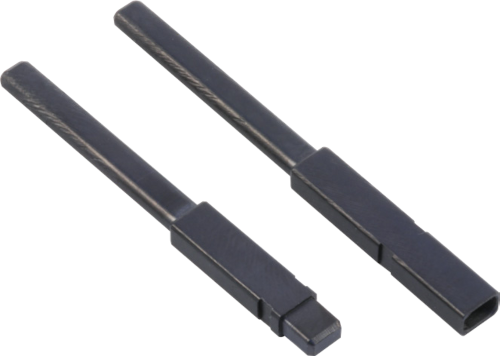

VersaLink Pin or Socket Dummy Contact Sealing Plug, 859-224

859-224
VersaLink Pin or Socket Dummy Contact Sealing Plug

Conventional sealing plugs, combined with the connector grommet seal, provide reliable dust and moisture ingress protection. But common contact sealing plugs still require that a properly-sized electrical contact be first inserted into the cavity, followed by the plastic plug. Glenair innovative Dummy Contact Sealing Plugs (DCSP) eliminate the need to use expensive electrical contacts as part of the sealing regimen. Fast and easy-to-install, these longer form-factor Dummy Contact Sealing Plugs (DCSP) are a one-piece solution to contact cavity sealing that results in significant weight reduction, material cost reduction, and assembly labor. Grommet follower 859-207-2 required to seal rear of cavity.

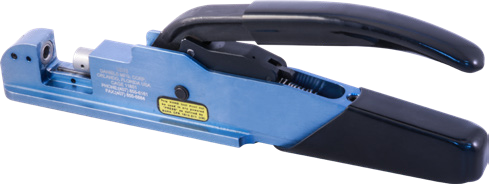

VersaLink Inner Contact Crimp Tool, 809-464 and 859-205

809-464
859-205
VersaLink Inner Contact Crimp Tool

  • 809-464
    Contact Crimp Tool
  • 859-205
    Contact Crimp Die

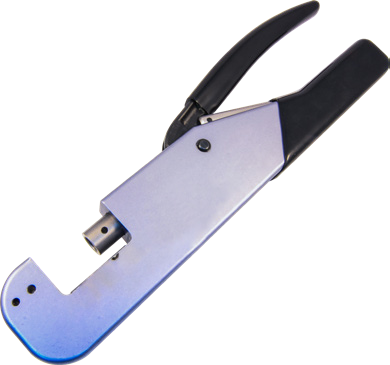

VersaLink Shield Crimp Tool, 809-465 and 859-206

809-465
859-206
VersaLink Shield Crimp Tool

  • 809-465
    Shield Crimp Tool
  • 859-206
    Shield Crimp Die

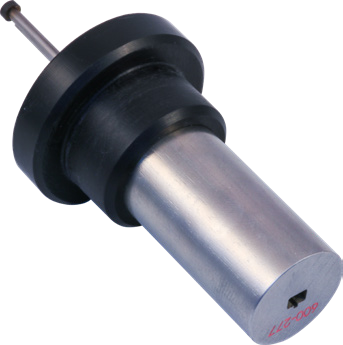

VersaLink Contact Assembly Tool, 600-277

600-277
VersaLink Contact Assembly Tool

  • Socket Assembly Tool
  • Pin Assembly Tool

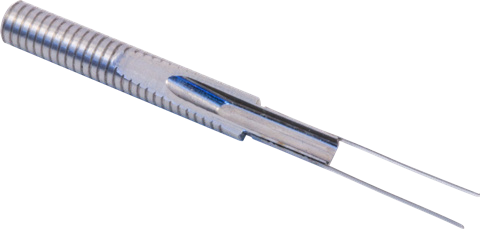

VersaLink Contact Removal Tool, 859-158

859-158
VersaLink Contact Removal Tool
