STAR-PAN™ Integrated Soldier Multiport USB Data Hub / Power Distribution Systems

JTAC-Tough™

Integrated Soldier Power / Data Hubs are Personal Area Network (PAN) hub and interconnect systems providing network data access, peripheral connectivity and smart battery power management for dismounted soldier C4ISR electronics in Digitally Aided Close Air Support (DACAS) missions, including precision targeting, tactical radio communications, real-time video downlink, night vision technologies, GPS/navigation, blue force tracking, personal computing and smart phone integration.

Core capabilities of a soldier-worn PAN hub may include:

  • Ethernet networking
  • USB compatible peripheral support
  • Software-defined radio support
  • Common interconnect interface
  • Charging and battery power management

Powering Soldier Connectivity and C4ISR Mission Success

Ruggedized soldier-worn electronics have revolutionized mission effectiveness. But the ongoing evolution of Digitally Aided Close Air Support (DACAS) missions, including precision targeting, ground and air radio communications, real-time video downlink, GPS/navigation, and personal area network computing has added significant mission weight to the dismounted soldier ensemble. Battery power management for this broad range of electronic gear is a significant challenge in terms of mission time, weight and supply logistics. The Glenair STAR-PAN™ data hub and power distribution system enables soldiers — from standard light infantry to Joint Terminal Attack Controllers (JTACs) — to make the most of C4ISR devices, improving situational awareness, surveillance, intelligence and reconnaissance while optimizing power monitoring and distribution performance. Importantly, all STAR-PAN™ technologies — from the high-density, NATO standard Mighty Mouse quick-disconnect connectors and cables to the scalable range of low-profile hub enclosures — are designed for optimal size, weight, power, and ruggedized milspec performance with battle-tested environmental and EMC sealing and shielding.

STAR-PAN™ VI Capability Diagram
STAR-PAN™ VI Capability Diagram

Multiport Power and Data Hubs for Digitally Aided Close Air Support (DACAS)

  • Versatile 1, 2, 4, and 6-port high-speed hub configurations
  • Compatible with USB 1.1, USB 2.0, and SMBus
  • Embedded power charging
  • Smart power monitoring for longer mission life
  • Robust circuit protection
  • MIL-STD-810 harshenvironment tested
  • Compliant NATO STANAG 4695 Soldier Power Connector
  • New MISSION MANAGER for on-the-fly device integration to soldier C4ISR networks

Glenair's Tactical Interconnect Solutions team is backed by six decades of proven, made-in-America interconnect industry performance in service of US and allied armed forces.

Reference

Slideshow Presentation

Product Datasheets

Aerospace/Missile Systems

Ground Soldier

Military Vehicles

Related Glenair Catalogs

Download PDF Spread Version

JTAC-TOUGH STAR-PAN™

[ spread version ]

Home > STAR-PAN™ USB Data / Power Hubs

Mighty Mouse 807: The NATO 4695 Standard

Mighty Mouse 807: The NATO 4695 Standard

The Worldwide (NATO) Quick-Disconnect, Open-System Standard for Tactical Soldier Battery and C4ISR Device Interconnection

The STAR-PAN™ System grew out of capabilities gained by designing Mighty Mouse 807 into a broad range of soldier electronic devices and power supplies. Today, the Mighty Mouse 807 QDC dismounted soldier interconnect has both US and NATO STANAG 4695 compatibility — with broader battlefield application than all other tactical soldier connectors combined.

STAR-PAN™ Power Distribution and Management Architecture

STAR-PAN™ Power Distribution and Management Architecture

Symbiotic Radio / Battery Power Utilization and Management for JTAC and other Battery-Power-Intensive Mission Profiles
  • API interface for user-controlled power management
  • Port priority, charge state, system battery state, and temperature protection
  • Charge-circuitry for a wide range of smart batteries
STAR-PAN™ Android / Windows Apps and ATAK Plug-In

STAR-PAN™ Android / Windows Apps and ATAK Plug-In

User-Controlled Charging and Battery Power Management Touch-Screen Applications
  • Android / Windows apps with seamless ATAK integration
  • Independent port power management
  • System battery state management
  • API interface for software integration
  • Power protection

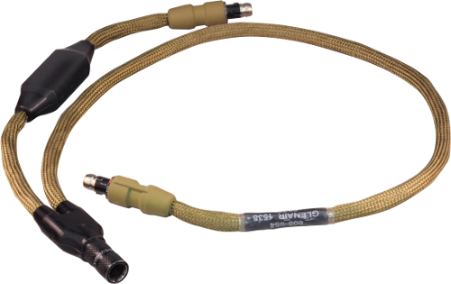

STAR-PAN™ Light: Bifurcated power and data cable with 5V regulator

STAR-PAN™ Light
Bifurcated power and data cable with 5V regulator

Enabling Situational Awareness, Comms, and Improved Battery Power Autonomy for Light Dismounted Infantry

  • Supports power and data connectivity between soldier's EUD, pDDL (or radio), plus battery
  • 5V regulator bifurcated cable optimized for plug-and-play connectivity to US and NATO standard devices
  • Interconnect interface is Glenair Series Mighty Mouse (NATO STANAG 4695) quick-disconnect connectors
  • Radio connectivity requires additional adapter cable
STAR-PAN™ I: 1 port smart power and data hub with 5V regulator

STAR-PAN™ I
1 port smart power and data hub with 5V regulator

Enabling Enhanced Situational Awareness, Comms, and Improved Battery Power Autonomy for Light Dismounted Infantry

  • Supports power and data connectivity between soldier's EUD, radio or pocket Digital Data Link (pDDL), plus battery
  • 5V regulated hub optimized for plug-and-play connectivity to US and NATO standard devices
  • Interconnect interface is Glenair Series Mighty Mouse (NATO STANAG 4695) quick-disconnect connectors
  • All cables supplied separately for optimal configuration flexibility

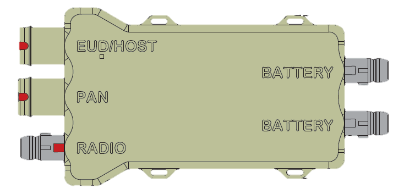

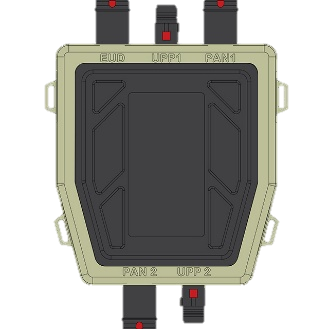

STAR-PAN™ II: 2 port (expandable) power and data hub / cabled hub assembly

STAR-PAN™ II
2 port (expandable) power and data hub / cabled hub assembly

Integrated USB Data/Power Distribution Hub for Fast-Moving Special Operation Forces and Small-Squad Team Leaders

  • STAR-PAN II 808-057 with integrated cables, or 808-194 standard hub
  • Designated host/EUD port, designated radio/peripheral port, and Universal PAN compliant port (expandable for up to two devices)
  • Supports hot-swappable power sources and radio supplied backup power
  • Heat-efficient electronics packaging to optimize efficiency and extend battery life

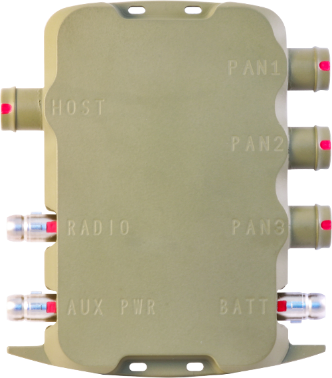

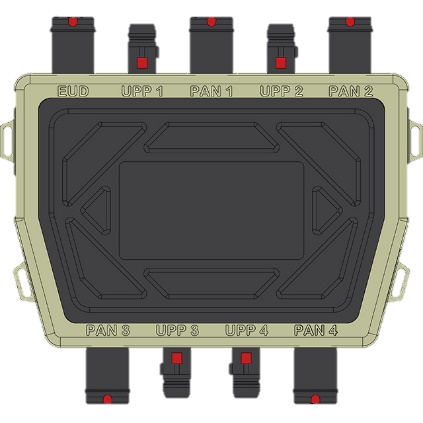

STAR-PAN™ IV: 4 port smart power and data hub system

STAR-PAN™ IV
4 port smart power and data hub system

Integrated USB Data/Power Distribution Hub for Ground Force Commanders, UAS and UGV Controllers, and other Complex Tactical Mission Specialists

  • Battery Power and +5VBus power to up to 4 USB devices, 2 dedicated Radio ports
  • Robust fault mode protection circuitry for surge, reverse voltage, and over current
  • Embedded level 3 charge control circuitry for smart battery interface, within a wide charge voltage range
  • Compatible with DC power sources
  • APS port for system power and main system battery charging on extended missions
  • Radio Port Vbus System Hold Up for extended mission time and weight reduction
  • Compatible Personal Area Network (PAN) pin configuration and Smart battery interface
  • Built-in SMBus to USB converter to USB host device

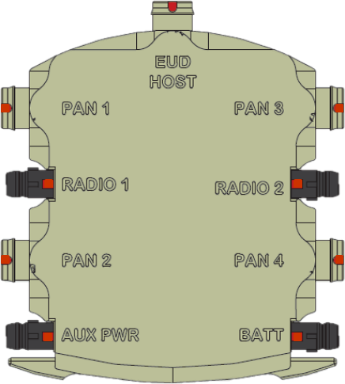

STAR-PAN™ VI: 6 port smart power and data hub system

STAR-PAN™ VI
6 port smart power and data hub system

Integrated USB Data/Power Distribution Hub for Digitally Aided Close Air Support (DACAS) and other Combined mission commander / JTAC applications

  • Battery Power and +5VBus power to up to 4 USB devices, 2 dedicated Radio ports
  • Robust fault mode protection circuitry for surge, reverse voltage, and over current
  • Embedded level 3 charge control circuitry for smart battery interface, within a wide charge voltage range
  • Compatible with DC power sources
  • APS port for system power and main system battery charging on extended missions
  • Radio Port Vbus System Hold Up for extended mission time and weight reduction
  • Compatible Personal Area Network (PAN) pin configuration and Smart battery interface
  • Built-in SMBus to USB converter to USB host device
STAR-PAN™ Mission Manager: Plug-and-play EUD / USB peripheral data exchange device

STAR-PAN™ Mission Manager
Plug-and-play EUD / USB peripheral data exchange device

  • End User Device independent — no device rooting or custom ROM images needed
  • Real-time, plug-and-play device integration
  • Supports multiple simultaneous Ethernet devices
  • Dedicated EUD port for connection to downstream EUD
  • Minimal power demands
  • Seamless integration into STAR-PAN systems
  • NATO standard Mighty Mouse connector interface
  • Mission Manager MX software Android, iOS, Windows and Linux compatible
  • Export classification EAR99

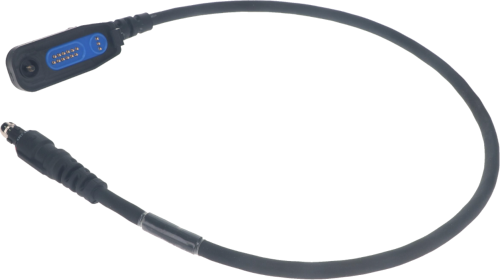

STAR-PAN™ Radio Cables and Adapters

STAR-PAN™ Radio Cables and Adapters

  • AN/PRC-152A Radio Adapter Cable
  • AN/PRC-117G /RF-7800M-MP / RF7800H-MP Radio Adapter Cable
  • RT-1922 Microlight SADL Radio Data Cable
STAR-PAN™ Power / Battery Cables and Adapters

STAR-PAN™ Power / Battery Cables and Adapters

  • BA5590/BB2590 Battery Shoe
  • Radio Power Booster For Harris, L3, Silvus, and other radios
  • Conformal Battery Adapter Cable
STAR-PAN™ Targeting Device Cables and Adapters

STAR-PAN™ Targeting Device Cables and Adapters

  • Safran Vectronix Vector 21/21B and Moskito Data Cable
  • PLRF 15C/25C Laser Range Finder Cable
  • Safran Vectronix STERNA TNF Data Cable
STAR-PAN™ Video Downlink, GPS, and Auxiliary Device Cables

STAR-PAN™ Video Downlink, GPS, and Auxiliary Device Cables

  • DAGR GPS Navigation Cable
  • StrikeHawk Digital Adapter Cable
STAR-PAN™ Host/EUD Cables and Adapters

STAR-PAN™ Host/EUD Cables and Adapters

  • K├Ągwerks tactical EUD case with Adapter Cable
  • USB-C EUD Charging Cable
  • Tactical EUD Juggernaut Case with Adapter Cable
STAR-PAN™ Commercial Protocol Cables and Adapters

STAR-PAN™ Commercial Protocol Cables and Adapters

  • USB-A host adapter cable (without power)
  • PAN device to USB-A Receptacle Adapter Cable
  • Ethernet converter cable, RJ45 receptacle
