STAR-PAN™ NG Video / GPS and Auxiliary Cables

Video Downlink, GPS, and Auxiliary C4ISR Device Cables, Including the Complete Range of TacROVER Peripherals

Reference

Product Selection Guide

	808-040 DAGR GPS Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated RS-232 to USB conversion circuitry Nomex® braid, olive drab; and black Santoprene wire protection. Overmolded, ergonomic connector strain reliefs. Black zinc-nickel stainless steel thumbscrew Mighty Mouse 807 (NATO standard) connectors and custom DAGR PC and power connectors Weight, 24" cable: 104g Export classification: 3A611.x

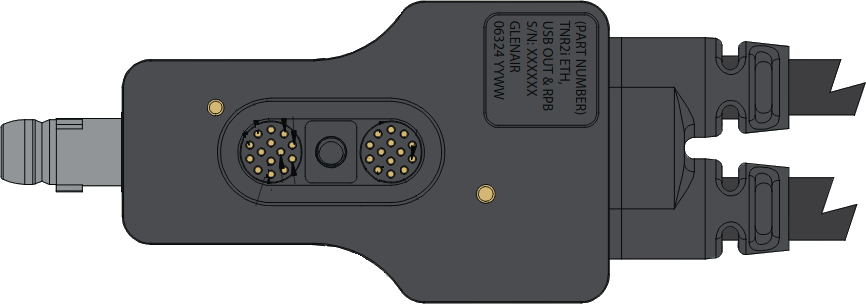

	TS8-547 TNR2i Side Hat, Ethernet And Composite Video Out, RPB Unit pack: 1 ea. In ESD bag, heat-sealed. Include ESD dust cap. Tag and bag per illustration. Refer connector drawings 8070-1676 and 804-003 for connector materials, finishes and dimensions. Lengths to be measured straight. Jumper wires to be per M22759/11 To be used with TS1-037

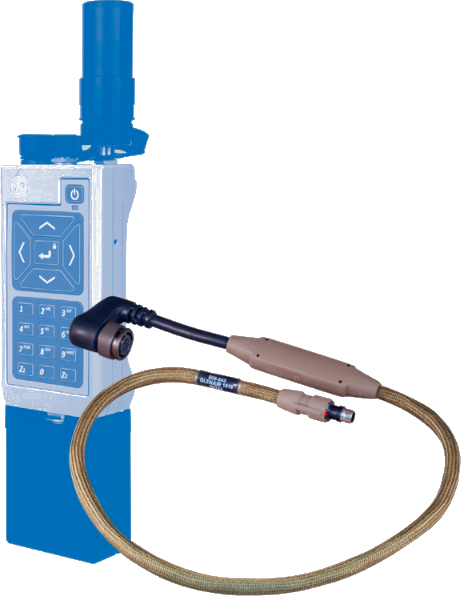

	808-045 TacROVER-P SIR 2.0 Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Nomex® braid, olive drab and TPE jacketed cable, black Overmolded, ergonomic connector strain reliefs. Mighty Mouse 807 (NATO standard) and 803 (bayonet-lock) connectors. Weight, 32" cable: 104g Export classification: 3A611.x

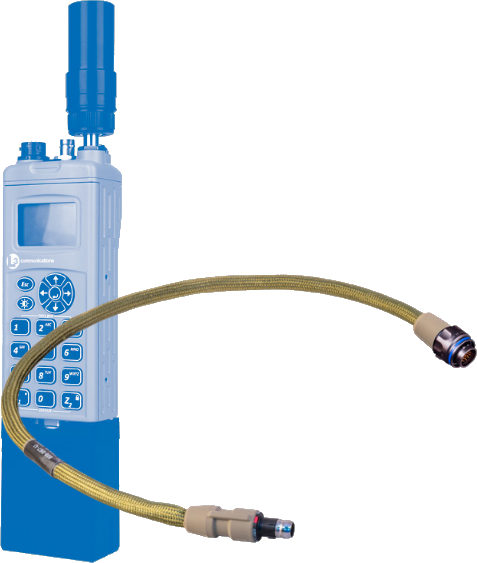

	808-068 TacROVER-P SIR 2.5 Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Nomex® braided cable, olive drab Overmolded, ergonomic connector strain reliefs, desert tan. Mighty Mouse 807 (NATO standard) connectors and P2 peripheral device connector Weight: 69g Export classification: 3A611.x

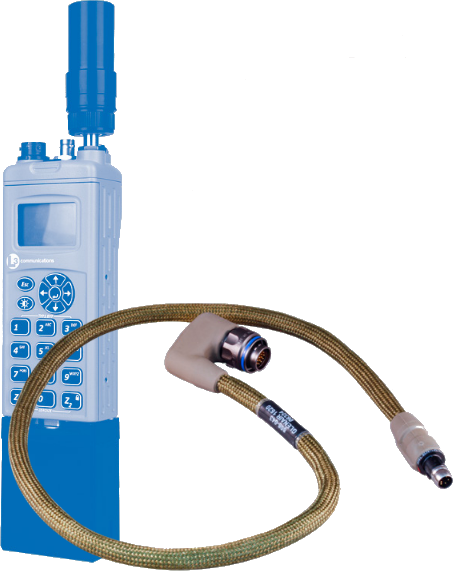

	808-043 TacROVER-P SIR 2.5 Video Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Nomex® braid, olive drab Overmolded, ergonomic connector strain reliefs, desert tan. Mighty Mouse 807 (NATO standard) connectors and P2 peripheral device connector Weight, 24" cable: 70g Export classification: 3A611.x

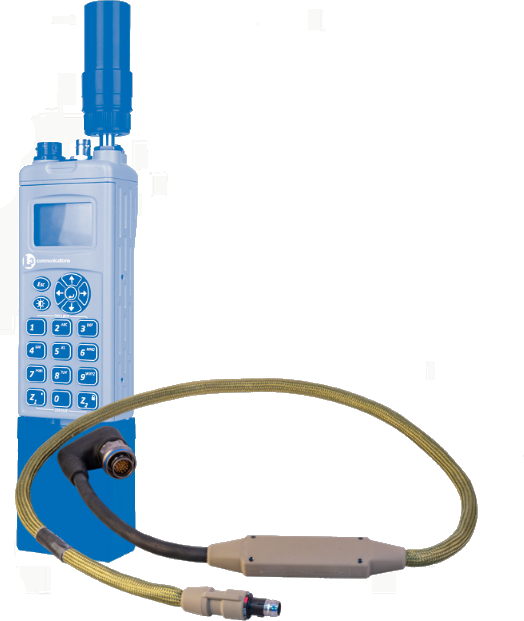

	808-082 TacROVER-E SIR 2.5 Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Nomex® braid, olive drab and Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs. Mighty Mouse 807 (NATO standard) connectors and P2 peripheral device connector Weight: 93g Export classification: 3A611.x

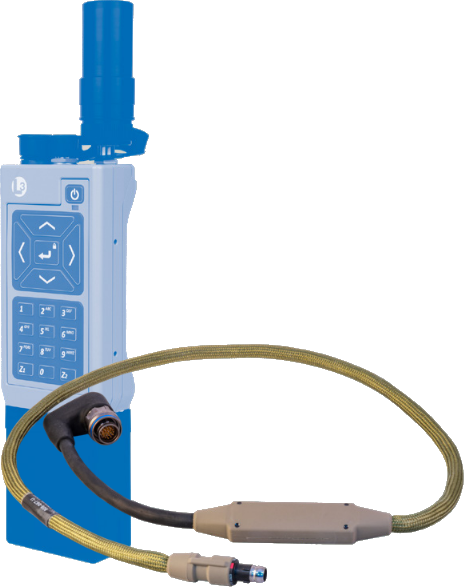

	808-067 TacROVER-P SIR 2.5 Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Provides power to device Nomex® braid, olive drab and Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs. Mighty Mouse 807 (NATO standard) connectors and P2 peripheral device connector Weight, 33" cable: 106g Export classification: 3A611.x

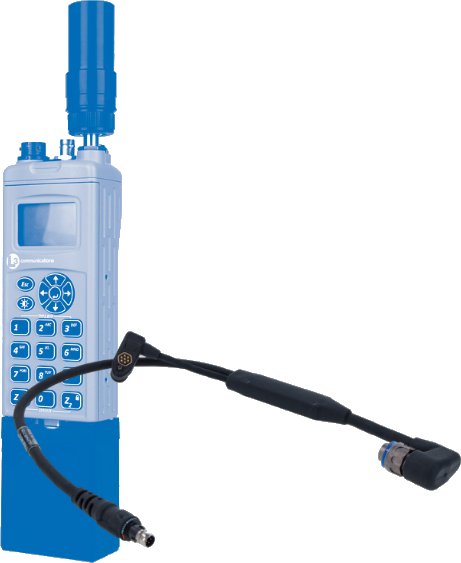

	TS8-463-U TacROVER-E SIR 2.5 Cable ("U" Bend) (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Provides power to device Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs. Mighty Mouse 807 (NATO standard) connectors and P3 peripheral device connector For use with TS3-022 Weight: 99g Export classification: ECCN 3A611.x

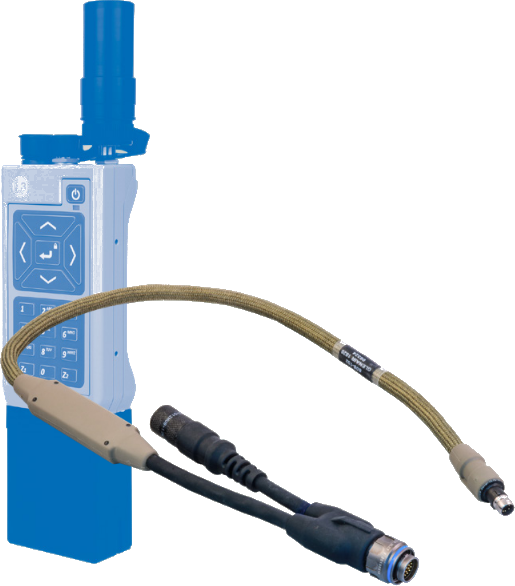

	808-152 TacROVER-P SIR 2.5 with TAC-EYE Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Provides power to device Nomex® braid, olive drab and Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs, desert tan. Mighty Mouse 807 (NATO standard) connectors and P2 peripheral device connector Weight, 24" cable: 108g Export classification: ECCN 3A611.x Composite video to TAC-EYE

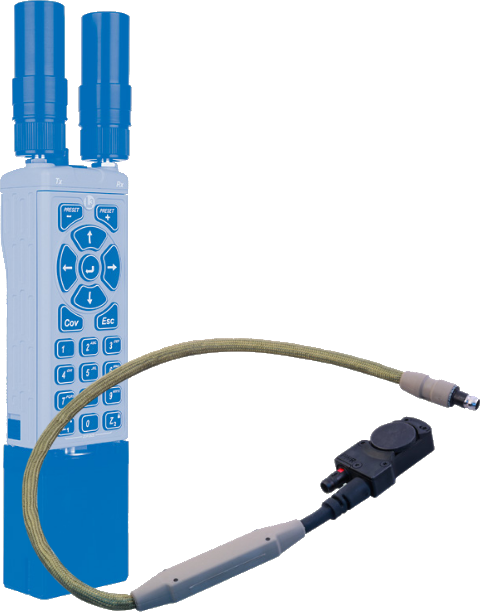

	TS8-530 Tactical Net Rover Cable TS8-530 (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Nomex® braid, olive drab and Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs, desert tan. Aluminum housing, black zinc-nickel finish Black stainless steel thumbscrew Mighty Mouse 807 (NATO standard) connectors. For use with TS3-022 and TS1-037 Weight, 24" cable: 112g Export classification: ECCN 3A611.x With Radio Power Boost (RPB)

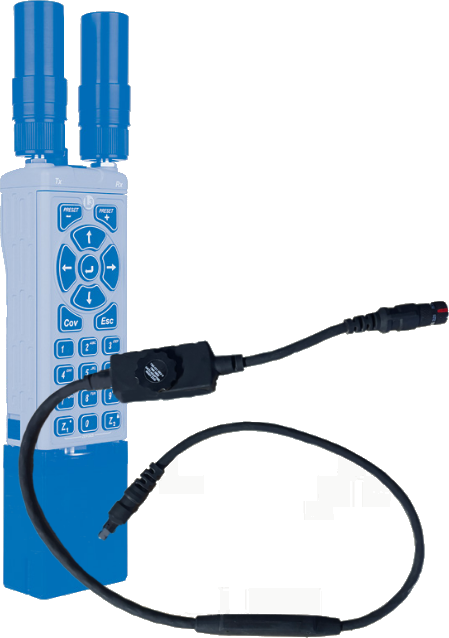

	TS8-531 Tactical Net Rover cable with RPB and TAC-EYE Adapter (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs, black. Aluminum housing, black zinc-nickel finish Black stainless steel thumbscrew Mighty Mouse 807 (NATO standard) connectors. For use with TS3-022 and TS1-037 Weight, 24" cable, (consult factory) Export classification: ECCN 3A611.x

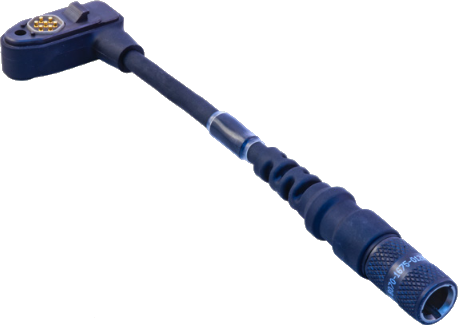

	TS1-037 Cable for use with 808-151, 808-171, TS8-404 TNR cables (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of 808-151 and TS8-404 TNR cables Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs, black. Aluminum housing, black zinc-nickel finish Black stainless steel thumbscrew Weight: 26g Mighty Mouse 807 (NATO standard) connector.

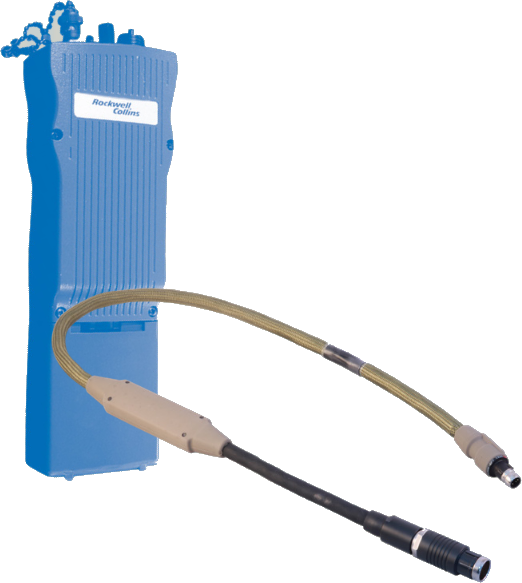

	808-224 StrikeHawk Digital Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Nomex® braid, olive drab and Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs, desert tan. Mighty Mouse 807 (NATO standard) connector and P2 peripheral device connector. Weight, 24" cable: 100g Export classification: ECCN 3A611.x
	TS8-424 Remote Secure Receiver-to-PAN Port Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs, black. Mighty Mouse 807 (NATO standard) connector and P1 RSR peripheral connectors Weight: 74g Export classification: ECCN 3A611.x

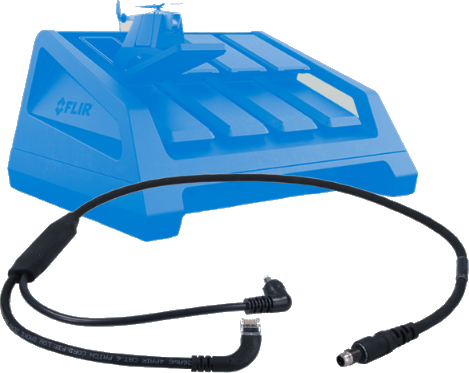

	TS8-467 Teledyne FLIR BH3 Hangar cable, Power and Data (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs Integrated Ethernet to USB conversion circuitry Santoprene jacketed cable, black Overmolded, ergonomic connector strain reliefs, black. Aluminum housing, black zinc-nickel finish Black stainless steel thumbscrew Mighty Mouse 807 (NATO standard) connector and P1/P2 peripheral connectors Weight: 101g Export classification: ECCN 3A611.x

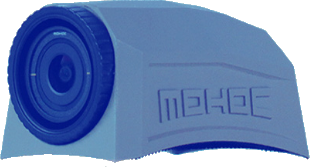

	TS3-072 MOHOC IP Camera Cable (NG Compatible) STAR-PAN+ with NG compatibility For interconnection of C4ISR peripheral to STAR-PAN power / data hubs TPE jacketed cable, black Overmolded, ergonomic connector strain reliefs, black. Mighty Mouse 807 (NATO standard) connectors Weight: 76g Export classification: ECCN 3A611.x
