STAR-PAN™ NG General-Purpose Cables

Basic Range of Hub-to-EUD, Radio-to-PAN, and Core Battery Hookup Cables Used in Virtually Every STAR-PAN Configuration

Reference

• Product Selection Guide

STAR-PAN™ NG > General-Purpose Cables

---

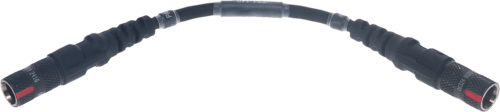

	TS1-047 Receptacle Back-to-Back Cable Assembly Olive drab Nomex® braided, or black or tan Santoprene jacketed cable Mighty Mouse 807 (NATO standard) plug and receptacle connectors This cable is programmed with an identifier PID Weight: 41g Export classification: EAR99

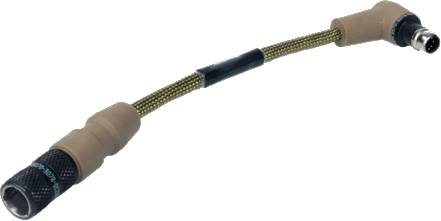

	TS1-070 Plug Extension Cable Olive drab Nomex® braided cable Overmolded, ergonomic connector strain reliefs, desert tan Mighty Mouse 807 (NATO standard) right-angle plug and receptacle connectors Weight: 22g Export classification: EAR99

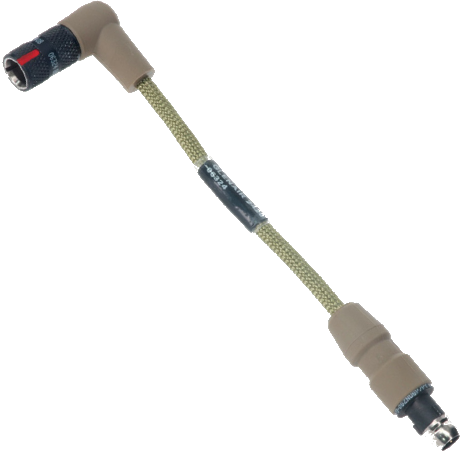

	TS1-072 Receptacle Extension Cable Olive drab Nomex® braided cable TPE Overmolded, ergonomic connector strain reliefs, desert tan Mighty Mouse 807 (NATO standard) plug and right-angle receptacle connectors Weight: 22g Export classification: EAR99

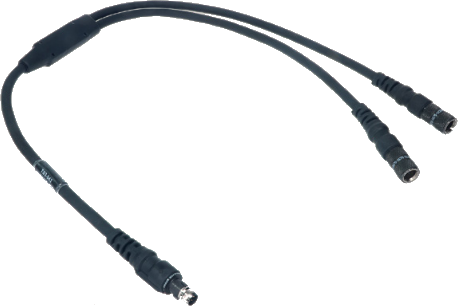

	TS3-043 NG Hub Split Cable Black jacketed and overmolded cable Mighty Mouse 807 (NATO standard) plug and two receptacle connectors Export classification: EAR99

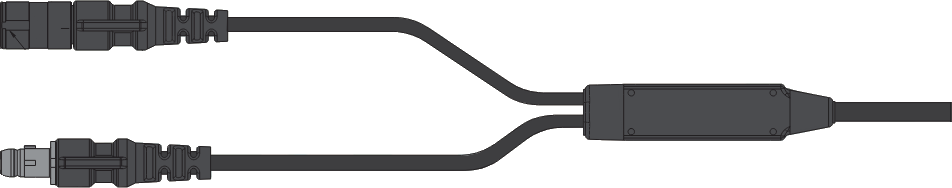

	TS3-044 NG Hub Split Cable Black jacketed and overmolded cable Mighty Mouse 807 (NATO standard) plug and plug/receptacle connectors Export classification: EAR99

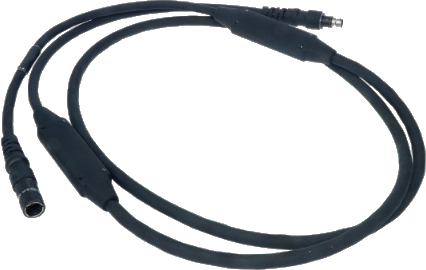

	TS3-059 Cable Assembly, NG PAN to UPP Cable Black jacketed and overmolded cable Mighty Mouse 807 (NATO standard) plug and receptacle connectors This cable is programmed with an identifier PID. Emarker has rd resistor of 5.1 K ohms. Weight: 181g Export classification: EAR99

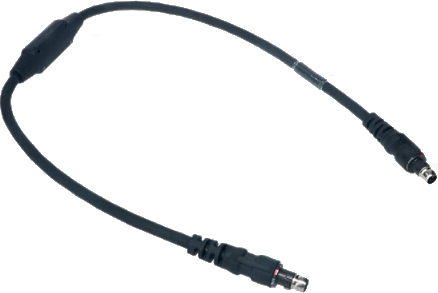

	TS3-048 NG PAN to UPP Cable Adapter Black jacketed and overmolded cable Mighty Mouse 807 (NATO standard) plug connectors This cable is programmed with an identifier PID. Weight: 69g Export classification: EAR99
