LRM / Backplane Brush Contact Connectors

Compliant Pin Brush Contact Connectors for Legacy and New Design LRM Module-to-Backplane Applications

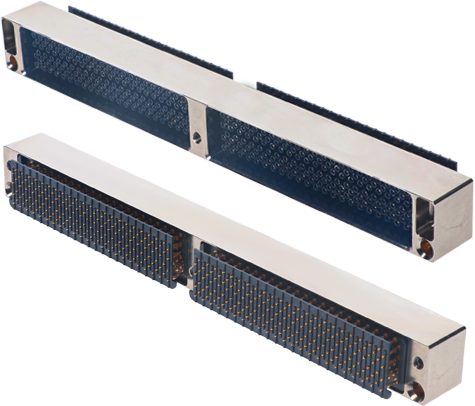

Glenair Line Replaceable Module (LRM) connectors are drop-in solutions for military and commercial avionics, missile systems, C4ISR, and other harsh-environment LRM module-to-backplane interconnect applications. Available in single bay, dual bay, and triple bay packaging, Glenair LRM brush contact connectors support both standard SEM-E size modules as well as custom design requirements. Fully qualified and intermateable with Amphenol Staggered Grid LRM products, the Glenair LRM solution introduces important performance improvements including precision-machined, gold-plate over nickel compliant pins and zero-FOD / zero electrical discontinuity weld-in-place brush contacts. Digital signal LRM module and backplane blind-mate connectors as well as mixed contact support for power, GPPO coax (SMPM), fiber optic (MT) inserts, and 270VDC power inputs available.

• Low mating and unmating forces
• High mating cycles
• Compliant pin board terminations on PC tails
• Single, dual, and triple-bay staggered-grid layouts: digital signal, power, RF, MT optical, and 270VDC contact
• Mechanical features include polarization keys, ESD shrouds, straddle-mount lead frames, and guide/ground pins

Reference

• Overview: LRM / Backplane Brush Contact Connectors
• LRM Module Exploded ViewAbout Glenair LRM and Backplane Connectors, and Brush Contacts
• SEM-E Standard Module (surface-mount) and Board (compliant pin) Connectors — Brush Contact Module Performance Specifications
• Insert Arrangements: High-Density, Staggered-Grid

	BR1-001 Staggered-Grid, Single-Bay, Standard Width LRM Module Connector
	BR1-002 Staggered-Grid, Single-Bay, Standard Width LRM Backplane Connector

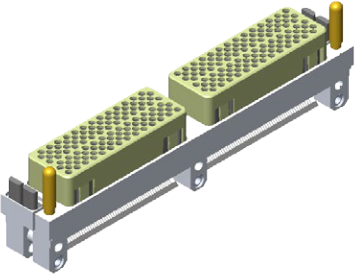

	BR1-003 Staggered-Grid, Dual-Bay, Standard Width LRM Backplane Connector

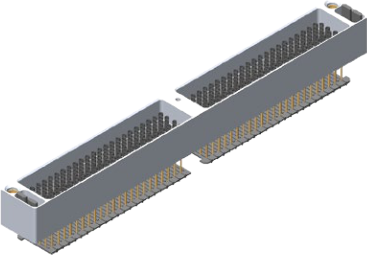

	BR1-004 Staggered-Grid, Dual-Bay, Standard Width LRM Module Connector

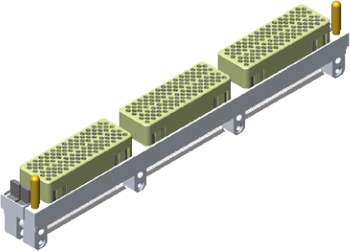

	BR1-005 Staggered-Grid, Triple-Bay, Standard Width LRM Module Connector

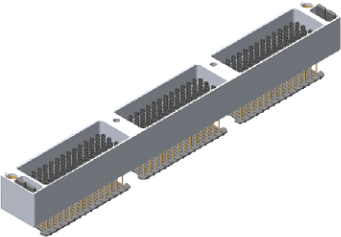

	BR1-006 Staggered-Grid, Triple-Bay, Standard Width LRM Backplane Connector

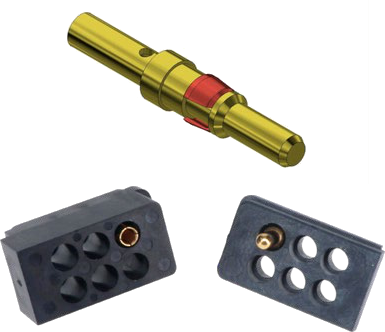

	Layouts for Mixed Insert Assemblies RF Modules with Staggered-Grid Digital and GPPO (SMPM) RF Contacts Mixed insert assemblies are available with up to 22 GPPO (SMPM) high-frequency RF connectors. Two basic configurations are supplied: male and female cable connectors for use with .086 semi-rigid cable, as well as male and female module and backplane blind-mate connectors for direct termination to printed wiring board assemblies. Glenair is also able to supply fully-terminated sealed cable assemblies with Glenair 50 Ohm low-loss BluMark RF cable. MT Fiber Optic Mixed Insert arragements are available with 108 digital brush contacts and dual MT ferrules supporting up to 48 lines of fiber. Size #12 Non-Magnetic Power Contact Non-Magnetic size 12 power contact for custom and LRM housings straight plug connector, crimp termination 16, 18, 20 AWG stranded wire. PIS (Power Input Supply) Modules - 270 VDC 270 VDC module provides corona-free operation at 75,000 ft. Available with size 22 and size 16 contacts. High current, up to 40 AMP, module with size 8 crimp contacts.
