Box, Wall, and Solder Mount Glass-Seal Hermetics for High-Pressure/Low-Leak Applications — Plus Special Crimp Contact and Lightweight CODE RED Hermetic Solutions all IAW MIL-DTL-38999 Series III and Series I Types

  • Available sealing (helium leak rate) from <1×10-7 cc/sec to 1×10-10
  • No material breakdown or aging over time
  • Matched and compression seal glass-to-metal technologies
  • Pressure resistance to 32,000+ PSI
  • Available CODE RED lightweight aluminum hermetics with low-resistance copper contacts
  • DSCC qualified MIL-DTL-38999 Series III glass-sealed hermetics in both pin and socket configurations

Reference

Related Catalog

SuperNine > Hermetic Connectors

On this page...

SuperNine Series III Glass-Seal Hermetic Connectors

  • MIL-DTL-38999 Series III Type
Wall & Weld Mount Receptacle with Removable Crimp Contacts, 233-265

233-265
Wall & Weld Mount Receptacle with Removable Crimp Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

MIL-DTL-38999 Series III Type SuperNine hermetic receptacles withstand the pressure differentials between internal and external environments without compromising their integrity. Removable crimp contacts provide quick and easy connection to the connector. Hermetic sealing of 1 x 10-7 atm cc/s ensures protection against moisture and contaminants, making them ideal for aerospace and defense applications to guarantee reliability in extreme environments, ensuring optimal performance in critical applications. Available in 2 shell styles with accessory threads or integral banding porch options. Rated for temperatures from -55°C to +125°C, they meet stringent military specifications, providing exceptional resistance to shock (up to 100g), vibration (up to 20g), and corrosion (salt spray per ASTM B117).

  • 233-265-H2
    Wall Mount with Accessory Threads
  • 233-265-BH2
    Wall Mount with Integral Banding Porch
  • 233-265-H8
    Weld Mount with Accessory Threads
  • 233-265-BH8
    Weld Mount with Banding Porch
Jam Nut Mount Receptacles with Removable Crimp Contacts, 233-265

233-265
Jam Nut Mount Receptacles with Removable Crimp Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

MIL-DTL-38999 Series III Type SuperNine single and dual O-ring hermetic receptacles withstand the pressure differentials between internal and external environments without compromising their integrity. Hermetic sealing of 1 x 10-7 atm cc/s ensures protection against moisture and contaminants, making them ideal for aerospace and defense applications to guarantee reliability in extreme environments, ensuring optimal performance in critical applications. Available with accessory threads or banding porch options and pin or socket shielded contacts. Rated for temperatures from -55°C to +125°C, they meet stringent military specifications, providing exceptional resistance to shock (up to 100g), vibration (up to 20g), and corrosion (salt spray per ASTM B117).

  • 233-265-H7
    Accessory Threads
  • 233-265-BH7
    Integral Banding Porch
  • 233-265-DH7
    Dual O-ring w/ Accessory Threads
  • 233-265-DBH7
    Dual O-ring w/ Banding Porch
Hermetic Jam-Nut and Box Mount Receptacles with Accessory Thread or Banding Porch, 233-266

233-266
Hermetic Jam-Nut and Box Mount Receptacles with Accessory Thread or Banding Porch

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors
1000 PSI Rated, Piston Sealed Receptacle, 2333-2001

2333-2001
1000 PSI Rated, Piston Sealed Receptacle

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 2333-2001-H2
    Piston Sealed Box Mount Receptacle
  • 2333-2001-H5
    Piston Sealed Solder Mount Receptacle
  • 2333-2001-H7
    Piston Sealed Jam-Nut Mount Receptacle
  • 2333-2001-H8
    Piston Sealed Weld Mount Receptacle
Cryogenic Hermetic Receptacle, 2333-2003

2333-2003
Cryogenic Hermetic Receptacle

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • H2 – Box Mount Receptacle
  • H5 – Solder Mount Receptacle
  • H7 – Jam-Nut Mount Receptacle
  • H8 – Weld Mount Receptacle
Cryogenic Hermetic Feedthrough, 2333-2010

2333-2010
Cryogenic Hermetic Feedthrough

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • H2 – Box Mount Receptacle
  • H7 – Jam-Nut Mount Receptacle
  • DH7- Dual O-Ring Jam-Nut Mount Receptacle
  • H8 – Weld Mount Receptacle
High-Pressure Hermetic Bulkhead Feedthrough, 2333-2011

2333-2011
High-Pressure Hermetic Bulkhead Feedthrough

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors
Hermetic 1000 PSI Rated Piston Seal Solder Cup Receptacle, 233-277

233-277
Hermetic 1000 PSI Rated Piston Seal Solder Cup Receptacle

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-277-H7 or -BH7 Jam-Nut Receptacle with Accessory Threads or Banding Porch
Hermetic 1000 PSI Rated Piston Seal Crimp Removable Receptacle, 233-278

233-278
Hermetic 1000 PSI Rated Piston Seal Crimp Removable Receptacle

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-278-H7 or -BH7 Jam-Nut Receptacle with Accessory Threads or Banding Porch
Hermetic Bulkhead Feed-Thru with 10G High-Speed Contacts, 233-263

233-263
Hermetic Bulkhead Feed-Thru with 10G High-Speed Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • H2 - Square Flange Mount Bulkhead Feed-Thru
  • H8 - Weld Mount Bulkhead Feed-Thru
  • H7 - Jam-Nut Mount Bulkhead Feed-Thru
Hermetic PC Tail Receptacles with Shielded Contacts, 233-262

233-262
Hermetic PC Tail Receptacles with Shielded Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-262 High-Speed / RF Shielded Contact, PCB Footprints
  • 233-262-H2 Box Mount Receptacle
  • 233-262-H7 Jam-Nut Mount Receptacle
  • 233-262-DH7 Jam-Nut Mount Dual O-Ring Receptacle
  • 233-262-H8 Weld Mount Receptacle, D38999/21 Type
Hermetic PC Tail Receptacles with Threaded Stand-Off, 233-267

233-267
Hermetic PC Tail Receptacles with Threaded Stand-Off

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-267-H2 Box Mount Receptacle
  • 233-267-H7 Jam-Nut Receptacle
  • 233-267-DH7 Dual O-Ring Jam-Nut Receptacle
Hermetic Dual Flange Receptacles, High-Speed PCB Contacts, 233-268

233-268
Hermetic Dual Flange Receptacles, High-Speed PCB Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-268-H2 Box Mount Receptacle
  • 233-268-H7 and 233-268-DH7 Jam-Nut Mount Receptacle
  • 233-268-H7 Jam-Nut Mount Receptacle
  • 233-268-DH7 Dual O-Ring, Jam-Nut Mount Receptacle
Hermetic Receptacle with Thermocouple Contacts, 233-271

233-271
Hermetic Receptacle with Thermocouple Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-271-H2 Flange Mount Receptacle Connector
  • 233-271-H5 Solder Mount Receptacle Connector
  • 233-271-H7 Jam-Nut Mount Receptacle Connector
  • 233-271-H8 Weld Mount Receptacle Connector
Hermetic Bulkhead Feed-Thrus, 233-103-H2 and 233-103-H8

233-103-H2 and 233-103-H8
Hermetic Bulkhead Feed-Thrus

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-103-H2 Box Mount Receptacle
  • 233-103-H8 Weld Mount Receptacle
Hermetic Bulkhead Feed-Thrus, 233-103-H7 and 233-103-DH7

233-103-H7 and 233-103-DH7
Hermetic Bulkhead Feed-Thrus

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-103-H7 Jam-Nut Mount
  • 233-103-DH7 Dual O-Ring Jam-Nut Receptacle
Hermetic Bulkhead Feed-Thru with Shielded Contacts, 233-261

233-261-H2 and 233-261-H8
Hermetic Bulkhead Feed-Thru with Shielded Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-261-H2 Box Mount Feed-Thru Connector
  • 233-261-H8 Weld Mount Feed-Thru Connector
Hermetic Bulkhead Feed-Thru with Shielded Contacts, 233-261-H7 and 233-261-DH7

233-261-H7 and 233-261-DH7
Hermetic Bulkhead Feed-Thru with Shielded Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-261-H7 Jam-Nut Mount Feed-Thru Connector
  • 233-261-DH7 Dual O-Ring Jam-Nut Mount Feed-Thru Connector
Hermetic Bulkhead Feed-Thru with Thermocouple Contacts, 233-284

233-284
Hermetic Bulkhead Feed-Thru with Thermocouple Contacts

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • 233-284-H2
    Dual O-Ring, Jam-Nut Feed-Thru Connector
  • 233-284-H7
    Jam-Nut Feed-Thru Connector
  • 233-284-DH7
    Dual O-Ring, Jam-Nut Feed-Thru Connector
  • 233-284-H8
    Weld Mount Feed-Thru Connector
Hermetic Bulkhead SAV-CON Feed-Thru, 233-103-H9

233-103-H9
Hermetic Bulkhead SAV-CON Feed-Thru

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

  • Jam-Nut Mount Gender Changer

SuperNine Series III Lightweight Hermetic Connectors with CODE RED Encapsulant

  • MIL-DTL-38999 Series III Type
  • CODE RED

"Mission-Critical" Hermetic Sealing with 1x10-7 Leak-Rate Performance

Hermetically-sealed interconnects used in vacuum or high-altitude applications prevent moisture and other contaminants from damaging sensitive electronic equipment. Glass-to-metal hermetic sealing has been the gold standard in the aerospace and petrochemical industries for decades due to the strength and long-term durability of the materials used. But glass-to-metal seal hermetics come with a big price tag in both weight and electrical resistance.

CODE RED is an innovative sealing encapsulant and application process — invented by Glenair — that provides durable hermetic sealing in a lightweight aluminum package. CODE RED allows for the use of conventional gold-plated copper alloy contacts, significantly improving electrical performance. CODE RED hermetic connectors are available now in Glenair SuperNine® (D38999 Series III type), Series 80 Mighty Mouse, and M24308 D-Sub. These connectors deliver reliable, life-of-system 1x10-7 max leak-rate hermetic sealing and special non-magnetic (zero residual magnetism) versions are also available, consult factory.

Reference

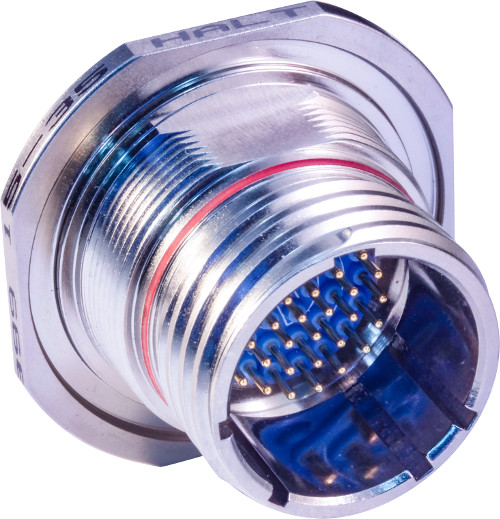

Wall Mount or Jam-Nut Mount Receptacle, PC Tails or Solder Cup, 233-250

233-250
Wall Mount or Jam-Nut Mount Receptacle, PC Tails or Solder Cup

  • MIL-DTL-38999 Series III Type
  • CODE RED
Hermetic Jam-Nut Mount, Bulkhead Feed-Thru, 233-251

233-251
Hermetic Jam-Nut Mount, Bulkhead Feed-Thru

  • MIL-DTL-38999 Series III Type
  • CODE RED

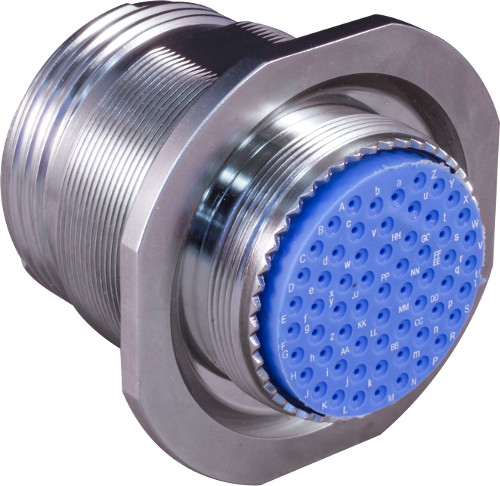

Hermetic Jam-Nut Mount, Crimp Removable Contact, 233-252

233-252
Hermetic Jam-Nut Mount, Crimp Removable Contact

  • MIL-DTL-38999 Series III Type
  • CODE RED

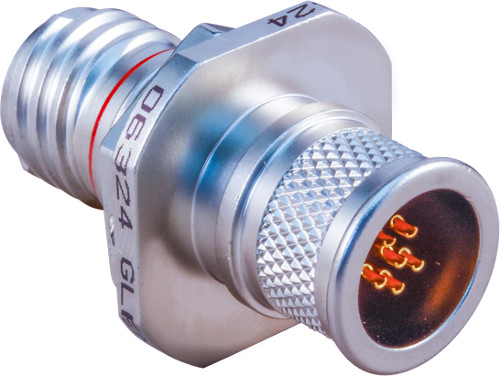

Hermetic Jam-Nut Mount with Solder Cup and Banding Porch, 233-253

233-253
Hermetic Jam-Nut Mount with Solder Cup and Banding Porch

  • MIL-DTL-38999 Series III Type
  • CODE RED

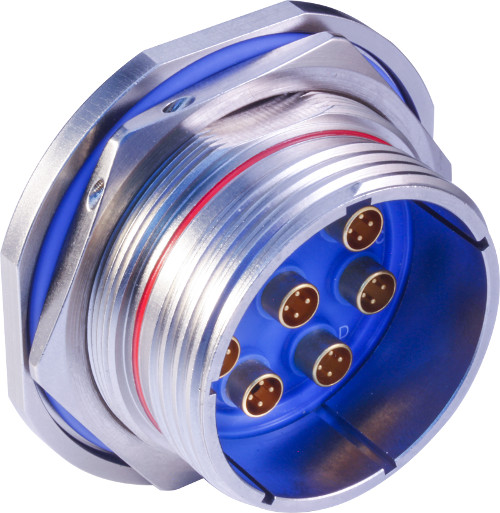

Hermetic Jam-Nut Mount with PC Tail Quadrax Contacts, 233-254

233-254
Hermetic Jam-Nut Mount with PC Tail Quadrax Contacts

  • MIL-DTL-38999 Series III Type
  • CODE RED

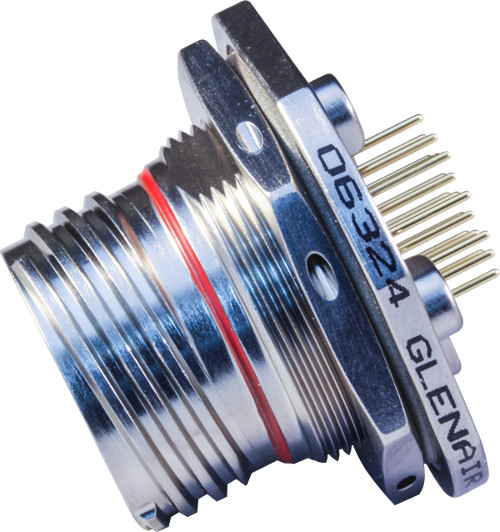

Hermetic Jam-Nut Mount, PC Tail with Threaded Standoffs, 233-255

233-255
Hermetic Jam-Nut Mount, PC Tail with Threaded Standoffs

  • MIL-DTL-38999 Series III Type
  • CODE RED

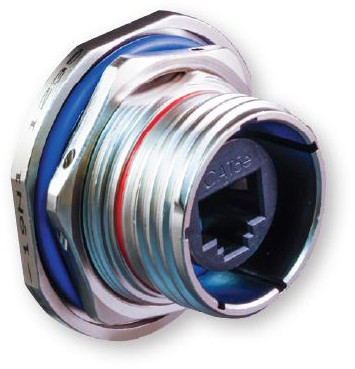

Connector Receptacle, RJ45 to Solder Cup Termination, 2330-0131

2330-0131
Connector Receptacle, RJ45 to Solder Cup Termination

  • 2330-0131-00
    Wall Mount Receptacle with Slotted Holes
  • 2330-0131-D0
    Wall Mount Receptacle with Round Holes
  • 2330-0131-07
    Jam Nut Mount Receptacle
  • RJ45
    Orientation Options
  • MIL-DTL-38999 Series III Type
  • CODE RED

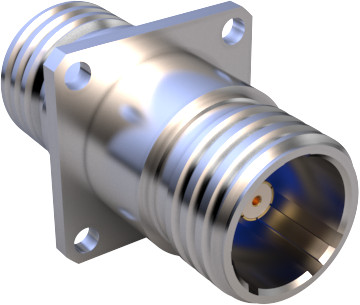

Light Weight Hermetic Bulkhead Feedthru Connector with BMB RF Contacts, 2333-20002

2333-2002
Light Weight Hermetic Bulkhead Feedthru Connector with BMB RF Contacts

  • 2333-2002-07
    Jam-nut Mount Receptacle
  • 2333-2002-D0
    Wall Mount with Round Holes
  • MIL-DTL-38999 Series III Type
  • CODE RED
Jam-Nut Mount Receptacle, 233-256

233-256
Jam-Nut Mount Receptacle

  • MIL-DTL-38999 Series III Type
  • CODE RED

SuperNine Series I CODE RED Lightweight Hermetic Receptacle

  • MIL-DTL-38999 Series I Type
  • CODE RED

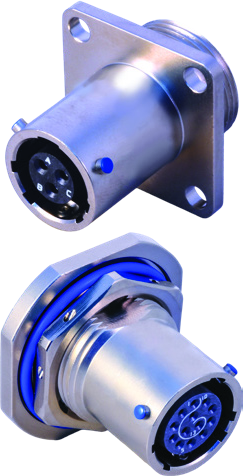

CODE RED Lightweight Hermetic Receptacle, 231-250

231-250
CODE RED Lightweight Hermetic Receptacle

  • 231-250-07
    Jam Nut Mount Receptacle
  • 231-250-D0
    Wall Mount Front Panel Receptacle with Standard Holes
  • 231-250-E0
    Wall Mount Back Panel Receptacle with Standard Holes (MS27656T)

Connector Features

  • Bayonet coupling for rapid mating
  • Scoop proof technology
  • MIL-STD-1560 insert arrangements
  • Same EMI performance as D38999 Series III
  • Quick turn, positive lock, full mate indicator
  • 500 cycles per D38999
  • Enhanced finishes like Passivated stainless steel and Electrodeposited Nickel over stainless steel
  • Available in jam nut, solder and box mount
  • Meets 1 x 10-7 cc/sec He leak requirement
  • Hi-reliability stainless steel bayonets utilized
