AS83519 and AS81824 type plus Glenair ArmorLite Configurations
Series 07

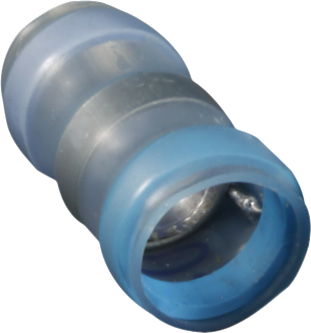

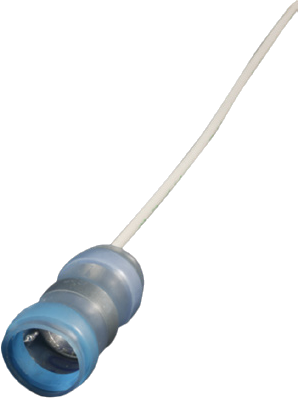

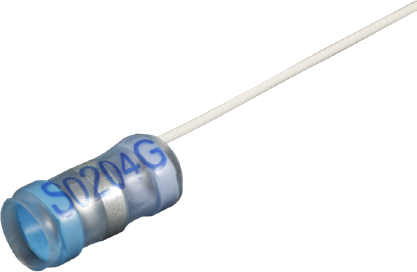

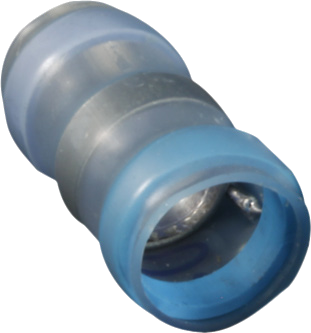

Reliable termination of EMI/RFI shielding (to ground) in wire harness applications is universally accomplished with AS83519/1 and /2 type heat shrink termination (HST) sleeves. These devices, supplied in five different sizes — with or without pre-installed ground lead wires — provide environmental encapsulation and insulation of the shield termination site. Lead-wire-equipped versions allow for easy and reliable grounding to connector shells, backshells, or ground posts. Transparent heat shrink tubing allows for easy inspection and supplies additional strength and strain-relief. The preflux solder preform delivers a fast and controlled solder joint each and every time. For weight saving applications, select Glenair signature series HSTs with lightweight ArmorLite or AmberStrand braided lead wires.
- Heat shrink termination sleeves, with and without lead wire
- Ultra-fast recovery for reduced assembly time

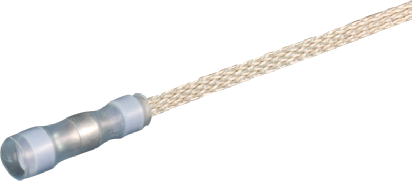

- Pre-installed, pre-tinned braid version available

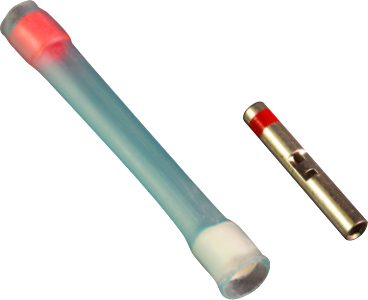

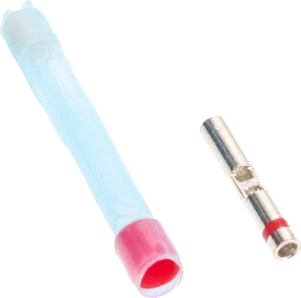

- Mil-qualified 81824/1 in-line-splices
- High availability: all Glenair HSTs made in USA and in-stock for immediate, same day shipment
Reference
- Overview: HST Sleeves and In-Line Splices
- Configurations
- Assembly Instructions
- HST Installation Instructions
- HST X-Ref
