Time- and labor-saving crimp-contact micro miniature rectangular connectors: Smallest form-factor Series 79, advanced-performance scoop-proof Series 791, and Series 792 for high-speed wire-to-board applications.

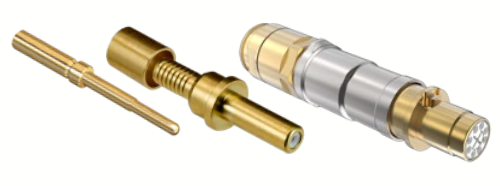

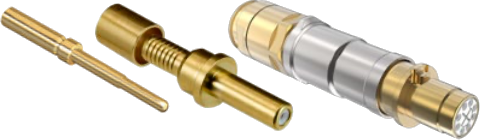

The Series 79 Micro-Crimp family of connectors features crimp, rear-release size #23 contacts on .075 inch (1.9 mm) spacing, size #12 and #16 power and coaxial crimp contacts, plus El Ochito® and Quadrax contacts for high-speed data link applications. Super low-profile Series 79 features robust EMI performance and environmental sealing. Next-generation Series 791 adds dual-lobe polarization, scoop-proof shells, and integrated EMI grounding fingers, and is qualified for manned space flight applications. Series 792 is purpose-designed for 10G Ethernet, USB 3.0, HDMI, SATA, and DisplayPort high-speed applications, and accommodates Glenair Signature El Ochito® octaxial contacts as well as industry-standard quadrax..

Slideshow Presentation

Micro-Crimp Connectors and Accessories / Series 79

Micro-Crimp Connectors and Accessories / Series 79

The High-Performance, Ultra Low-Profile Crimp Contact Rectangular with Advanced EMC and Environmental Performance.
  • High-Density 0.075" spacing
  • Precision-machined shells
  • Integrated panel sealing and EMI ground spring
  • Shrouded straight- and right-angle PC tails
  • Guide posts for rack-and-panel applications

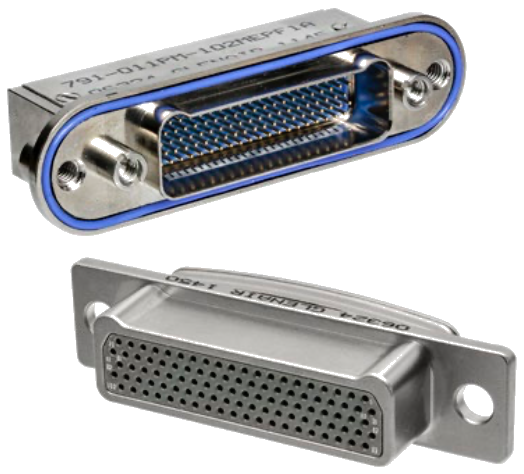

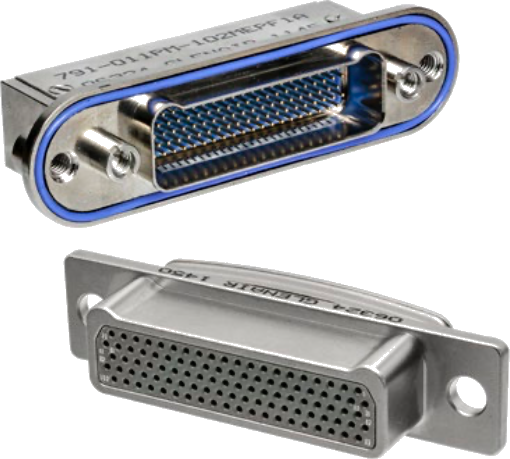

Next-Generation Micro-Crimp Rectangular Connectors / Series 791

Next-Generation Micro-Crimp Rectangular Connectors / Series 791

Scoop-Proof, Crimp Contact Micro Rectangular for Space and other Rugged Cable-to-Cable and Cable-to-I/O Applications.
  • Signal, Power, RF, and Datalink contact support
  • Dual-lobe polarization
  • Integrated band termination platform
  • Rugged EMI grounding fingers
  • Cable, rack-and-panel, and printed circuit board configurations

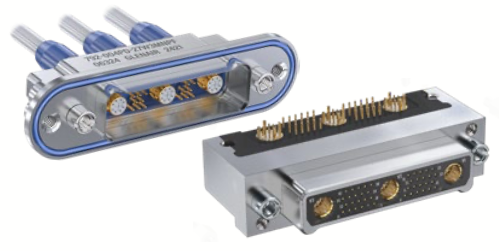

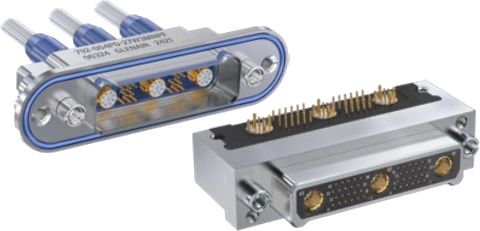

High-Speed Micro-Crimp Rectangular Connectors / Series 792

High-Speed Micro-Crimp Rectangular Connectors / Series 792

Hybrid Crimp-Contact and Shielded Datalink Contact Micro Rectangular Connectors for 10G Ethernet, USB 3.0, HDMI, SATA and other High-Speed Datalink Protocols
  • Optimized for El Ochito® octaxial and industry-standard quadrax contacts

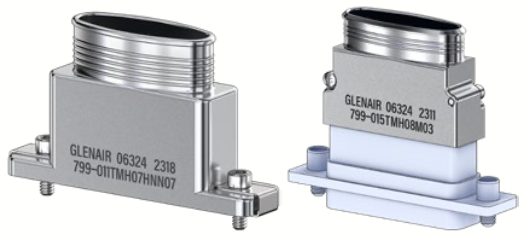

  • Special backshells for axial alignment of shielded modular contacts
  • Integrated band termination platform
  • Optional polarization keys
  • Support for blind-mate applications
