Space-Grade Micro-d Backshells and Accessory Hardware

Micro-D EMI backshells are used to ground cable shields for electromagnetic compatibility, and to provide strain relief and mechanical protection of wire-to-connector terminations. These backshells are made out of aluminum alloy or composite thermoplastic. Electroless nickel is the most widely used finish. These backshells are compatible with industry-standard metal shell M83513 type connectors.

Reference

• Product Selection Guide
• Application Notes

Space-Grade > Micro-D

---

On this page...

• Solid Shell Lightweight Aluminum EMI/RFI and Strain-Relief Backshells
• Composite Thermoplastic Micro-D Connector Backshells
• Solid Shell Lightweight Aluminum EMI/RFI Backshells, Elliptical Entry
• Split Shell Lightweight Aluminum EMI/RFI Backshell, Elliptical Entry
• Lightweight Aluminum Saddle-Bar Type Cable Clamp Strain Relief Backshells
• Other Micro-D Connector Accessories

Solid Shell Lightweight Aluminum EMI/RFI and Straing-Relief Backshells

	500-010 Banding porch platform for shield termination with Band-Master ATS® Standard or Micro bands. Round cable entry. Top, side, 45° or dual 45° entry options.
	507-142 Banding porch platform for shield termination with Band-Master ATS® Standard or Micro bands. Dual round cable entry.
	500-012 Qwik-Ty arm for cable strain relief. Round cable entry. Top, Side, or 45° entry options.

	507-088 High-strength, ultra lightweight composite thermoplastic. Electroless Nickel plated for EMI shielding effectiveness. Banding porch platform for shield termination with Band-Master ATS® Micro bands. Round cable entry. Top, Side, or 45° entry options.
	500-155 Elliptical Banding Platform with Qwik-Ty Option EMI/RFI for MIL-DTL-83513 Metal-Shell Connectors
	507-088 Metal-Shell Connectors EMI/RFI Banding Backshell for MIL-DTL-83513 Metal-Shell Connectors
	500-156 Backshell with Direct Qwik-Ty Option EMI/RFI for MIL-DTL-83513 Metal-Shell Connectors

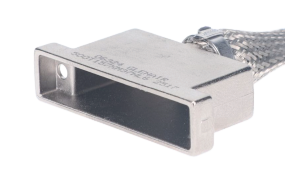

	500-157 Backshell with Shield Sock EMI/RFI for MIL-DTL-83513 Metal-Shell Connectors
	500-158 Shorting Can Backshell EMI/RFI for MIL-DTL-83513 Metal-Shell Connectors
	500-159 Potting Adapter Backshell EMI/RFI for MIL-DTL-83513 Metal-Shell Connectors

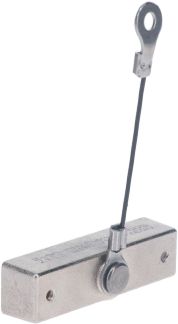

	500-164 Protective Cover For MIL-C-83513 Connectors

Solid Shell Lightweight ALuminum EMI/RFI Backshells, Elliptical Entry

	507-296 Banding porch platform for shield termination with Band-Master ATS® Micro bands. Elliptical cable entry. Top or Side entry options.
	507-297 Banding porch platform for shield termination with Band-Master ATS® Micro bands. Elliptical cable entry. 45° entry.

Split Shell Lightweight Aluminum EMI/RFI Backshell, Elliptical Entry

507-178 Split construction with screwlocks for easy assembly: connectors can be fully mated before hardware is fastened. Banding porch platform for shield termination with Band-Master ATS® bands. Elliptical cable entry.

Lightweight Aluminum Saddle-Bar Type Cable Clamp Strain Relief Blackshells

	507-198 Saddle bar clamp with silicone pads for easy installation of flat cable bundle
	507-146 Saddle bar clamp for easy installation of round cable bundle

Other Micro-D Connector Accessories

	500-016 Shorting can backshell for protection of stand-alone connectors. Lightweight aluminum with lanyard attachment options.
	507-035 Potting shell for easy encapsulation of solder-cup wire terminations. Lightweight aluminum.
	500-107 Lightweight aluminum protective cover for Micro-D plug or receptacle connectors with a variety of lanyard rope attachment options.
