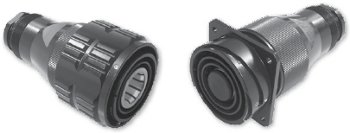

Reverse Bayonet Single Pole High Current/High Voltage Power Connector
ITS 500 Series derives from an important Military Specification for Power Connectors: VG96929.
Suitable for harsh environmental conditions, ITS 500 accepts cable gauges AWG 3/0 to 444MCM (95-240 mmq), for current up to 750 Amp. Special insulator drawing allows high working voltage, up to 3000 Vcc. Suitable for jacketed cables, with or without conduit protection. Receptacle with finger protection (Load side).
Reference
- Introduction
- Technical Characteristics
- Components Exploded View
- Available Configurations
- How to Order - Part Number Breakdown
- Security Instructions
ITS 500 00 Series
Front Panel Mount Square Flange Receptacle
Assembly for Jacketed Cables and Rubber Conduit
ITS 500 030 Series
Rear Panel Mount Square Flange Receptacle
Assembly for Jacketed Cables and Rubber Conduit
ITS 500 00 Series
Front Panel Mount Square Flange Receptacle
Assembly for Jacketed Cables and Plastic or Metallic Conduit
ITS 500 030 Series
Rear Panel Mount Square Flange Receptacle
Assembly for Jacketed Cables and Plastic or Metallic Conduit
ITS 500 06 Series
Straight Cylindrical Plug
Assembly for Jacketed Cables and Plastic or Metallic Conduit
