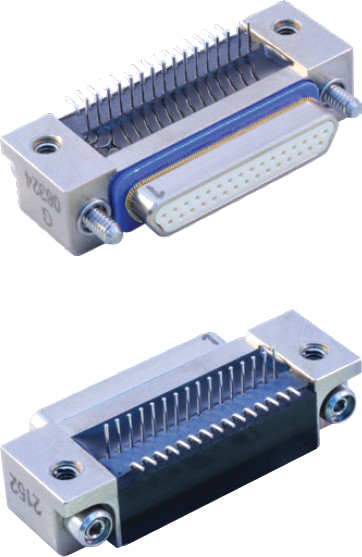

Glenair High-Speed Micro-D Connectors and Cables

Available in both prewired factory cordsets — with hybrid shielded twisted pair (STP) and standard hookup wire cabling — as well as PCB configurations, the High-Speed Micro-D utilizes #28 gauge wire and is rated at 1 amp per contact (instead of the usual 3 amp rating found in standard Micro connectors).

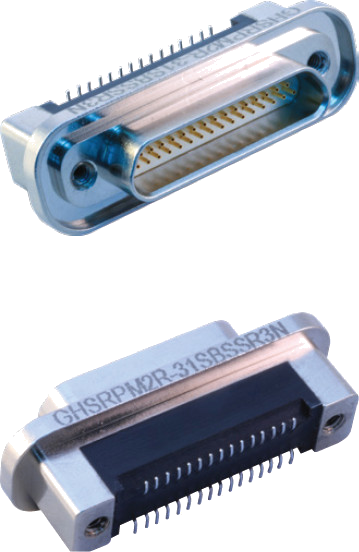

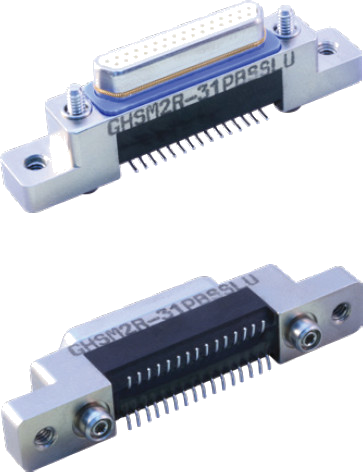

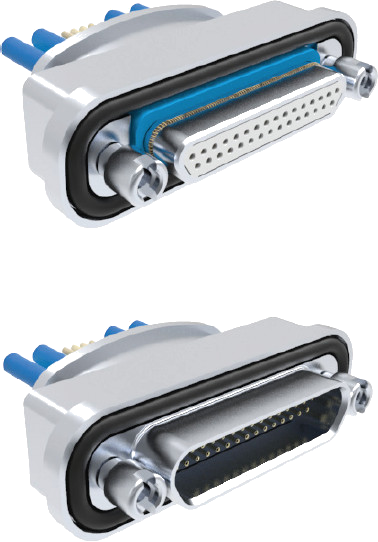

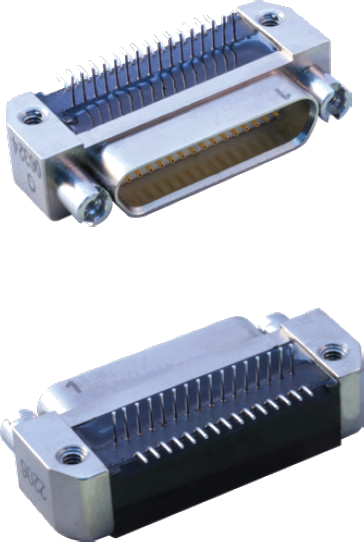

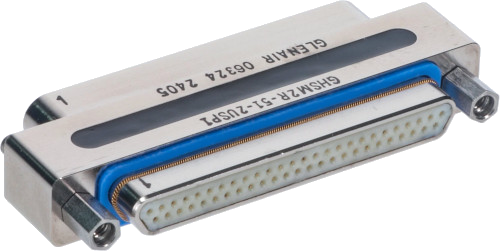

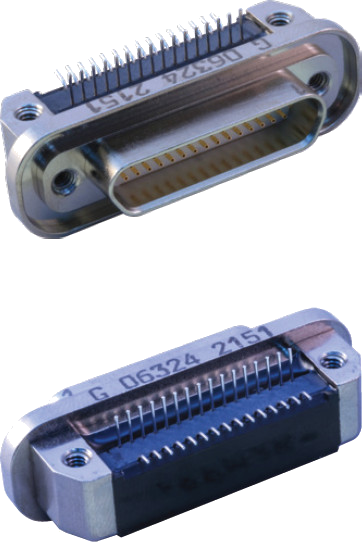

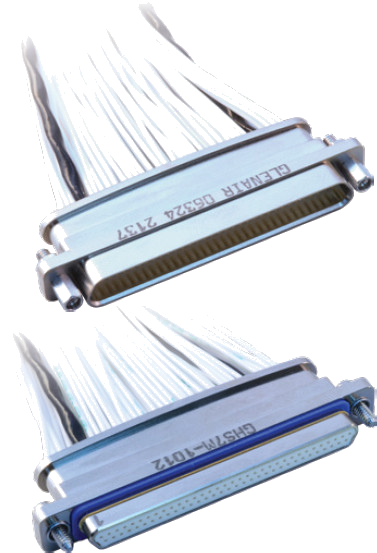

• Pre-wired factory pigtails, cordsets, and PCB connectors
• Unique contact isolation and spacing for optimal high-speed performance up to 15 Gbps
• Supports maximum #28 AWG wire
• Low-k dielectric insulator combined with optimized contact size and spacing

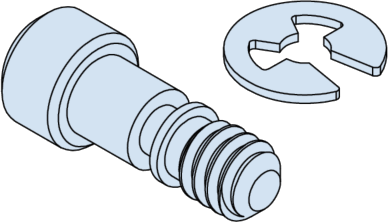

• Precision-machined shells with gold or nickel plating
• 1 Amp TwistPin contacts for optimal performance in harsh vibration, shock, and high-temperature environments

Like other next-generation rectangulars from Glenair, the High-Speed Micro-D incorporates an auxiliary EMI ground spring on the plug, further enhancing the signal integrity of this ultra-small form-factor connector. In fact, the High-Speed Micro-D's size is perhaps its most important advantage as it is now arguably the smallest and lightest aerospace-grade high-speed interconnect.

The downselect process begins with the identification of the target high-speed protocol. Each insert arrangement in the series is purpose-designed to meet the particular requirements of today's most popular high-speed datalink protocols. Prewired pigtail assemblies utilize shielded twisted pair cabling for the high-speed data pairs, and #28 gauge hookup wire for power and low-speed signal requirements. Ground wire terminations are also indicated for each insert arrangement. Consult Glenair Design & Installation of High-Speed Micro-D PCB Connectors Application Note for board layout and termination requirements.
