MIL-DTL-24308 Intermateable Advanced-Performance Crimp and PC Tail Environmental Connectors with Standard Density #20 Contacts and High-Density #22 Contacts
Glenair HiPer-D environmental connectors are intermatable with M24308/D-Sub style connectors featuring rugged one piece aluminum shells and optional EMI ground spring for improved signal integrity. Standard Density (#20) or High Density (#22) contacts are crimp terminated and rear releasable for easy replacement and offered on inline, rear panel mount and float mount connectors. Standard and low profile PC Board mount – straight and right angle – configurations are also available. 11 "standard" insert arrangements available. Mated connectors meet IP67 requirements.
Reference and Technical Data
HiPer-D > Standard and High Density Connectors
Pin connectors with standard M24308 type mounting flange, crimp termination
Socket connectors with standard M24308 type mounting flange, crimp termination
Panel mount pin connectors with O-ring mounting flange, crimp termination
Panel mount socket connectors with O-ring mounting flange, crimp termination
Float mount pin connectors for blind mating, crimp termination
Float mount socket connectors for blind mating, crimp termination

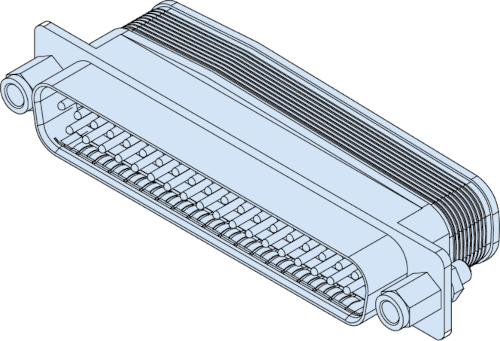

Combo Cable Pin Connectors with Standard Mounting Flange, Integral Banding Platform and Crimp Termination

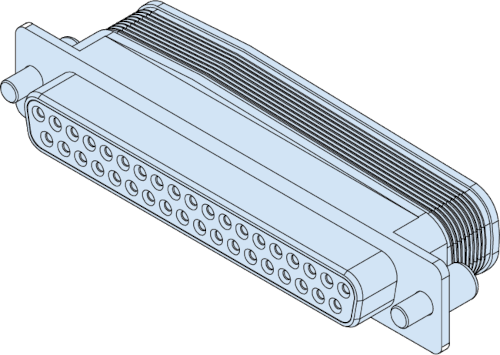

Combo Cable Socket Connectors with Standard Mounting Flange, Integral Banding Platform and Crimp Termination
Straight PC tail pin connectors with O-ring flange for rear panel mounting
Straight PC tail socket connectors with O-ring flange for rear panel mounting
Right angle PC tail pin connectors with O-ring flange for rear panel mounting
Right angle PC tail socket connectors with O-ring flange for rear panel mounting
Straight PC tail pin connectors with low profile mounting flange
Straight PC tail socket connectors with low profile mounting flange
Right angle PC tail pin connectors with low profile mounting flange
Right angle PC tail socket connectors with low profile mounting flange
