MIL-DTL-26482 Series I and II Type Hermetic Seal Connectors

Fast and Reliable Mating

Glenair MIL-DTL-26482 Series I and II Bayonet-Lock Connectors are ideally suited for vacuum chambers, pressurized bulkheads, and other military and commercial applications that utilize this general-purpose medium-density cylindrical connector and require helium leak test rates of less than 1x10-7 cc/second. The bayonet-lock mating mechanism provides fast and easy coupling, especially when the connector is situated in an awkward or hard to reach location. A wide range of available mounting styles — including both narrow and wide flange mounts — provide complete flexibility in interconnect system design. PCB and solder cup contacts allow easy integration and termination to I/O cabling and electronic sub-systems. Glenair MIL-DTL-26482 Type hermetics are interchangeable and intermateable with the wide range of industry-standard bayonet connectors designed around MIL-DTL-26482 and/or qualified to VG 95328, including ITT Cannon KPT.

MIL-DTL-26482 Type Hermetic Technical Information

• Insert Arrangements per MIL-DTL-1669
• Key/Keyway Positions

MIL-DTL-26482 Series I and II Type Hermetic Application Notes

• Special Leak Rate Mod Codes
• Space Grade Application Guide

Hermetic Connectors > MIL-DTL-26482

---

MIL-DTL-26482 Series I Type Hermetic

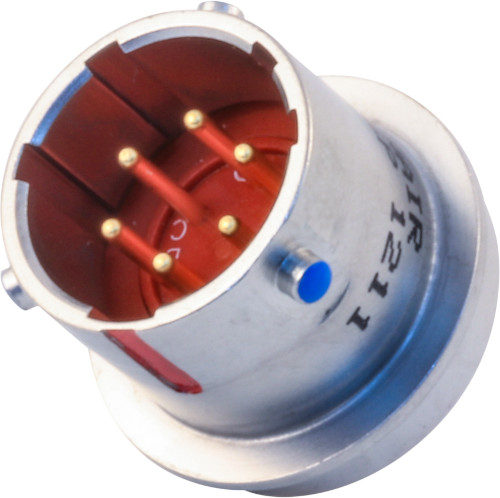

	230-014 Bayonet-Lock Solder-Mount Receptacle MIL-DTL-26482 Series I Type Hermetic MS3113 Type

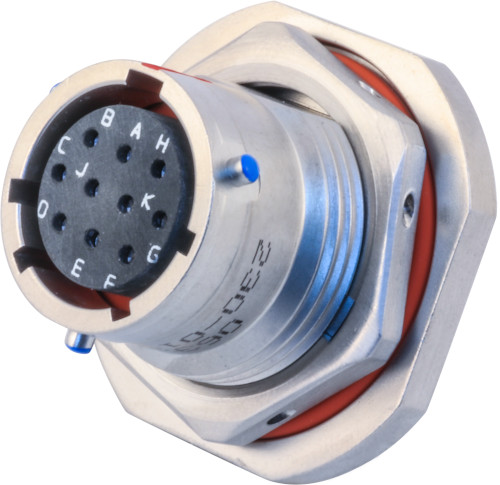

	230-015 Bayonet-Lock Jam Nut Receptacle MIL-DTL-26482 Series I Type Hermetic MS3114 Type
	230-035 Bayonet-Lock Narrow Flange Mount Receptacle MIL-DTL-26482 Series I Type Hermetic MS3112 Type

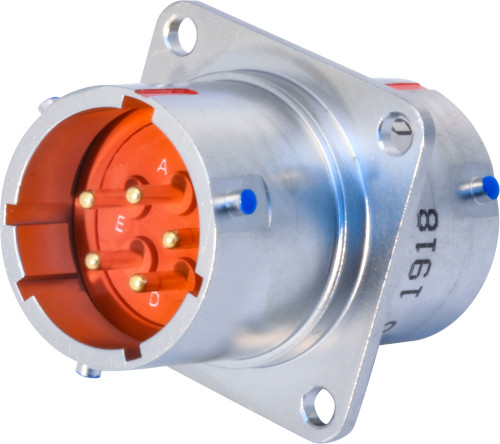

	947-303 Bayonet-Lock Narrow Flange Mount Bulkhead Feed-Thru MIL-DTL-26482 Type Hermetic MS3440 Type

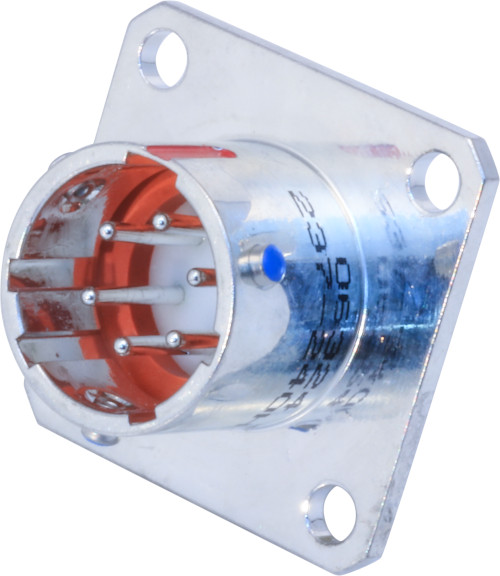

	237-240 Special Square Flange Mount Bayonet-Lock Receptacle MIL-DTL-26482 Series I Type Hermetic

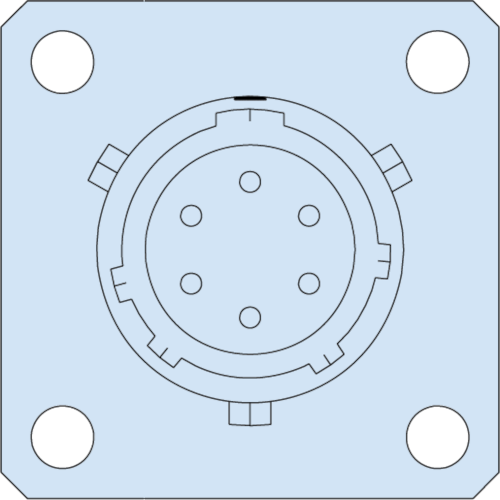

	230-046 Square Flange Mount Bayonet-Lock Receptacle MIL-DTL-26482 Series I Type Hermetic MS3112 Type Hermetic

MIL-DTL-26482 Series II Type Hermetic

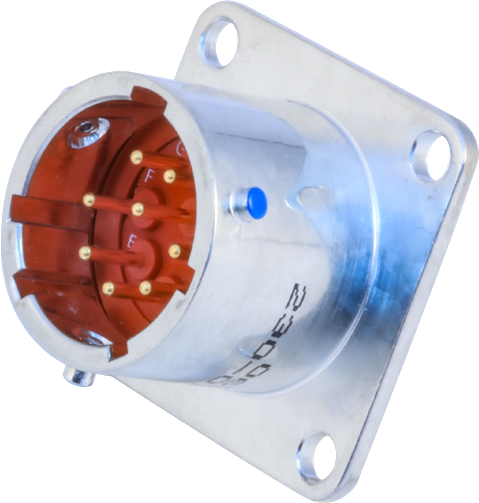

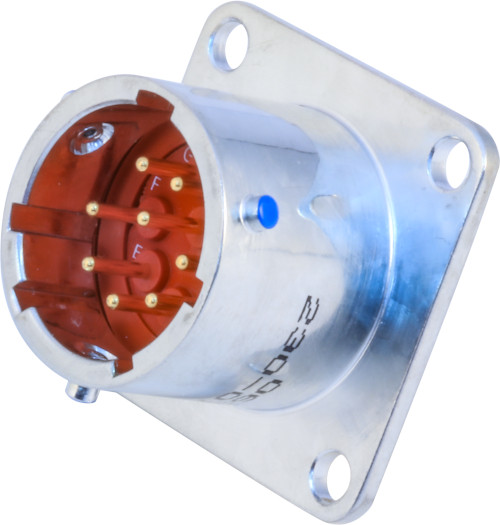

	230-016 Bayonet-Lock Narrow Flange Mount Receptacle MIL-DTL-26482 Series II Type Hermetic MS3440 Type

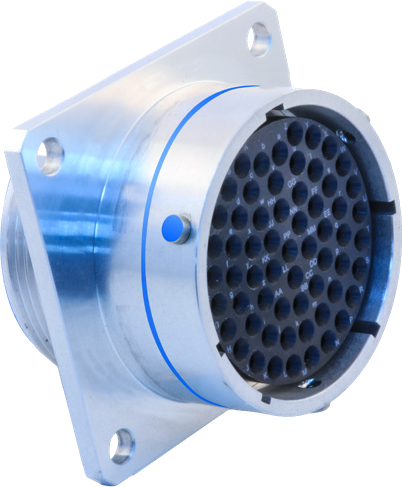

	230-017 Bayonet-Lock Wide Flange Mount Receptacle MIL-DTL-26482 Series II Type Hermetic MS3442 Type

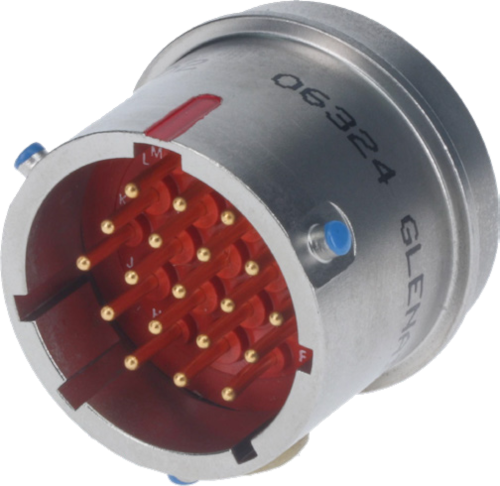

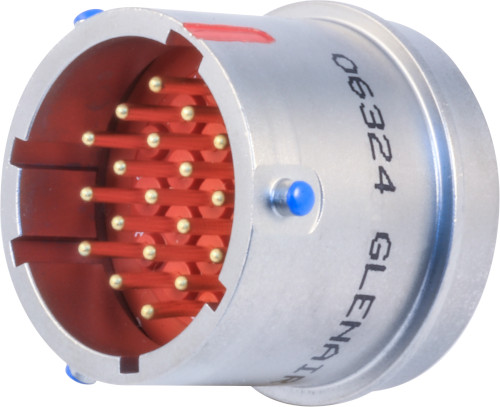

	230-018 Bayonet-Lock Solder Flange Mount Receptacle MIL-DTL-26482 Series II Type Hermetic MS3443 Type

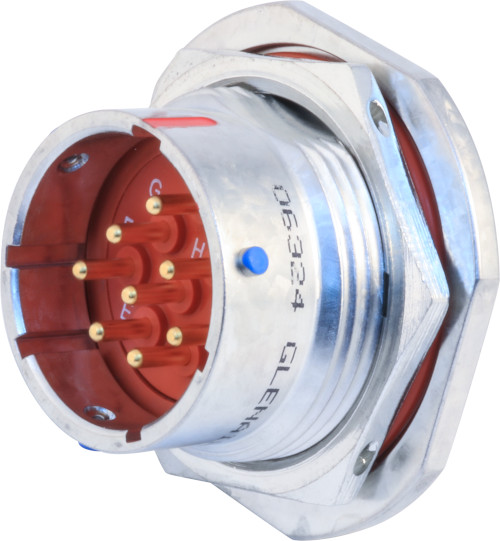

	230-019 Bayonet-Lock Jam-Nut Mount Receptacle MIL-DTL-26482 Series II Type Hermetic MS3449 Type

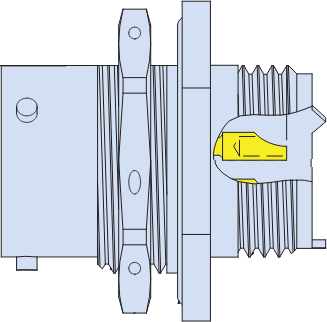

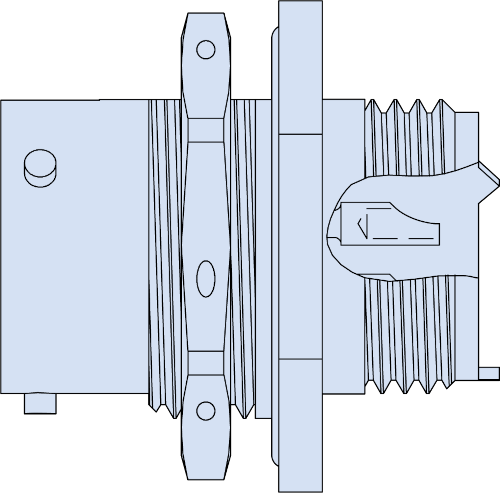

	230-043 Bayonet-Lock Jam-Nut Receptacle with Accessory Threads MIL-DTL-26482 Series II Type Hermetic

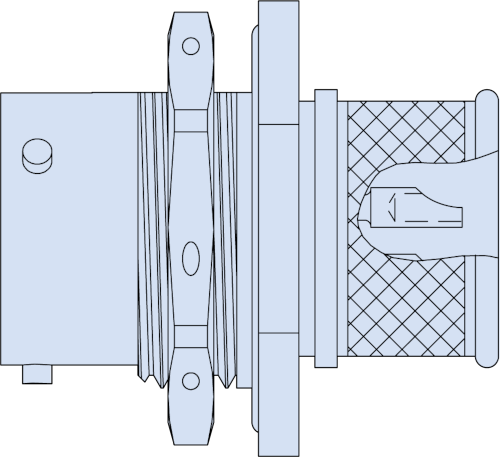

	230-044 Bayonet-Lock Jam-Nut Receptacle with Banding Porch MIL-DTL-26482 Series II Type Hermetic

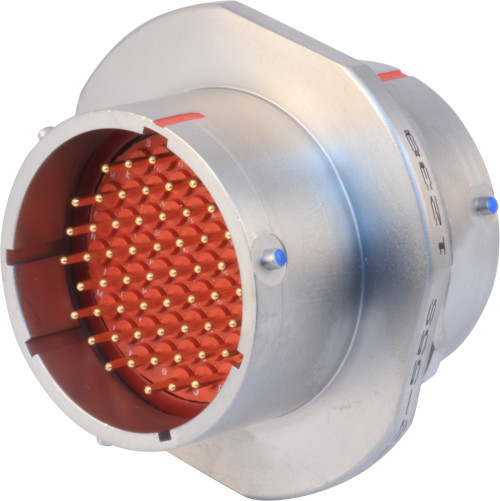

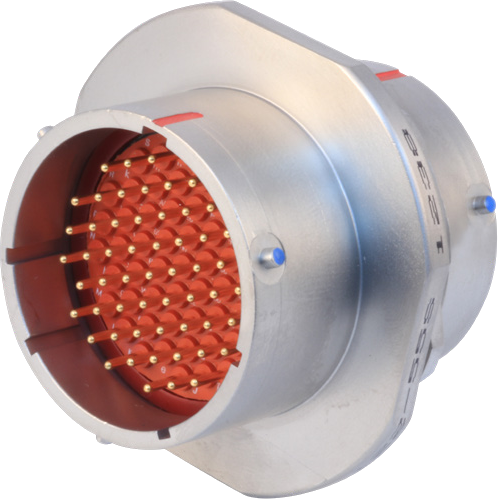

	947-292 Bayonet-Lock Jam Nut Mount Pin-Socket Bulkhead Feedthrough Receptacle MIL-DTL-26482 Series II Type Hermetic

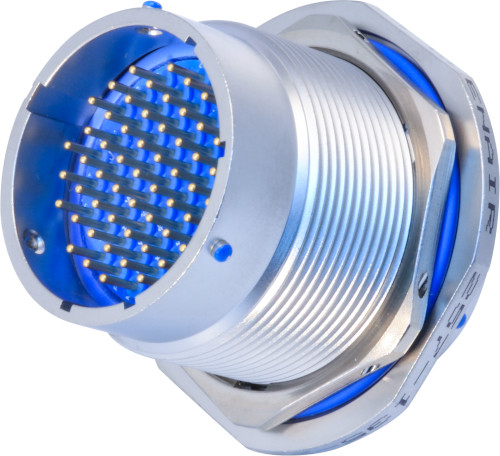

	257-135 Bayonet-Lock Jam Nut Mount Pin-Pin Bulkhead Feedthrough Receptacle MIL-DTL-26482 Series II Type Hermetic
