El Ochito®: The Ultimate High-Speed Contact

"The Little Eight": Eight miniaturized contacts in a standard size #8 shielded module, with dramatic size and weight reduction compared to all other available solutions.

Reference

El Ochito® Installation Kit 600-280

600-280
El Ochito® Installation Kit

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Shielded Contacts, Cable Accommodation and Assembly Tools

Shielded Contacts, Cable Accommodation and Assembly Tools

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Size #8 Contacts

24 AWG Category 6A Ethernet Cables, 963-037 and 963-033

963-037 and 963-033
24 AWG Category 6A Ethernet Cables

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • 24 AWG S/UTP Cat 6A Cable / 963-037-24
    S/UTP 24 AWG cable is specially designed for airborne 10 Gigabit Ethernet applications. Twisted pairs are separated by a fluoropolymer spline for reduced crosstalk and attenuation. This 200°C rated cable is Skydrol resistant, RoHS compliant and meets FAA FAR Parts 23 and 25 Appendix F flammability requirements. Laser-markable white PTFE jacket withstands abrasion and chemicals. Meets ANSI/TIA-568-C.2 Category 6A performance up to 246 feet.
  • 24 AWG S/FTP Cat 6A Cable / 963-033-24
    S/FTP 24 AWG cable has an individual foil shield around each data pair for reduced crosstalk and attenuation. This high data rate Ethernet cable features a unique cable jacket material and high-density construction that significantly reduces weight and diameter. Meets ANSI/TIA 568-C.2 Category 6A requirements up to 80 meters (262 feet). Qualified to SAE AS6070.
26 AWG Category 6A Ethernet Cables, 963-003 and 963-033

963-003 and 963-033
26 AWG Category 6A Ethernet Cables

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • 26 AWG S/UTP Cat 6A Cable / 963-003-26
    S/UTP 26 AWG cable is small, lightweight and flexible. Twisted pairs are separated by a fluoropolymer spline for reduced crosstalk and attenuation. This 200°C rated cable is Skydrol resistant, RoHS compliant and meets FAA FAR Parts 23 and 25 Appendix F flammability requirements. Rugged, laser-markable PTFE jacket withstands abrasion and chemicals. Meets ANSI/TIA-568-C.2 Category 6A performance up to 188 feet.
  • 26 AWG S/FTP Cat 6A Cable / 963-033-26
    S/FTP 26 AWG cable has an individual foil shield around each data pair for reduced crosstalk and attenuation. This high data rate Ethernet cable features a unique cable jacket material and high-density construction that significantly reduces weight and diameter. Meets ANSI/TIA 568-C.2 Category 6A requirements up to 65 meters (213 feet). Qualified to SAE AS6070.
SuperSpeed USB 3.0 Cables for El Ochito® Blue, 963-118 and 963-110

963-118 and 963-110
SuperSpeed USB 3.0 Cables for El Ochito® Blue

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • SuperSpeed USB Cable / 963-118
    90 ohm commercial-grade cable features PVC jacket. SuperSpeed data pairs feature low dielectric constant foamed PE insulation. Each SuperSpeed pair has an aluminized polyester shield. Overall shield is aluminum foil and aluminum wire braid.
  • SuperSpeed USB Cable / 963-110
    High performance, high temperature cable delivers dependable signal integrity over longer cable lengths. Fluoropolymer jacket can be laser-marked. Low-skew SuperSpeed data pairs have individual braid shields.

Turnkey Factory-Terminated El Ochito Pigtail and Jumper Assemblies

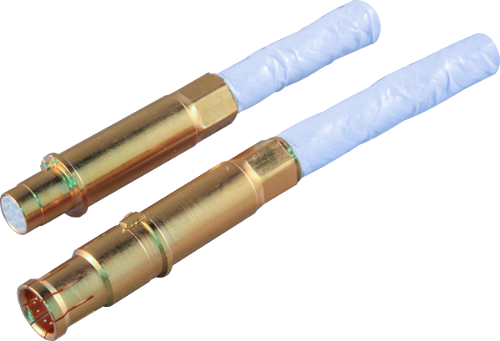

Pre-Wired CAT 6A El Ochito® Contacts, Single-Ended 8571-0001

8571-0001
Pre-Wired CAT 6A El Ochito® Contacts, Single-Ended

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Save assembly time and cost with pre-wired, 100% tested El Ochito® "White" assemblies. These single-ended cables have Ochito "White" contacts terminated to Category 6A aerospace-grade shielded cable. Supplied with cable sealing boot if applicable. Compatible with Glenair Series 23 connectors. Designed to meet the requirements of MIL-DTL-38999, SAE AS39029. El Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

Pre-Wired CAT 6A El Ochito® Contacts, Pin-to-Socket 8571-0002

8571-0002
Pre-Wired CAT 6A El Ochito® Contacts, Pin-to-Socket

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Lower installed cost. 100% tested. Save assembly time and cost with pre-wired El Ochito® "White" assemblies. These pin-to-socket cables have El Ochito "White" contacts terminated to Category 6A aerospace-grade shielded cable. Supplied with cable sealing boot if applicable. These pre-wired El Ochito contacts snap into connector body without requiring an insertion tool. Remove contacts with plastic tool 859-049. Compatible with Glenair Series 23 connectors. Designed to meet the requirements of MIL-DTL-38999, SAE AS39029. El Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

Cable Assembly, El Ochito®-to-RJ45 8571-0003 and 8571-0004

8571-0003 and 8571-0004
Cable Assembly, El Ochito®-to-RJ45

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

El Ochito-to-RJ45. Two cable options: commercial grade (8571-0003) or flight-grade (8571-0004) Cat6A. Save assembly time and cost with pre-wired El Ochito® "White" assemblies. Cost-effective commercial grade assemblies are perfect for LAN testers and de-bugging. High performance engineered fluoropolymer aerospace grade assemblies have foil shields on each wire pair. Compatible with Glenair Series 23 connectors. Operating temperature -40 to +70°C. Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

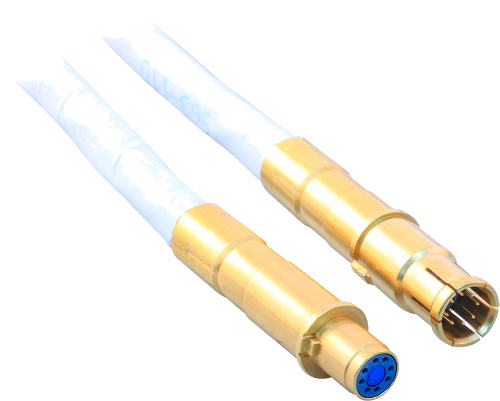

Pre-Wired El Ochito® USB 3.0 Contacts, Single-Ended 8572-0001

8572-0001
Pre-Wired El Ochito® USB 3.0 Contacts, Single-Ended

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Two cable options: commercial grade or flight-grade. 100% tested. Save assembly time and cost with pre-wired El Ochito® "Blue" SuperSpeed USB assemblies. These single-ended assemblies have Ochito "Blue" contacts terminated to USB 3 shielded cables. Supplied with cable sealing boot. Commercial-grade version has PVC jacket. Aerospace-grade version has high temperature fluoropolymer construction and braided shields on SuperSpeed pairs. Compatible with Glenair Series 23 connectors. Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

Back-to-Back El Ochito® Cable Assembly 8572-0002

8572-0002
Back-to-Back El Ochito® Cable Assembly

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Aerospace-grade or commercial-grade cable. 100% tested. Save assembly time and cost with pre-wired El Ochito® "Blue" SuperSpeed USB assemblies. These assemblies have a pin contact on one end and a socket contact on the other end. Aerospace-grade high temperature cable has fluoropolymer construction. Commercial-grade version has PVC jacket. Compatible with Glenair Series 23 connectors. Supplied with cable sealing boot. Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

El Ochito® Cable Assemblies with USB 3 Connectors 8572-0003

8572-0003
El Ochito® Cable Assemblies with USB 3 Connectors

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

USB 3.0 Connectors. Commercial grade. 100% tested. Save assembly time and cost with pre-wired El Ochito® "Blue" SuperSpeed USB assemblies. These assemblies have El Ochito "Blue" contacts wired to USB 3.0 connectors. Supplied with cable sealing boot. Compatible with Glenair Series 23 connectors. El Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

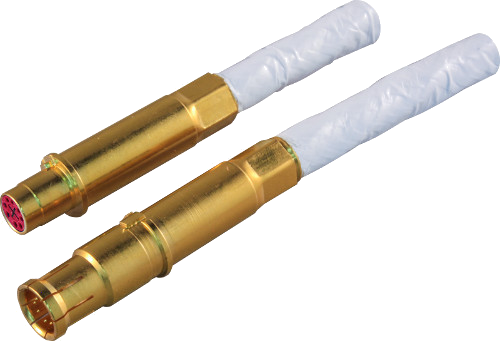

Pre-Wired El Ochito® Contacts, Single-Ended 8573-0001

8573-0001
Pre-Wired El Ochito® Contacts, Single-Ended

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Save assembly time and cost with pre-wired, 100% tested El Ochito® "Red" assemblies for multi-gigabit datalinks. These single-ended cables have Ochito "Red" contacts terminated to high performance flight-grade 100 ohm shielded twisted pair cable. Supplied with cable sealing boot. Compatible with Glenair Series 23connectors. Designed to meet the requirements of MIL-DTL-38999 and SAE AS39029. Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

Pre-Wired El Ochito® Contacts, Pin-Socket 8573-0002

8573-0002
Pre-Wired El Ochito® Contacts, Pin-Socket

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Save assembly time and cost with pre-wired, 100% tested El Ochito® "Red" assemblies for multi-gigabit datalinks. These pin-to-socket cables have El Ochito "Red" contacts terminated to high performance flight-grade 100 ohm shielded twisted pair cable. Supplied with cable sealing boots. Compatible with Glenair Series 23 connectors. Designed to meet the requirements of MIL-DTL-38999 and SAE AS39029. El Ochito contacts should be installed in keyed connectors before mating to prevent misalignment and contact damage.

El Ochito® Test Adapters for SuperNine® Connectors

239-203
El Ochito® Test Adapters for SuperNine® Connectors

Plug Adapter and Receptacle Adapter

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Test your system or cable while preventing damage to expensive cables with El Ochito® test adapters. These test adapters properly align test contacts without the added expense and time-consuming labor of mating connectors. Insert adapter cable into adapter, then push test adapter into Device Under Test (DUT). No tool is required to insert and remove adapter cable.

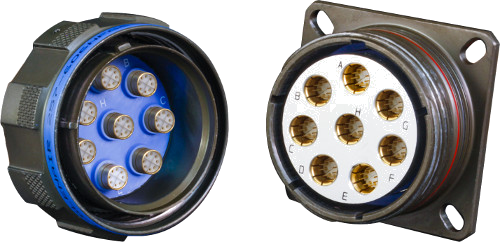

Plug and Receptacle Series with Shielded, High-Speed and RF Crimp Removable Contacts, 233-217 (Accessory Threads) and 233-224 (Banding Porch)

233-217 (Accessory Threads) and 233-224 (Banding Porch)
Plug and Receptacle Series with Shielded, High-Speed and RF Crimp Removable Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • G6 = Plug, with EMI Spring
  • 05 = Receptacle, In-Line
  • 07 = Receptacle, Jam-Nut with Standard Standoff Thread
  • 00 = Receptacle, Wall-Mount with Slotted Holes and Stand Off with Standard Threads
  • CM = Receptacle, Wall-Mount with Metric Clinch Nuts
  • CS = Receptacle, Wall Mount with Standard Clinch Nuts
  • D0 = Receptacle, Wall Mount with Thru-Holes
  • HM = Receptacle, Wall Mount with Metric Helicoils
  • HS = Receptacle, Wall Mount with Standard Helicoils

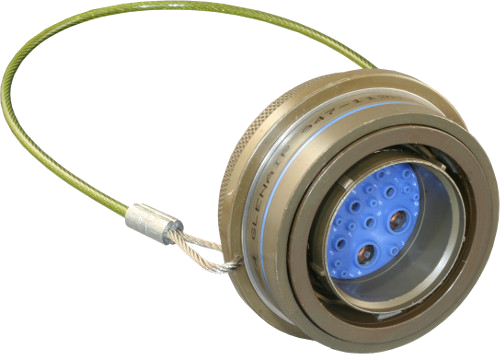

QDC Lanyard-Release Plug with Shielded High-Speed and RF Crimp Removable Contacts 233-260

233-260
QDC Lanyard-Release Plug with Shielded High-Speed and RF Crimp Removable Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • G6 = Quick Disconnect Plug

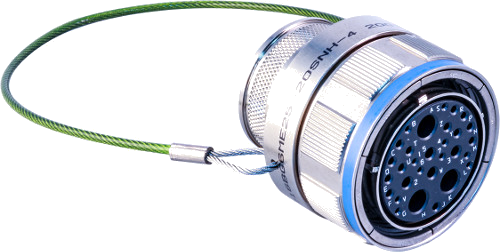

QDC Lanyard-Release EMI Plug with Shielded High-Speed and RF Crimp Removable Contacts 233-226

233-226
QDC Lanyard-Release EMI Plug with Shielded High-Speed and RF Crimp Removable Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • G6 = Plug, EMI

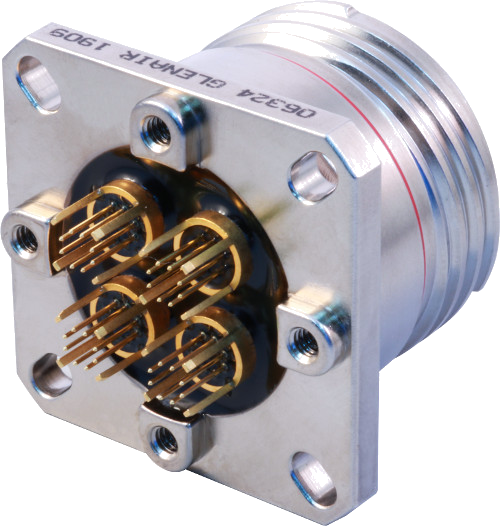

PC Tail Receptacle with Shielded High-Speed and RF Contacts 233-218

233-218
PC Tail Receptacle with Shielded High-Speed and RF Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • 07= Receptacle, Jam-Nut
  • 00 = Receptacle, Wall-Mount with Slotted Holes
  • CM = Receptacle, Wall Mount with Metric Clinch Nuts
  • CS = Receptacle, Wall Mount with Standard Clinch Nuts
  • HM = Receptacle, Wall Mount with Metric Helicoils
  • HS = Receptacle, Wall Mount with Standard Helicoils
Dual Flange Receptacle with PC Tail High-Speed and RF Contacts 233-225

233-225
Dual Flange Receptacle with PC Tail High-Speed and RF Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • 07 = Receptacle, Jam-Nut with Standard Standoff Thread
  • 17 = Receptacle, Jam-Nut, with Metric Standoff Thread
  • 00 = Receptacle, Wall-Mount with Slotted Holes and Stand Off with Standard Threads
  • 10 = Receptacle, Wall-Mount with Slotted Holes and Stand Off with Metric Threads
  • CM = Receptacle, Wall-Mount with Metric Clinch Nuts
  • CS = Receptacle, Wall Mount with Standard Clinch Nuts
  • HM = Receptacle, Wall Mount with Metric Helicoils
  • HS = Receptacle, Wall Mount with Standard Helicoils
Bulkhead Feed-Thru with High-Speed and RF Contacts 233-227

233-227
Bulkhead Feed-Thru with High-Speed and RF Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • 00 = Receptacle, Wall-Mount with Slotted Holes
  • CM = Receptacle, Wall Mount with Metric Clinch Nuts
  • CS = Receptacle, Wall Mount with Standard Clinch Nuts
  • HM = Receptacle, Wall Mount with Metric Helicoils
  • HS = Receptacle, Wall Mount with Standard Helicoils
Sav-Con® Connector Saver with High-Speed and RF Contacts 233-228

233-228
Sav-Con® Connector Saver with High-Speed and RF Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Extender Backshell with Keyed Grommet Seal for use with Size #8 El Ochito Contact Cables 377HS121

377HS121
Extender Backshell with Keyed Grommet Seal for use with Size #8 El Ochito Contact Cables

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors


Space-Grade, High-Speed Circular, Blind-Mate Connectors

Reference

253-044 Fixed Mount Plug with Roll Off Nose an Crimp contacts, 253-045 Float Mount Receptacle with Mis-Alignment Capabilities

253-044 Fixed Mount Plug with Roll Off Nose an Crimp Contacts
253-045 Float Mount Receptacle with Mis-Alignment Capabilities

MIL-DTL-38999 Series III Type High-Speed Space-Grade Connectors

Mis-Alignment Capable Plug and Receptacle 253-047 and 253-048

253-047 and 253-048
Mis-Alignment Capable Plug and Receptacle

MIL-DTL-38999 Series III Type High-Speed Space-Grade Connectors


SpeedMaster™ Contact System

High-Speed Contact Modules and Inserts for use in MIL-DTL-38999 Series III Connectors

SpeedMaster™ 10G is a dedicated contact module and interconnect insert package designed for use in MIL-DTL-38999 Series III type SuperNine™ connectors. SpeedMaster™ meets the unique installation, performance requirements, and use preferences of the aerospace industry. Optimized for high-speed Cat 6A Ethernet, the SpeedMaster™ 10G system offers industry-leading NEXT, return loss and insertion loss performance due to its highly-engineered isolation and separation architecture. Easy to assemble, terminate, install, and repair, the SpeedMaster™ 10G utilizes size #22D contacts, tools, and cable, and meets the broad range of aerospace industry requirements for vibration, temperature cycling, durability, and safe, reliable performance. Applications include defense, military and commercial aircraft electronics, in-flight entertainment, medical equipment, rail electronics systems, and industrial automation/robotics.

Reference

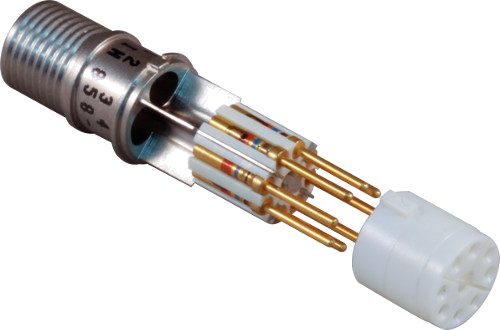

SpeedMaster Cat 6A Contacts 858-100 and 858-101

858-100 and 858-101
SpeedMaster Cat 6A Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • 858-100 SpeedMaster™ Socket Module
  • 858-101 SpeedMaster™ Pin Module
SpeedMaster™ Cat 6A Contacts, Pre-Wired 8575-0001

8575-0001
SpeedMaster™ Cat 6A Contacts, Pre-Wired

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

Pre-wired SpeedMaster assemblies are 100% tested and ready for use. For use with Series 23 SuperNine connectors with keyed size #8 cavities, these assemblies are available with three termination options: single-ended SpeedMaster contacts on one end, SpeedMaster contacts on both ends, or SpeedMaster contact on one end and RJ45 plug on the other end.

SpeedMaster™ Plug and Receptacle Connectors 233-219

233-219
SpeedMaster™ Plug and Receptacle Connectors

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

  • 233-219-G6 Plug D38999/26 Type
  • 233-219-05 In-Line Receptacle
  • 233-219-07 Jam-Nut Mount Receptacle, D38999/24 Type
  • 233-219-00 Slotted Hole, D38999/20 Type
  • 233-219-CS Clinch Nut Standard or 233-219-CM Clinch Nut Metric and 233-219-D0 Drilled Holes and 233-219-T0 Tapped Holes
  • Helicoils Standard (HS) and Metric (HM)
Receptacle with SpeedMaster™ 10G PC Tail Contacts 233-220

233-220
Receptacle with SpeedMaster™ 10G PC Tail Contacts

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

SpeedMaster™ Multi-Function Cable-Sealing Backshell Adapter 377-119

377-119
SpeedMaster™ Multi-Function Cable-Sealing Backshell Adapter

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors

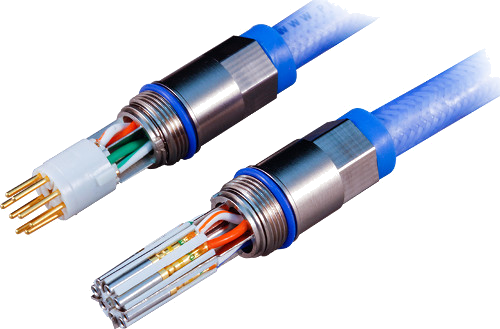

Speed Master™ Assembly Instructions AI85082

AI85082
Speed Master™ Assembly Instructions

MIL-DTL-38999 Series III Type High-Speed Environmental Connectors
