Hermetic Connectors, Glass-to-Metal, and CODE RED Encapsulant-to Metal Sealing – SuperNine® Advanced Performance MIL-DTL-38999 Series III Type

Box, Wall, and Solder Mount Glass-Seal Hermetics for High-Pressure/Low-Leak Applications — Plus Special Crimp Contact and Lightweight CODE RED Hermetic Solutions all IAW MIL-DTL-38999 Series III and Series I Types

Available sealing (helium leak rate) from <1×10^-7 cc/sec to 1×10^-10
No material breakdown or aging over time
Matched and compression seal glass-to-metal technologies
Pressure resistance to 32,000+ PSI
Available CODE RED lightweight aluminum hermetics with low-resistance copper contacts
DSCC qualified MIL-DTL-38999 Series III glass-sealed hermetics in both pin and socket configurations

Reference

Related Catalog

MIL-DTL-38999 QPL and Glenair Signature Hermetic Seal Connectors

On this page...

SuperNine Series III Glass-Seal Hermetic Connectors
MIL-DTL-38999 Series III Type
SuperNine Series III Lightweight Hermetic Connectors with CODE RED Encapsulant
MIL-DTL-38999 Series III Type
SuperNine Series I CODE RED Lightweight Hermetic Receptacle
MIL-DTL-38999 Series I Type

SuperNine Series III Glass-Seal Hermetic Connectors

MIL-DTL-38999 Series III Type

	233-265 D38999 Series III Wall & Weld Mount Hermetic Receptacle with Removable Crimp Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors MIL-DTL-38999 Series III Type SuperNine hermetic receptacles withstand the pressure differentials between internal and external environments without compromising their integrity. Removable crimp contacts provide quick and easy connection to the connector. Hermetic sealing of 1 x 10^-7 atm cc/s ensures protection against moisture and contaminants, making them ideal for aerospace and defense applications to guarantee reliability in extreme environments, ensuring optimal performance in critical applications. Available in 2 shell styles with accessory threads or integral banding porch options. Rated for temperatures from -55°C to +125°C, they meet stringent military specifications, providing exceptional resistance to shock (up to 100g), vibration (up to 20g), and corrosion (salt spray per ASTM B117). 233-265-H2 Wall Mount Hermetic with Accessory Threads 233-265-BH2 Wall Mount Hermetic with Integral Banding Porch 233-265-H8 Weld Mount Hermetic with Accessory Threads 233-265-BH8 Weld Mount Hermetic with Banding Porch
	233-265 D38999 Series III Jam Nut Mount Hermetic Receptacles with Removable Crimp Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors MIL-DTL-38999 Series III Type SuperNine single and dual O-ring hermetic receptacles withstand the pressure differentials between internal and external environments without compromising their integrity. Hermetic sealing of 1 x 10^-7 atm cc/s ensures protection against moisture and contaminants, making them ideal for aerospace and defense applications to guarantee reliability in extreme environments, ensuring optimal performance in critical applications. Available with accessory threads or banding porch options and pin or socket shielded contacts. Rated for temperatures from -55°C to +125°C, they meet stringent military specifications, providing exceptional resistance to shock (up to 100g), vibration (up to 20g), and corrosion (salt spray per ASTM B117). 233-265-H7 Jam-Nut Hermetic with Accessory Threads 233-265-BH7 Jam-Nut Hermetic with Integral Banding Porch 233-265-DH7 Jam-Nut Hermetic with Dual O-ring and Accessory Threads 233-265-DBH7 Jam-Nut Hermetic with Dual O-ring and Banding Porch
	233-266 Hermetic Jam-Nut and Box Mount Receptacles with Accessory Thread or Banding Porch SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-266-H7 Jam-Nut Mount with Accessory Thread 233-266-07 Jam-Nut Mount with Single Band, Banding Porch 233-266-DH7 Jam-Nut Mount with Accessory Thread 233-266-D07 Jam-Nut Mount Single Band 233-266-H2 Box Mount with Accessory Threads 233-266-02 Box Mount with Band Porch
	2333-2001 D38999 Series III 1000 PSI Rated, Piston-Sealed Hermetic Receptacle SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 2333-2001-H2 Piston Sealed Box Mount Hermetic Receptacle 2333-2001-H5 Piston Sealed Solder Mount Hermetic Receptacle 2333-2001-H7 Piston Sealed Jam-Nut Mount Hermetic Receptacle 2333-2001-H8 Piston Sealed Weld Mount Hermetic Receptacle
	2333-2003 D38999 Series III Cryogenic Hermetic Receptacle SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 2333-2003-H2 Box Mount Hermetic Receptacle 2333-2003-H5 Solder Mount Hermetic Receptacle 2333-2003-H7 Jam-Nut Mount Hermetic Receptacle 2333-2003-H8 Weld Mount Hermetic Receptacle
	2333-2010 D38999 Series III Cryogenic Hermetic Feedthrough 2333-2010-H2 Box Mount Hermetic Receptacle 2333-2010-H7 Jam-Nut Mount Hermetic Receptacle 2333-2010-DH7 Dual O-Ring Jam-Nut Mount Hermetic Receptacle 2333-2010-H8 Weld Mount Hermetic Receptacle

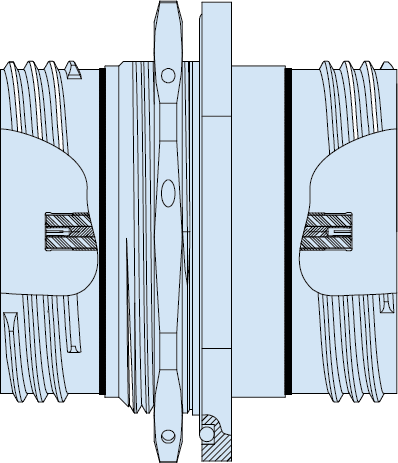

	2333-2011 D38999 Series III High-Pressure Hermetic Bulkhead Feedthrough
	233-277 D38999 Series III Hermetic 1000 PSI Rated Piston Seal Solder Cup Receptacle 233-277-H7 or 233-277-BH7 Jam-Nut Hermetic Receptacle with Accessory Threads or Banding Porch
	233-278 D38999 Series III Hermetic 1000 PSI Rated Piston Seal Crimp Removable Receptacle 233-278-H7 or 233-278-BH7 Jam-Nut Hermetic Receptacle with Accessory Threads or Banding Porch
	233-263 D38999 Series III Hermetic Bulkhead Feed-Thru with 10G High-Speed Contacts 233-263-H2 Square Flange Mount Hermetic Bulkhead Feed-Thru 233-263-H8 Weld Mount Hermetic Bulkhead Feed-Thru 233-263-H7 Jam-Nut Mount Hermetic Bulkhead Feed-Thru
	233-262 D38999 Series III Hermetic PC Tail Receptacles with Shielded Contacts 233-262 Hermetic High-Speed / RF Shielded Contact, PCB Footprints 233-262-H2 Hermetic Box Mount Receptacle 233-262-H7 Hermetic Jam-Nut Mount Receptacle 233-262-DH7 Hermetic Jam-Nut Mount Dual O-Ring Receptacle 233-262-H8 Hermetic Weld Mount Receptacle, D38999/21 Type
	233-267 D38999 Series III Hermetic PC Tail Receptacles with Threaded Stand-Off 233-267-H2 Hermetic Box Mount Receptacle 233-267-H7 Hermetic Jam-Nut Receptacle 233-267-DH7 Hermetic Dual O-Ring Jam-Nut Receptacle
	233-268 D38999 Series III Hermetic Dual Flange Receptacles, High-Speed PCB Contacts 233-268-H2 Hermetic Box Mount Receptacle 233-268-H7 and 233-268-DH7 Hermetic Jam-Nut Mount Receptacle 233-268-H7 Hermetic Jam-Nut Mount Receptacle 233-268-DH7 Hermetic Dual O-Ring, Jam-Nut Mount Receptacle
	233-271 D38999 Series III Hermetic Receptacle with Thermocouple Contacts 233-271-H2 Flange Mount Hermetic Receptacle Connector 233-271-H5 Solder Mount Hermetic Receptacle Connector 233-271-H7 Jam-Nut Mount Hermetic Receptacle Connector 233-271-H8 Weld Mount Hermetic Receptacle Connector
	233-103-H2 and 233-103-H8 D38999 Series III Hermetic Bulkhead Feed-Thrus 233-103-H2 Box Mount Hermetic Receptacle 233-103-H8 Weld Mount Hermetic Receptacle
	233-103-H7 and 233-103-DH7 D38999 Series III Hermetic Bulkhead Feed-Thrus 233-103-H7 Jam-Nut Hermetic Mount 233-103-DH7 Dual O-Ring Hermetic Jam-Nut Receptacle
	233-261-H2 and 233-261-H8 D38999 Series III Hermetic Bulkhead Feed-Thru with Shielded Contacts 233-261-H2 Box Mount Hermetic Feed-Thru Connector 233-261-H8 Weld Mount Hermetic Feed-Thru Connector
	233-261-H7 and 233-261-DH7 D38999 Series III Hermetic Bulkhead Feed-Thru with Shielded Contacts 233-261-H7 Jam-Nut Mount Hermetic Feed-Thru Connector 233-261-DH7 Dual O-Ring Jam-Nut Mount Hermetic Feed-Thru Connector
	233-284 D38999 Series III Hermetic Bulkhead Feed-Thru with Thermocouple Contacts 233-284-H2 Dual O-Ring, Jam-Nut Feed-Thru Hermetic Connector 233-284-H7 Jam-Nut Feed-Thru Hermetic Connector 233-284-DH7 Dual O-Ring, Jam-Nut Feed-Thru Hermetic Connector 233-284-H8 Weld Mount Feed-Thru Hermetic Connector
	233-103-H9 D38999 Series III Hermetic Bulkhead SAV-CON Feed-Thru Jam-Nut Mount Hermetic Gender Changer

SuperNine Series III Lightweight Hermetic Connectors with CODE RED Encapsulant

MIL-DTL-38999 Series III Type

"Mission-Critical" Hermetic Sealing with 1x10^-7 Leak-Rate Performance

Hermetically-sealed interconnects used in vacuum or high-altitude applications prevent moisture and other contaminants from damaging sensitive electronic equipment. Glass-to-metal hermetic sealing has been the gold standard in the aerospace and petrochemical industries for decades due to the strength and long-term durability of the materials used. But glass-to-metal seal hermetics come with a big price tag in both weight and electrical resistance.

CODE RED is an innovative sealing encapsulant and application process — invented by Glenair — that provides durable hermetic sealing in a lightweight aluminum package. CODE RED allows for the use of conventional gold-plated copper alloy contacts, significantly improving electrical performance. CODE RED hermetic connectors are available now in Glenair SuperNine® (D38999 Series III type), Series 80 Mighty Mouse, and M24308 D-Sub. These connectors deliver reliable, life-of-system 1x10^-7 max leak-rate hermetic sealing and special non-magnetic (zero residual magnetism) versions are also available, consult factory.

Reference

	233-250 Wall Mount or Jam-Nut Mount Receptacle, PC Tails or Solder Cup MIL-DTL-38999 Series III Type CODE RED
	233-251 Hermetic Jam-Nut Mount, Bulkhead Feed-Thru MIL-DTL-38999 Series III Type CODE RED
	233-252 Hermetic Jam-Nut Mount, Crimp Removable Contact MIL-DTL-38999 Series III Type CODE RED
	233-253 Hermetic Jam-Nut Mount with Solder Cup and Banding Porch MIL-DTL-38999 Series III Type CODE RED
	233-254 Hermetic Jam-Nut Mount with PC Tail Quadrax Contacts MIL-DTL-38999 Series III Type CODE RED
	233-255 Hermetic Jam-Nut Mount, PC Tail with Threaded Standoffs MIL-DTL-38999 Series III Type CODE RED
	2330-0131 Connector Receptacle, RJ45 to Solder Cup Termination 2330-0131-00 Wall Mount Receptacle with Slotted Holes 2330-0131-D0 Wall Mount Receptacle with Round Holes 2330-0131-07 Jam Nut Mount Receptacle RJ45 Orientation Options MIL-DTL-38999 Series III Type CODE RED
	2333-2002 Light Weight Hermetic Bulkhead Feedthru Connector with BMB RF Contacts 2333-2002-07 Jam-nut Mount Receptacle 2333-2002-D0 Wall Mount with Round Holes MIL-DTL-38999 Series III Type CODE RED
	233-256 Jam-Nut Mount Receptacle MIL-DTL-38999 Series III Type CODE RED
