MIL-DTL-38999 Type Connector (Series III) Fiber Optic solutions for long distance and high bandwidth applications, including Ethernet, video, and other forms of high-speed data. All solutions available with Glenair QPL M29504/04 and /05 Fiber Optic Termini.

MIL-DTL-38999 type fiber optic interconnection systems (with M29504/04 and /05 termini) are the recognized standard for all military and commercial aerospace applications that depend on high levels of connector reliability, environmental and mechanical performance and low dB insertion loss. Designed specifically for avionics applications, the Glenair tight-tolerance SuperNine® fiber optic connection system has been successfully deployed in applications ranging from the F-35 Joint Strike Fighter and the venerable F-22 to dozens of other fixed wing and rotary aircraft applications. Ultra-lightweight composite thermoplastic connectors deliver years of reliable service, free from the destructive effects of corrosion and less susceptible to vibration and shock when compared to conventional metal connectors.

  • Ultralightweight composite thermoplastic connector solution
  • Qualified size 16 MIL-PRF-29504 pin-socket precision ceramic termini
  • Ultra tight tolerance shell and cavity dimensions for precise axial alignment
  • Ultra low insertion loss values for both singlemode and multimode
  • From 2 to 37 Insert arrangements

Reference

SuperNine Fiber Optic D38999


On this page...


SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

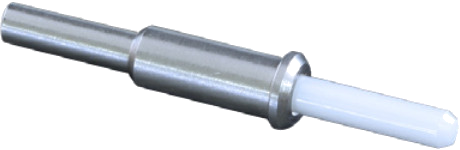

181-002 • M29504/04 Fiber Optic Pin Terminus, Size 16

181-002 • M29504/04

Fiber Optic Pin Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/04 Type, Style 1 Pin Terminus for MIL-DTL-38999 Series III

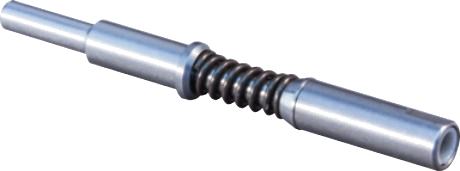

181-001 • M29504/05 Fiber Optic Socket Terminus, Size 16

181-001 • M29504/05
Fiber Optic Socket Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/05 Type, Style 1 Socket Terminus for MIL-DTL-38999 Series III

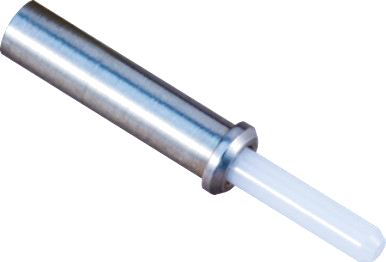

181-010 • M29504/04 Fiber Optic Pin Terminus, Size 16

181-010 • M29504/04
Fiber Optic Pin Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/04 Type, Style 2 Pin Terminus for MIL-DTL-38999 Series III

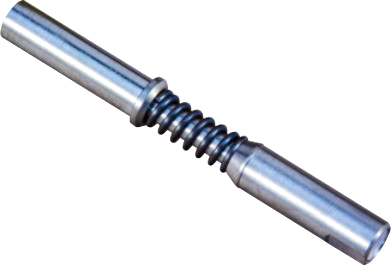

181-009 • M29504/05 Fiber Optic Socket Terminus, Size 16

181-009 • M29504/05
Fiber Optic Socket Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/05 Type, Style 2 Socket Terminus for MIL-DTL-38999 Series III

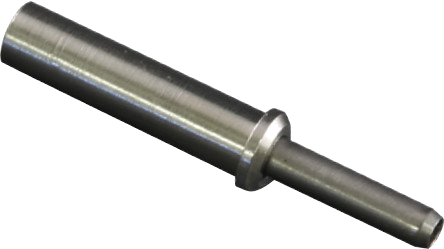

181-036 Large-Core Optical Fiber Terminus, Size 16

181-036
Large-Core Optical Fiber Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/04 Type, Style 2 Large Core Metal Ferrule Pin Terminus for MIL-DTL-38999 Series III

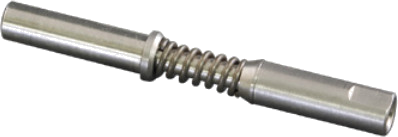

181-035 Large Core Fiber Optic Socket Terminus, Size 16

181-035
Large Core Fiber Optic Socket Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/05 Type, Style 2 Large Core Metal Ferrule Socket Terminus for MIL-DTL-38999 Series III

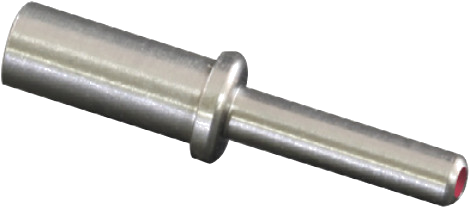

181-052 Fiber Optic Jewel Pin Terminus, Size 16

181-052
Fiber Optic Jewel Pin Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/4 Type, Style 2 Fiber Optic Jewel Pin Terminus for MIL-DTL-38999 Series III

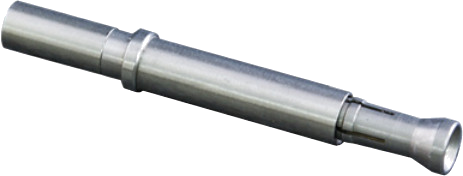

181-053 Fiber Optic Jewel Socket Terminus, Size 16

181-053
Fiber Optic Jewel Socket Terminus, Size 16

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • M29504/05 Type Fiber Optic Jewel Socket Terminus
181-065 Fiber Optic Pin Terminus, Size 20

181-065
Fiber Optic Pin Terminus, Size 20

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • Size 20 Pin Terminus for MIL-DTL-38999 Series III

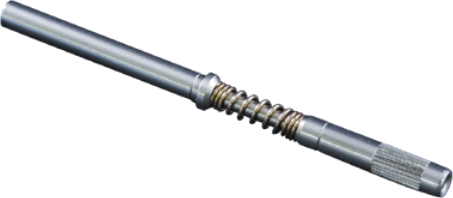

181-066 Fiber Optic Socket Terminus, Size 20

181-066
Fiber Optic Socket Terminus, Size 20

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Termini

  • Size 20 Socket Terminus for MIL-DTL-38999 Series III

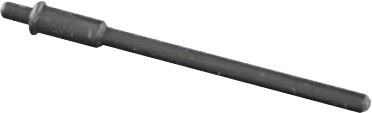

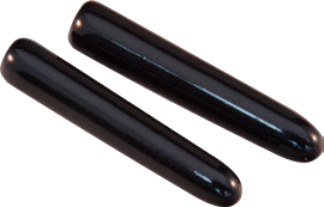

181-048-16 Size 16 Dummy Terminus/Sealing Plug and 187-019 Size 16 Pin and Socket Terminus Vinyl Dust Caps

181-048-16 Size 16 Dummy Terminus/Sealing Plug
187-019 Size 16 Pin and Socket Terminus Vinyl Dust Caps

SuperNine® MIL-DTL-38999 Series III Type Pin and Socket Accessories

  • 181-048-16 Size 16 dummy terminus reduces weight and eliminates cost of using expensive contacts
  • 187-019 Vinyl dust cap for size 16 termini with ø .0625 Ferrules.
    Installs directly onto ferrule of 181-001, 181-002, 181-009, 181-010, 181-035, 181-036, 181-052 and 181-053 Termini.
187-029 Size 16 Socket Terminus Vinyl Dust Caps and 187-266 Size 20 Pin and Socket Terminus Vinyl Dust Caps

187-029 Size 16 Socket Terminus Vinyl Dust Caps

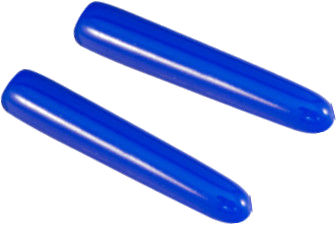

187-266 Size 20 Pin and Socket Terminus Vinyl Dust Caps

SuperNine® MIL-DTL-38999 Series III Type Pin and Socket Accessories

  • 187-029 Vinyl dust cap for socket termini.
    Installs over of 181-001, 181-009, 181-035, and onto alignment sleeve of 181-053 termini.
  • 187-266 Vinyl dust cap for size 20 termini fits over metal terminus body of 181-065 pin or 181-066 socket termini.

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

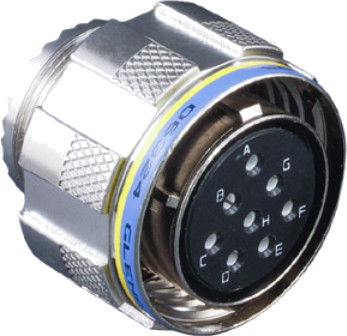

MIL-DTL-38999 Series III Type In-Line Plug Connector • Multi-Channel 180-091 (06)

180-091 (06)
MIL-DTL-38999 Series III Type In-Line Plug Connector • Multi-Channel

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

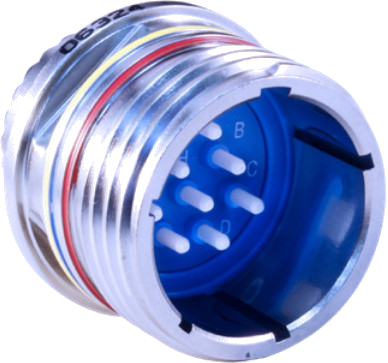

MIL-DTL-38999 Series III Type In-Line Receptacle Connector • Multi-Channel 180-091 (05)

180-091 (05)
MIL-DTL-38999 Series III Type In-Line Receptacle Connector • Multi-Channel

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

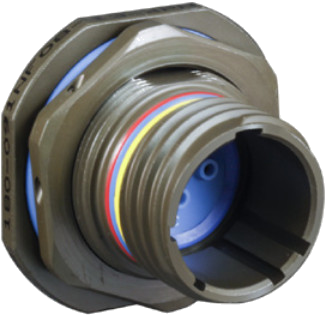

MIL-DTL-38999 Series III Type Jam-Nut Mount Receptacle Connector • Multi-Channel 180-091 (08)

180-091 (08)
MIL-DTL-38999 Series III Type Jam-Nut Mount Receptacle Connector • Multi-Channel

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

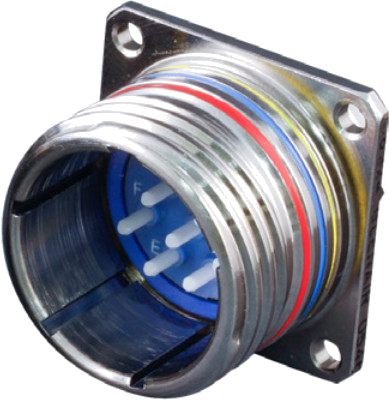

MIL-DTL-38999 Series III Type Wall Mount Receptacle, Round Holes • Multi-Channel, 180-091 (H7)

180-091 (H7)
MIL-DTL-38999 Series III Type Wall Mount Receptacle, Round Holes • Multi-Channel

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

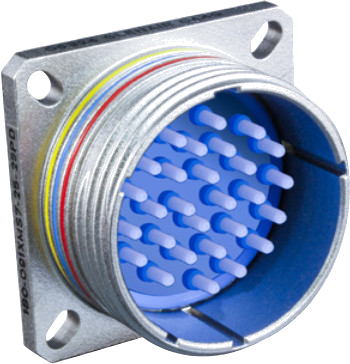

MIL-DTL-38999 Series III Type Wall Mount Receptacle Connector, Slotted Holes • Multi-Channel, 180-091 (S7)

180-091 (S7)
MIL-DTL-38999 Series III Type Wall Mount Receptacle Connector, Slotted Holes • Multi-Channel

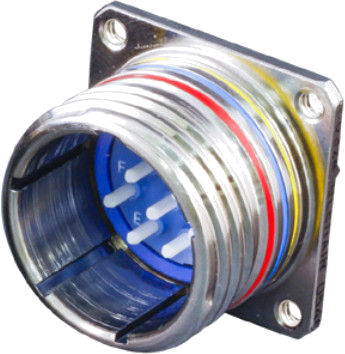

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

MIL-DTL-38999 Series III Type Wall Mount Receptacle Connector, Threaded Holes • Multi-Channel, 180-091 (T7)

180-091 (T7)
MIL-DTL-38999 Series III Type Wall Mount Receptacle Connector, Threaded Holes • Multi-Channel

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

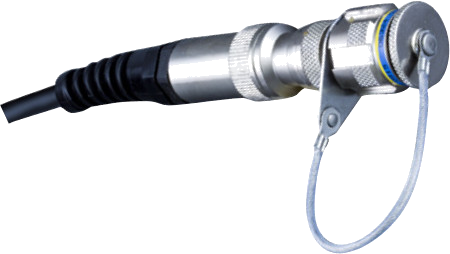

MIL-DTL-38999 Series III Type Metal and Composite Covers 660-023, 660-024/660-049, 660-050

660-023, 660-024/660-049, 660-050
MIL-DTL-38999 Series III Type Metal and Composite Covers

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic Connectors

  • 660-023 = Metal Plug Cover
  • 660-024 = Metal Receptacle Cover
  • 660-049 = Composite Plug Cover
  • 660-050 = Composite Receptacle Cover

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic ASAP Cordsets

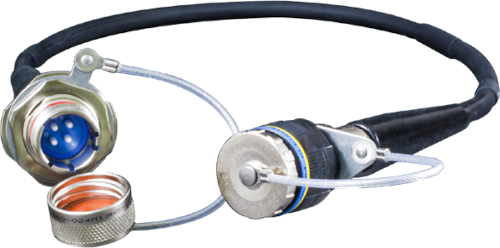

FO1000 ASAP Fiber Optic Cable Sets with Rugged Overmolding, MIL-DTL-38999 Series III Type

FO1000
ASAP Fiber Optic Cable Sets with Rugged Overmolding

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic ASAP Cordsets

The World's Only Short Lead-Time Source for Harsh Environment Overmolded F/O Cable Assemblies

  • Harsh Environment Polyurethane Overmolding (Viton® and Neoprene Available)
  • Singlemode or Multimode Fiber Media
  • MIL-DTL-38999 Series III Connectors in Aluminum, Composite or Stainless Steel
  • Plug, Jam-Nut Receptacle, In-Line and Wall-Mount Receptacle Configurations
  • Military Standard Dust Caps and Connector Accessories
  • MIL-PRF-29504 Approved Termini
  • Multichannel Capability: From 2 to 37 Channels
  • Custom Lengths Available
  • Robust, Flexible and Crush Resistant

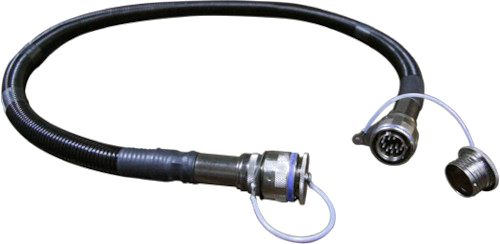

FO1001 ASAP Fiber Optic Cable Sets, MIL-DTL-38999 Series III Type

FO1001
ASAP Fiber Optic Cable Sets

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic ASAP Cordsets

Flexible, Lightweight, Crush Resistant — Everything You've Always Wanted in a Fiber Optic Cable

  • FEP (High-Temperature PTFE Fluoropolymer), PEEK (Halogen Free, Lightweight) and Metal-Core (EMI and Crush Proof) Versions
  • Nine Standard Material Packages
  • Shielded and Un-Shielded Designs
  • Single and Multimode Fiber Media
  • D38999 Series III Connectors in Aluminum, Composite or Stainless Steel
  • Plug, Jam-Nut Receptacle, In-Line and Wall-Mount Receptacle Configurations
  • Military Standard Dust Caps
  • MIL-PRF-29504 Qualified Termini
  • Multichannel Capability: From 2 to 37 Channels

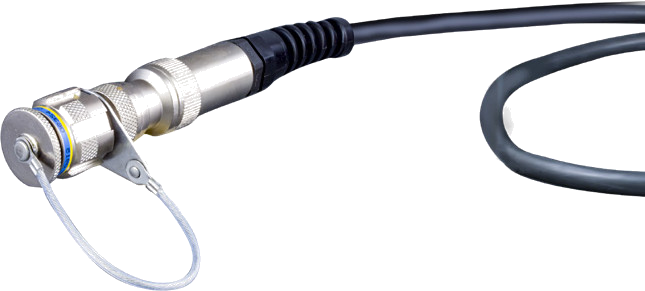

FO1002 ASAP Fiber Optic Cable Sets with Banding Backshell, MIL-DTL-38999 Series III Type

FO1002
ASAP Fiber Optic Cable Sets with Banding Backshell

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic ASAP Cordsets

The Ideal Solution for Combined Environmental Resistance, Field Repairability and Kevlar® Termination

  • MIL-DTL-38999 Series III Connectors in Aluminum, Composite or Stainless Steel
  • Glenair Banding Backshells with Flex-Nut Strain-Relief in Aluminum, Composite or Stainless Steel
  • Plug, Jam-Nut Receptacle, In-Line and Wall-Mount Receptacle Configurations
  • Single and Multimode Fiber Media
  • Simple, Fast Kevlar Strength-Member Termination
  • Military Standard Dust Caps
  • MIL-PRF-29504 Qualified Termini
  • Multichannel Capability: From 2 to 37 Channels
  • Custom Lengths Available
  • 100% Tested

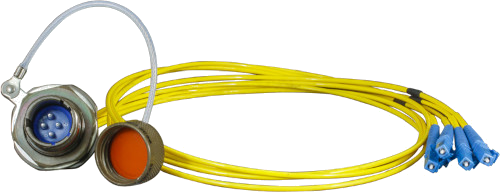

FO1003 ASAP Fiber Optic Cable Set with D38999 Series III to ST, FC, SC, LC & SMA, MIL-DTL-38999 Series III Type

FO1003
ASAP Fiber Optic Cable Set with D38999 Series III to ST, FC, SC, LC & SMA

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic ASAP Cordsets

Glenair Terminated and Optically Tested Receptacle/Pigtail Assemblies Are Ready When You Are

  • Jam-Nut and Wall Mount D38999 Series III Type Fiber Optic Receptacle Connectors in Aluminum, Composite or Stainless Steel
  • ST, FC, SC, LC and SMA to D38999 Series III Configurations
  • Single and Multimode Fiber Media
  • Military Standard Dust Caps
  • MIL-PRF-29504 Approved Termini
  • Multichannel Capability: From 2 to 37 Channels
  • Custom Lengths Available

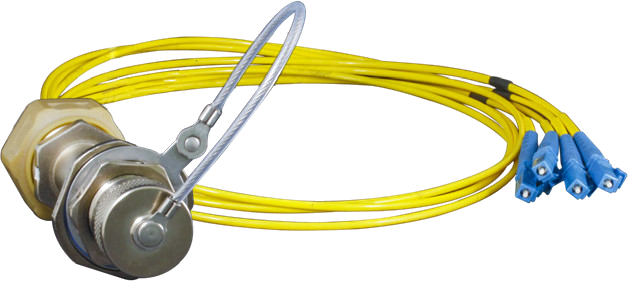

FO1004 ASAP Fiber Optic Cable Sets with D38999 Series III to ST, FC, SC, LC & SMA and FiberCon® Backshell, MIL-DTL-38999 Series III Type

FO1004
ASAP Fiber Optic Cable Sets with D38999 Series III to ST, FC, SC, LC & SMA and FiberCon® Backshell

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic ASAP Cordsets

Because Sometimes Strain-Relief and Exact Fiber Alignment are a Requirement — Even Inside the Box

  • Jam-Nut and Wall Mount D38999 Series III Type Fiber Optic Receptacle Connectors in Aluminum, Composite or Stainless Steel
  • ST, FC, SC, LC and SMA to D38999 Series III Configurations
  • Grommet Sealing and Micro-Alignment Backshells in Aluminum, Composite and Stainless Steel
  • Singlemode and Multimode Fiber Media
  • Military Standard Dust Caps
  • MIL-PRF-29504 Approved Termini
  • Multichannel Capability: From 2 to 37 Channels
  • Custom Lengths Available

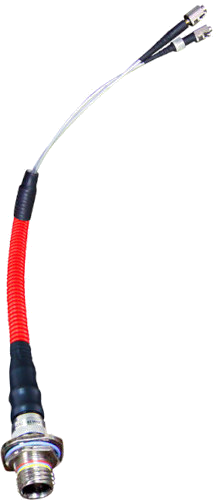

FO1005 ASAP Fiber Optic Cable Sets with Low-Profile Backshell and Conduit D38999 Series III to ST, FC, SC, LC & SMA, MIL-DTL-38999 Series III Type

FO1005
ASAP Fiber Optic Cable Sets with Low-Profile Backshell and Conduit D38999 Series III to ST, FC, SC, LC & SMA

SuperNine® MIL-DTL-38999 Series III Type Fiber Optic ASAP Cordsets

The Perfect Amount of Mechanical Protection for Fiber Media in Non-Environmental Applications

  • Jam-Nut and Wall Mount D38999 Series III Type Fiber Optic Receptacle Connectors in Aluminum, Composite or Stainless Steel
  • ST, FC, SC, LC and SMA to D38999 Series III Configurations
  • High-Temperature and Halogen Free Protective Convoluted Tubing Options
  • Single and Multimode Fiber Media
  • Military Standard Dust Caps
  • MIL-PRF-29504 Approved Termini
  • Multichannel Capability: From 2 to 37 Channels
  • Custom Overall and Break-out Lengths Available
