Environmental I/O, Cable, and PCB Connectors – SuperNine® Advanced Performance MIL-DTL-38999 Series III Type

Glenair's signature mil-aero cylindrical environmental connector series, SuperNine®, is available in crimp and PC tail connectors with optional banding platforms — plus high-durability contacts, piston-seal environmental versions and blind-mate space-grade solutions

The advanced performance MIL-DTL-38999 Series III SuperNine environmental series connector offers the broadest range of performance enhancements ever seen in a commercial connector series built in accordance with MIL-DTL-38999 Series III, including high-durability anti-decoupling technology, plus 1500 mating cycle contacts and integrated shield termination technology. SuperNine also offers the industry’s broadest selection of sealed COTS PC tail-equipped connectors. IP68 in the mated-condition (10 meters, two hours) plus special space-grade blind-mate and zero extraction force solutions lead the industry for performance and reliability. SuperNine® advanced performance MIL-DTL-38999 connector Series III key features include:

Plug connectors with high durability plating and banding porch
Crimp and PC receptacles with high-durability contacts
Five different designs of sealed printed circuit board connector standoffs
MIL-STD-1560 as well as high-density insert arrangements
High-durability vibration and shock performance IAW Bell Helicopter and Boeing aircraft specifications

General Reference

Contact Arrangements

PCB Footprints

Panel Cutouts and Other Specifications

Advanced Performance MIL-DTL-38999 Series III SuperNine® Environmental Series

The environmental class of the Glenair Series 23 SuperNine® includes IP68 (mated condition) MIL-DTL-38999, Series III crimp plugs and receptacles for cable and I/O applications, plus the interconnect industry's most advanced range of sealed PCB termination receptacles, connector savers and bulkhead feed-thrus. High performance options include extended durability contacts, integrated banding capability, high-density insert arrangements, and more. Rugged ratcheted coupling technology delivers reliable vibration and shock performance. Insert arrangements are in accordance with MIL-STD-1560 and include special high-density arrangements.

	233-205 Plug and Receptacle Environmental Class Connector Series, IAW D38999 Accessory Thread Version, Crimp Contacts, and SuperNine® Advanced Performance MIL-DTL-38999 Series III Features G6 = Plug, with EMI Spring 05 = Receptacle, In-Line 07 = Receptacle, Jam Nut 00 = Receptacle, Wall Mount with Slotted Holes HS = Receptacle, Wall Mount with Standard Helicoil HM = Receptacle, Wall Mount with Metric Helicoil CS = Receptacle, Wall Mount with Standard Clinch-Nuts CM = Receptacle, Wall Mount with Metric Clinch-Nut
	233-206 Plug and Receptacle Environmental Class Connector Series, IAW D38999 Integrated Banding Porch Version, Crimp Contacts, and SuperNine® Advanced Performance MIL-DTL-38999 Series III Features G6 = Plug, with EMI Spring 05 = Receptacle, In-Line 07 = Receptacle, Jam Nut 00 = Receptacle, Wall Mount with Slotted Holes HS = Receptacle, Wall Mount with Standard Helicoil HM = Receptacle, Wall Mount with Metric Helicoil CS = Receptacle, Wall Mount with Standard Clinch-Nuts CM = Receptacle, Wall Mount with Metric Clinch-Nut

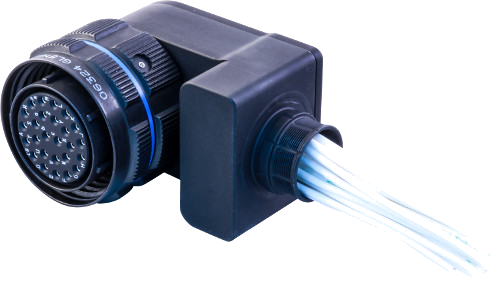

	233-221 Crimp-Contact 90° "Cobra" Plug with Banding Porch Advanced Performance MIL-DTL-38999 Series III SuperNine® Environmental Series G6 = 90° Low profile plug, with integral backshell
	233-215 Plug and Receptacle Environmental Class Connector Series, IAW D38999 1000 PSI Piston-Seal Version, Accessory Threads or Integrated Banding Porch, Crimp Contacts, and SuperNine® Advanced Performance MIL-DTL-38999 Series III Features G6 = Plug, with EMI Spring 05 = Receptacle, In-Line 07 = Jam nut receptacle HM = Wall mount receptacle with metric helicoils HS = Wall mount receptacle with standard helicoils

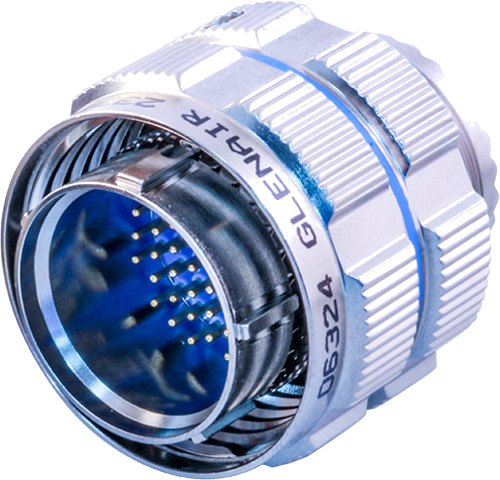

	233-274 1K PSI Crimp-Contact Piston-Sealed Connectors, Fuel-Resistant Advanced Performance MIL-DTL-38999 Series III SuperNine® Environmental Series G6 = Plug, EMI Spring, (D389999/26 Type) 05 = Receptacle In-Line 07 = Receptacle, Jam-Nut (D38999/24 Type) HM = Receptacle, Wall Mount with Metric Helicoils HS = Receptacle, Wall Mount with Standard Helicoils D0 = Wall mount receptacle with round hole

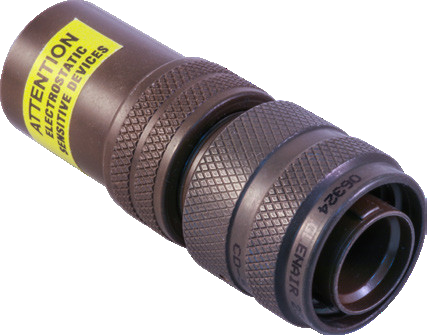

	233-393 USB 2.0 Memory Stick, 11 - 35 Arrangement, D38999 Type Advanced Performance MIL-DTL-38999 Series III SuperNine® Environmental Series
	233-216 Lanyard-Release Plug with EMI Spring, IAW D38999, D38999 Type Advanced Performance MIL-DTL-38999 Series III SuperNine® Environmental Series G6 = Plug with EMI Spring

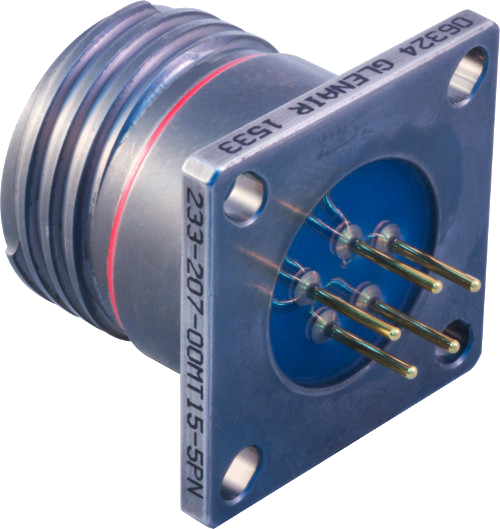

	233-207 Sealed PCB Receptacle with Flush Flange, D38999 Type 00 = Wall Mount Receptacle with Slotted Holes HM = Wall Mount Receptacle with Metric Helicoils HS = Wall Mount Receptacle with Standard Helicoils 07 = PCB Receptacle with Flush Flange

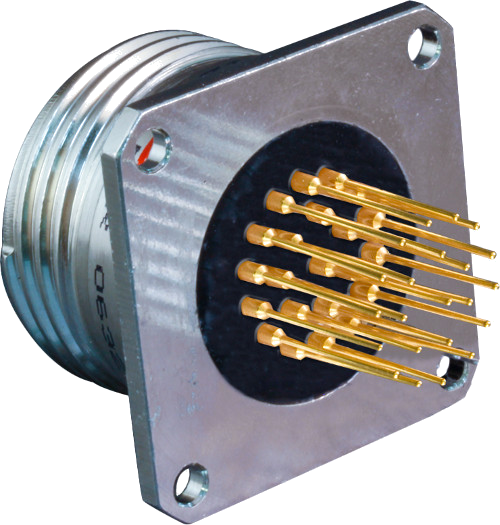

	233-208 Sealed PCB Receptacle with Stepped Contacts, D38999 Type 00 = Wall Mount Receptacle with Slotted Holes CM = Wall Mount Receptacle with Metric Clinch Nuts CS = Wall Mount Receptacle with Standard Clinch Nuts HM = Wall Mount Receptacle with Metric Helicoils HS = Wall Mount Receptacle with Standard Helicoils 07 = PCB Receptacle with Stepped Contacts

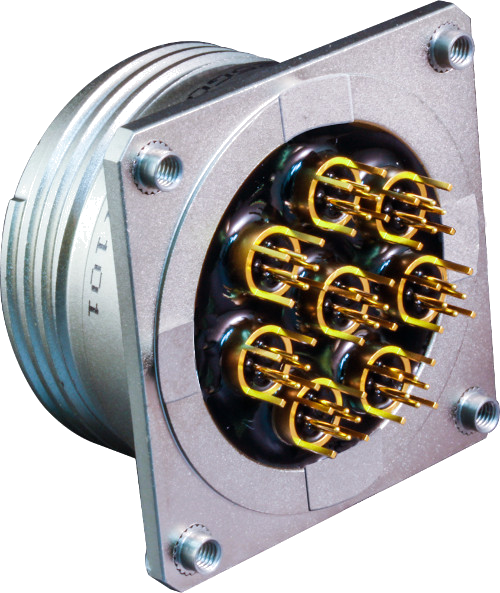

	233-209 Sealed 1 x 10^-4 PCB Receptacle with Washout Standoffs, D38999 Type 00 = Wall Mount Receptacle with Slotted Holes HM = Wall Mount Receptacle with Metric Helicoils HS = Wall Mount Receptacle with Standard Helicoils CM = Wall Mount Receptacle with Metric Clinch Nuts CS = Wall Mount Receptacle with Standard Clinch Nuts 07 = PCB Receptacle with Flush Flange
	233-210 Sealed PCB Receptacle with Threaded Standoff, D38999 Type 00 = Wall Mount Receptacle with Slotted Holes, Standard Stand-off Thread 10 = Wall Mount Receptacle with Slotted Holes, Metric Stand-off Thread CM = Wall Mount Receptacle with Metric Clinch Nuts CS = Wall Mount Receptacle with Standard Clinch Nuts HM = Wall Mount Receptacle with Metric Helicoils HS = Wall Mount Receptacle with Standard Helicoils 07 = Jam-Nut Mount Receptacle with Standard Stand-off Thread

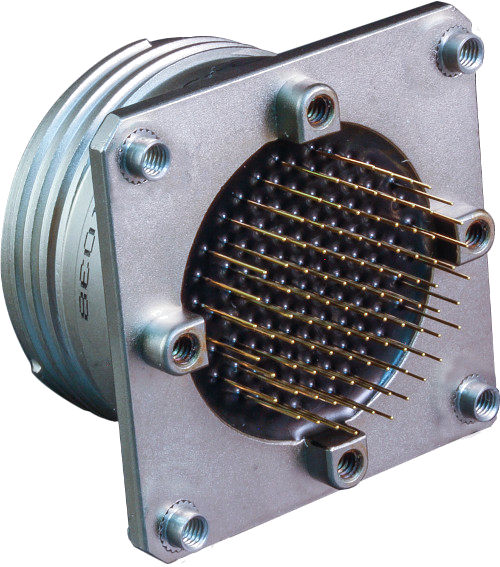

	233-292 PCB Jam-Nut Receptacle with Metric or Standard Threaded Standoff and Press Fit Contacts, D38999 Type 07 = Receptacle, Jam Nut, Standoff Std Thd 17 = Receptacle, Jam Nut, Standoff Metric Thd

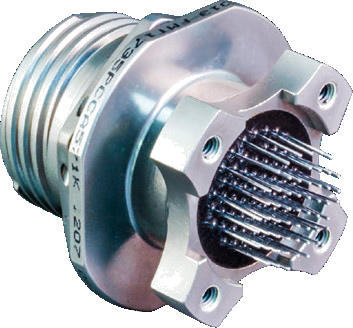

	233-211 Sealed PCB Receptacle, Dual-Flange, D38999 Type 00 = Wall Mount Receptacle with Slotted Holes 10 = Wall Mount Receptacle with Slotted Holes CM = Wall Mount Receptacle with Metric Clinch Nuts CS = Wall Mount Receptacle with Standard Clinch Nuts HM = Wall Mount Receptacle with Metric Helicoils HS = Wall Mount Receptacle with Standard Helicoils 07 = PCB receptacle with Dual Flange
	2333-2007 Dual Flange, Jam-Nut Mount Receptacle with PC Tails 07 = Dual Flange Jam-Nut Mount Receptacle

SAV-CON® Connector Savers

The Smart Solution for Preventing Contact Damage and Extending the Service Life of Cable Assemblies and Box and Panel-Mount Receptacles

Glenair Sav-Con® Connector Savers are designed to protect connectors that are subject to repeated mating and unmating cycles. Sav-Con® Connector Savers prevent costly repair or replacement of expensive connectors and cables while preserving the quality and integrity of connector performance. Sav-Con® Connector Savers take the abuse of repeated connection cycles instead of "black box" or other equipment connectors. Equipment connectors that are mated and unmated frequently during manufacturing, check-out phases and environmental test programs can be protected by Glenair Sav-Con® Connector Savers at considerable savings in time and money.

Reference

In-line Sav-Con, D38999 Series III, 233-213

233-213
In-line Sav-Con, D38999 Series III

SuperNine® Advanced Performance MIL-DTL-38999 Series III Environmental

Sav-Con Connector Saver, High Reliability Class

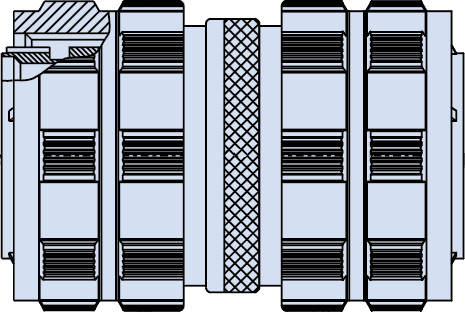

In-Line Plug/Plug Connector Saver, MIL-DTL-38999 Series III Type, 233-214

233-214
In-Line Plug/Plug Connector Saver, MIL-DTL-38999 Series III Type

SuperNine® Advanced Performance MIL-DTL-38999 Series III Environmental

Sav-Con Connector Saver with Polarization Options

Jam Nut and Wall-Mount Bulkhead Feed-Thrus, 233-212

233-212
Jam Nut and Wall-Mount Bulkhead Feed-Thrus

SuperNine® Advanced Performance MIL-DTL-38999 Series III Environmental

00 = Wall Mount Receptacle with Slotted Holes
CM = Wall Mount Receptacle with Metric Clinch Nuts
CS = Wall Mount Receptacle with Standard Clinch Nuts
HM = Wall Mount Receptacle with Metric Helicoils
HS = Wall Mount Receptacle with Standard Helicoil
07 = Jam-Nut Bulkhead Feed-Thru

SuperNine® Pulse Width Modulation (PWM) MIL-DTL-38999 Series III Type Connectors

Aerospace-Grade Connectors for PWM and other High-Voltage, High-Temperature Applications

High-voltage power connectors optimized for pulse width modulation applications (PWM) require unique capabilities including the ability to withstand PWM inverter electrical stresses far different from standard 50/60 Hz AC conditions. Designed in collaboration with the Clean Sky Consortium, Glenair SuperNine® PWM power connectors have been optimized for PWM switch frequencies, 1000V working voltages, and temperature range tolerance from -65° to +200°C. In addition to its high-performance, heavy gold crimp power contacts, the SuperNine® PWM features stainless steel connector shells and temperature-tolerant PEEK (polyetheretherketone) dielectric inserts. Engineered contact-to-contact spacing and contact-to-shell grounding contributes to this connector's unique capability in MEA (More Electric Aircraft) and other power-intensive commercial and military applications.

Reference

Pulse Width Modulation Plug Connectors, IAW EN3645-01:23, 233-230-G6

233-230-G6
Pulse Width Modulation Plug Connectors, IAW EN3645-01:23

SuperNine® Advanced Performance MIL-DTL-38999 Series III Environmental

233-230-00
Pulse Width Modulation Receptacle Connector, IAW EN3645-01:23

SuperNine® Advanced Performance MIL-DTL-38999 Series III Environmental

TurboFlex® Aerospace-Grade Power Cable for PWM Connectors

SuperNine® Advanced Performance MIL-DTL-38999 Series III Environmental

TurboFlex® cable is constructed from highly flexible conductors and high-performance insulation for optimized flexibility, durability, and weight reduction. Amazingly durable and flexible — especially in cold weather — the 16 AWG to 450 MCM TurboFlex cable features high strand count rope lay inner conductors made with tin-, nickel- and silver-plated copper. TurboFlex is jacketed with Glenair's unique low-smoke, zero-halogen Duralectric™ compound that provides outstanding Ultra-flexible rope lay construction flexibility and resistance to environmental and chemical exposure.

961-001 TurboFlex, .125 WALL, 4500 VAC
961-002 TurboFlex, .093 WALL, 3500 VAC
961-003 TurboFlex, .062 WALL, 3000 VAC
961-004 TurboFlex, .032 WALL, 2000 VAC

Space-Grade Circular Blind-Mate Connectors, MIL-DTL-38999 Series III Type

Glenair Series 253 blindmate connectors, MIL-DTL-38999 Series III Type, are designed to meet applicable environmental, electrical and mechanical performance characteristics of D38999 Series III. The technology is well suited for use in commercial rack and-panel instrumentation applications, as well as a blind-mate solution for satellite deployment, scientific research and development payloads, interstage, UAV, and munitions release and more.
