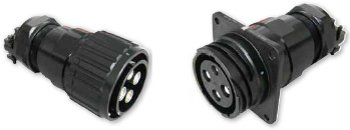

Reverse Bayonet High Current/Mid Voltage Multi Pole Power Connector
ITS 901 Series is the extension of the ITS Reverse Bayonet connector family, for power cables over AWG 1/0.
Suitable for harsh environmental conditions, 901 Series Connectors accept cable from AWG 4 to 262 MCM (35 - 120 mmq), for current up to 450 Amp. Working voltage: 800 - 1000 Vac. Available for single wires and multipole jacketed cables, with cable clamp or conduit. Male contacts with Finger Test Protection, Load Side (Receptacle or Plug). Long bayonet ramps, three polarization keys and rubber recovered coupling facilitate mating and unmating operations.
Reference
- Introduction
- Technical Characteristics
- Components Exploded View
- Available Configurations
- How to Order - Part Number Breakdown
- Security Instructions
ITS 901 06G - 1
Straight Cylindrical Plug with Rubber Recovered Coupling
Assembly for Single Wires Cable Clamp
ITS 901 06G - 3
Straight Cylindrical Plug with Rubber Recovered Coupling
Assembly for Single Wires and Conduit
