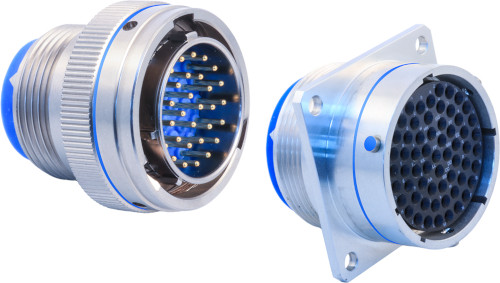

MIL-DTL-26482 Series II Type Bayonet Lock Connectors

Rugged Bayonet-Coupling Crimp-Contact Connectors, built IAW MIL-DTL-26482 Series II

Series 260

For rugged military and industial applications that require quick mate/demate three-point bayonet-lock coupling.
Glenair 26482-style connectors offer high-performance plating options unavailable in standard mil-spec parts including TZ Tin-Zinc, our recommended RoHS-material AMS2434 Type 2 qualified cadmium-compatible replacement, ZR black zinc-nickel, and Z1 passivated stainless steel.
Complete range of tooled MIL-STD-1669 insert arrangements for size #20, #16, and #12 signal and power crimp, rear-release contacts. The Glenair solution offers three shell size 8 arrangements not available in the mil-spec version.

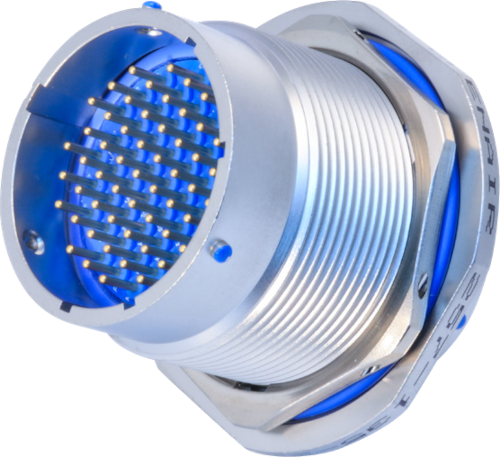

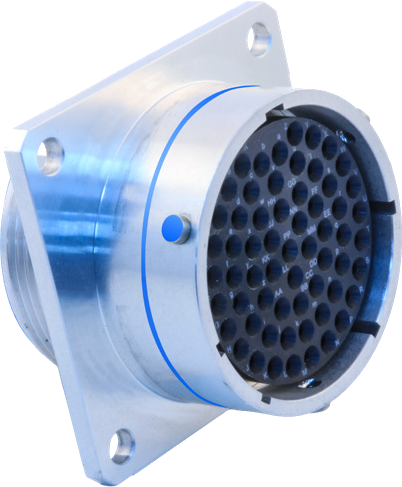

MIL-DTL-26482 type hermetic-class Series II connectors go beyond the standard mil-spec offerings with additional features and options. These include narrow or wide flange mount Pin-Pin and Pin-Socket bulkhead feed-thrus, and crimp removable pin and socket contacts. Hermetically sealed connectors are ideally suited for harsh vacuum environments which must remain free of air or gas impurities or the ingress of foreign chemical substances to prevent corrosive condensation, dielectric breakdown, or the loss of insulation resistance between conductors. Typical applications include medical, geophysical, military aerospace, and industrial applications.

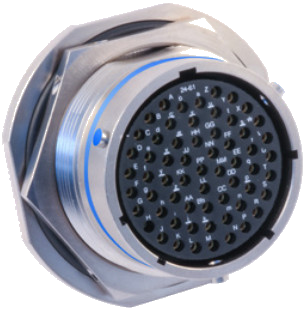

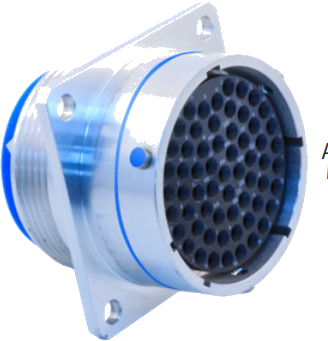

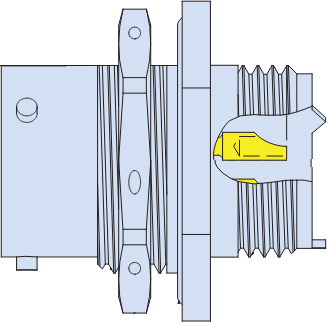

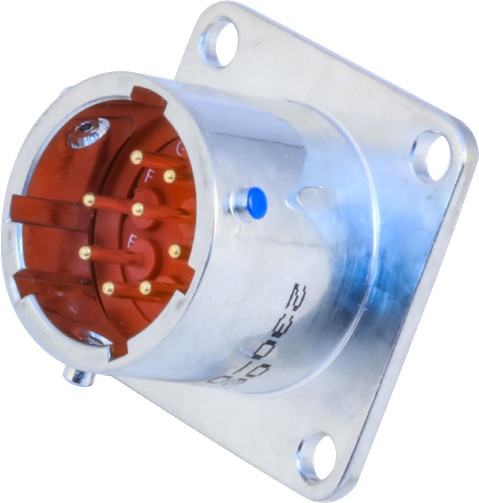

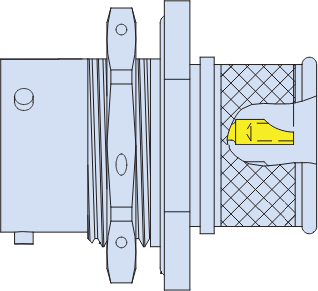

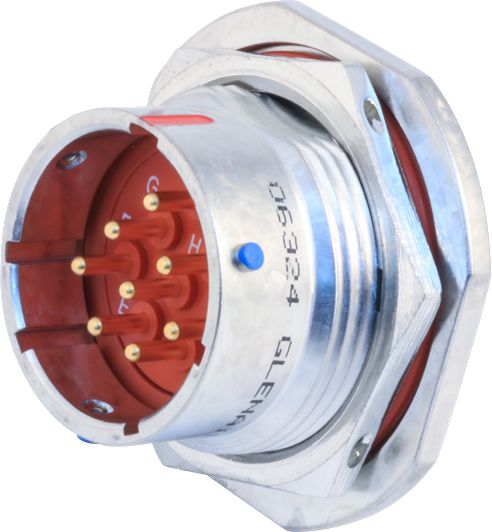

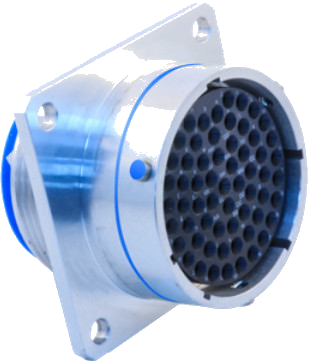

Shell styles for MIL-DTL-26482 type connectors include flange mount, jam-nut mount, and solder mount. Material/Finish options include stainless steel/passivated, stainless steel/nickel plated, and stainless steel/tin plated. Contact factory for additional finish options. Contact arrangements available per MIL‑STD-1669. All standard and alternate polarizations are fully supported.
