Series 801 Double-Start Stub ACME Thread Mating Connectors

Glenair Series 801 Mighty Mouse Offers Mil-Spec Performance in a Lightweight, Ultraminiature Package

Series 801

The 801 Series Mighty Mouse is ideal for use in high-density packaging applications where traditional military circular connectors are too large or too heavy. The double-start threads provide full mating in 1½ turns, and the plug features an anti-decoupling spring for vibration resistance. The unique integral molding/band platform allows direct shield attachment and cable overmolding. Receptacles are available with printed circuit board contacts. Plugs have anti-decoupling wave spring, or specify ratchet mechanism for added security.

• Double-Start ACME Thread with anti-decoupling spring or ratchet
• Crimp Rear Release Contacts
• Integral Band Platform
• Available with Size #12, #16, #20, #20HD and #23 Contacts
• Environmentally Sealed

Reference

• Product Selection Guide
• Specifications / Materials and Finishes
• Connector Weight and Size Comparison
• Contact Arrangements, Mating Face of Pin Insert Shown
• Panel Cut-Out Dimensions and Key /Keyway Positions and Polarization

Mighty Mouse > Series 801 Double-Start Stub ACME Thread Mating

801-007
801-008

Plug with Crimp Contacts

801-113
801-114

Panel Mount Plug with Crimp Contacts, PC Tail or Solder Cup

801-069-26

Right Angle, Low-Profile Cobra Plug

801-009
801-010

Receptacle with Rear Release Crimp Contacts

801-011
801-033

Receptacle with PC Tails or Solder Cup Contacts

801-052

PCB Receptacle with PC Tails and Ground Pins

801-075

Jam-Nut, Rear Panel Mount, PCB Receptacle

801-123

Receptacle with Size #12 Twinax and Combo PC Tail Arrangements

801-023

Right Angle Jam-Nut Rear Panel Mount, PCB Receptacle

801-107

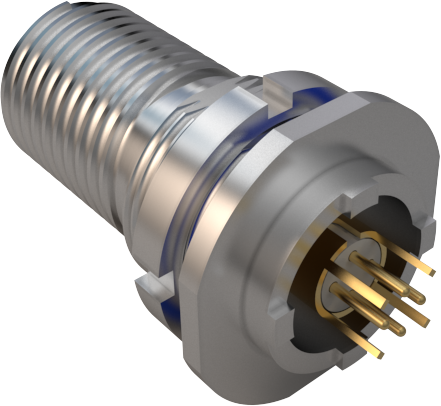

Hermetic PC Tail Receptacles with Size 8 High-Speed, RF, and Power Contacts

801-074

Environmental Jam-Nut Bulkhead Feed-Thru

801-017

Series 801 Sav-Con Connector Savers

Series 801 Cordsets

Series 801 Cordsets
