Flange Gaskets for Series 800 Mighty Mouse Square Flange Receptacles These flange gaskets provide sealing between square flange receptacles and the mounting panel. Choose fluorosilicone, Viton®, or conductive fluorosilicone material (Chomerics 1298 silver-filled). Gaskets are .032" (0.8) thick.
Flange Gaskets for Series 801 Mighty Mouse Square Flange Receptacles These flange gaskets provide sealing between square flange receptacles and the mounting panel. Choose fluorosilicone, Viton®, or conductive fluorosilicone material (Chomerics 1298 silver-filled). Gaskets are .032" (0.8) thick.
Flange Gaskets for Series 802 Mighty Mouse Square Flange Receptacles These flange gaskets provide sealing between square flange receptacles and the mounting panel. Choose fluorosilicone, Viton®, or neoprene material. Gaskets are .032" (0.8) thick.
Flange Gaskets for Series 803 Mighty Mouse Receptacles These flange gaskets provide sealing between elliptical flange receptacles and the mounting panel. Choose fluorosilicone, Viton®, or conductive fluorosilicone material (Chomerics 1298 silver-filled). Gaskets are .032" (0.8) thick.
Flange Gaskets for Series 805 Mighty Mouse Square Flange Receptacles These flange gaskets provide sealing between square flange receptacles and the mounting panel. Choose fluorosilicone, Viton®, or conductive fluorosilicone material (Chomerics 1298 silver-filled). Gaskets are .032" (0.8) thick.
O-Rings
Replace lost or damaged O-rings. Available in fluorosilicone, EPDM, and conductive fluorosilicone, these O-rings fit Mighty Mouse jam nut receptacles.
809-067 and 809-054 Series 800 and 801 O-Rings for Mighty Mouse Jam Nut Receptacles Replace lost or damaged O-rings with standard fluorosilicone O-rings. Or, choose EPDM O-rings for improved resistance to hydraulic fluids. Upgrade to silver-filled conductive O-rings for improved EMI protection.
809-165 802 Replacement Flange O-Rings for Jam-Nut and Square Flange Receptacles These Viton® O-rings fit Series 802 "AquaMouse" rear panel mount jam nut connector flanges.
809-189 803 Replacement O-Rings for Mighty Mouse Jam-Nut Receptacles Replace lost or damaged O-rings with standard fluorosilicone O-rings. Or, choose EPDM O-rings for improved resistance to hydraulic fluids.
809-055 and 249-003 804 O-Rings for Mighty Mouse Jam-Nut Receptacles Replace lost or damaged O-rings with standard fluorosilicone O-rings. Or, choose EPDM O-rings for improved resistance to hydraulic fluids. Upgrade to silver-filled conductive O-rings for improved EMI protection.
809-150 O-Ring for Series 805 Rear Panel Mount, Jam-Nut Receptacles Replace lost or damaged O-rings with standard fluorosilicone O-rings. Or, choose EPDM O-rings for improved resistance to hydraulic fluids. Upgrade to silver-filled conductive O-rings for improved EMI protection.
Mounting Flange
Replace worn or lost mounting flanges. Offered with standard or metric threads.
Mighty Mouse jam-nut receptacles are supplied with low-profile spanner nuts. Jam-nuts require the use of a spanner wrench socket to be tightened. Optional hex nuts are available with safety wire holes.
809-094 Standard Series 80 Low Profile Jam-Nut For replacement of lost or damaged standard low profile jam-nuts. Will fit Series 800, 801, 804, and 805 jam-nut receptacles. Use with Glenair spanner tool 600-146. See spanner wrench sockets for each series to get appropriate torque values.
600-146 Spanner Wrench Socket for Series 800, 801, and 804 (Shell Style 07) Jam-Nuts For use with Series 800, 801, 804 (shell style -00). 3/8" square drive for use with torque wrench. Heat-treated steel, nickel plated.
600-147 Spanner Wrench Socket for Series 804 Low Profile Jam-Nuts For use with Series 804 front panel mount. 3/8" square drive for use with torque wrench. Heat-treated steel, nickel plated.
600-154 Spanner Wrench Socket for Series 805 Low Profile Jam-Nuts Use these tools to tighten Series 805 jam-nuts. 3/8" square drive for use with torque wrenches. Heat-treated steel, nickel plated.
600-154 Extended Length Spanner Wrench Socket for Series 80 Low Profile Jam-Nuts for Extended Length Jam-Nut Connectors with Size #8 Contact Arrangements Extended length spanner wrench sockets are used to tighten jam-nuts for Series 801 and 805 connectors with size #8 contacts requiring a longer shell. For use 3/8" square drive. Nickel-plated heat-treated steel.
809-183 Series 803 Low Profile Jam-Nut For replacement of lost or damaged standard low profile jam-nuts. Will fit Series 803 jam-nut receptacles. Use with Glenair spanner tool 600-146. See spanner wrench socket for series to get appropriate torque values.
600-137 Spanner Wrench Socket for Series 803 Low Profile Jam-Nuts Use these tools to tighten Series 803 jam-nuts. 1/4" or 3/8" square drive for use with torque wrenches. Heat-treated steel, nickel plated.
Series 800 thru 805 Shorting Caps and Backshells

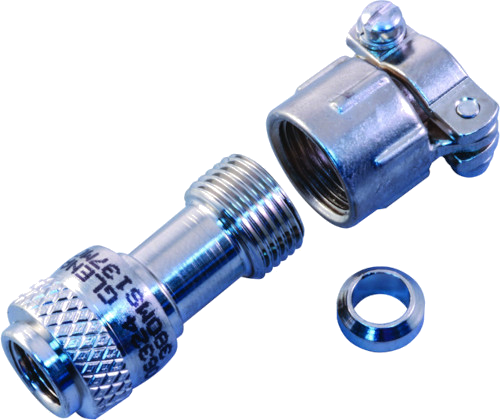

Backshells feature rotatable or direct coupling saddle clamps to provide strain relief for wire bundles. Upgrade to environmental and EMI protection. Shorting Caps, band and shrink boot adapters also available.
Protect Your Cable Harness with heat-shrinkable boots. These easy-to-use boots provide excellent electrical, mechanical and environmental protection. Heating the boot causes the boot to shrink onto the connector and cable . An adhesive lining bonds the boot to the connector and cable and fills small gaps for a complete seal. Choose straight cable exit or right angle exit. These lipped boots attach directly to Series 80 Mighty Mouse HD connectors with integral band platform. After shrinking, the boot lip locks into groove. Choose Type 1 high performance elastomer for extreme temperatures and excellent resistance to fuels and oils or Type 2 non-halogenated flame-retardant polyolefin for use where limited fire hazard is required.
Fast, cost-effective shield termination. Attach cable shields to Series 80 connectors or backshells with Band‑Master® stainless steel straps. The Band‑Master® system offers fast termination and the flexibility to handle a wide range of parts with just one band size. Approved for aerospace and defense, these straps have successfully passed rigorous shock, vibration and environmental testing.
Series 800 thru 805 Protective Covers
Thread-on or frictions fit covers provide a watertight seal and prevent damage. Select nylon cord or wire rope lanyards with a range of ring terminal diameters to fit just about any need.
