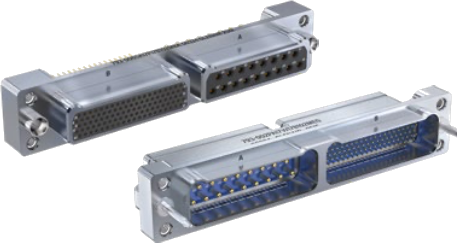

Series 793 Dual-Bay Micro-Crimp Rectangular Connectors

The Series 793 connector is a high reliability aerospace-grade rectangular connector with two inserts for up to 204 contacts. The 973 connector saves size and weight compared to legacy rack-and-panel types. The tight-tolerance scoop-proof shell and recessed contacts guarantee accurate alignment and trouble-free service. Contact sizes are #23, #16, #12, and #8 in eight insert arrangements.

Reference

• Series 793 Features
• Insert Arrangements
• Specifications
• Connectors for Space Flight
• Material and Finish Options
• Polarization Keying Option

Home > Series 79 Micro-Crimp Rectangular Connectors > Series 793 Dual-Bay

---

Horizontal Plugs – Socket Contacts

Horizontal Receptacles – Pin Contacts

Vertical Plugs – Socket Contacts

Vertical Receptacles – Pin Contacts
