Crimp-Contact Micro Rectangular Connectors: Glenair Signature Series 790, 791, 792, 793, 794, and 795 Micro-Crimp

Time- and Labor-Saving Crimp-Contact Micro Miniature Rectangular Connectors

The Series 79 Micro-Crimp family of connectors features crimp, rear-release size #23 contacts on .075 inch (1.9 mm) spacing, size #12 and #16 power and coaxial crimp contacts, plus El Ochito® and Quadrax contacts for high-speed data link applications. Super low-profile Series 79 features robust EMI performance and environmental sealing. Next-generation Series 791 adds dual-lobe polarization, scoop-proof shells, and integrated EMI grounding fingers, and is qualified for manned space flight applications. Series 792 is purpose-designed for 10G Ethernet, USB 3.0, HDMI, SATA, and DisplayPort high-speed applications, and accommodates Glenair Signature El Ochito® octaxial contacts as well as industry-standard quadrax.

• Smallest Form-Factor High-Density Series 790
• Advanced Scoop-Proof Series 791
• Series 792 for High-Speed Wire-to-Board Applications
• Series 793 Dual-Bay Blind-Mate
• Series 794 High-Speed Controlled-Impedance VersaLink™ Connectors
• Series 795 RF/Microwave

Home > Mil-Spec > Crimp-Contact Micro Rectangular Connectors

---

	Series 790 High-Density Micro-Crimp Rectangular Connectors Lightweight, high-density Series 790 combines a small form-factor Micro-D M83513-style shell with M39029-type crimp or PC tail contacts. Crimp contacts are snap-in, rear release. 42 insert arrangements with up to 153 size #23 contacts. EMI protected with ground spring and conductive panel gasket. Environmental, with fluorosilicone face seal and wire grommet.
	Series 791 Scoop-Proof Micro-Crimp Rectangular Connectors Series 791 connector features ruggedized interface with scoop-proof shell and recessed pin contacts. Crimp or PC tail. M39029-type contacts. Panel mounting styles have O-ring. 42 insert arrangements with up to 153 size #23 contacts. EMI protected with ground spring.
	Series 792 High-Speed Micro-Crimp Rectangular Connectors The versatile Series 792 connector supports twinax, quadrax, coax, power, and El Ochito octaxial contacts. Crimp, rear release contacts. Straight or right-angle PC tails. Scoop-proof interface with scoop-proof shell and recessed contacts. Environmental, EMI protected. 16 insert arrangements with up to 9 size #8 contacts.
	Series 793 Dual-Bay Micro-Crimp Rectangular Connectors Series 793 connector has two inserts for up to 204 contacts. Available in two mounting styles: rear panel cable mount. The lightweight, space-saving 793 is ideal for blind-mate applications in ground vehicles and airborne equipment. Eight insert arrangements with size #23, #16, #12 and #8 contacts.
	Series 794 High-Speed Controlled-Impedance VersaLink™ Connectors A rugged, versatile, multi-port, multi-gigabit connector, the Series 794 with shielded VersaLink twinax contact technology is an ideal rectangular solution for 10Gb Ethernet, 100 Gb Ethernet, USB 3.0, USB 3.2, HDMI, DisplayPort, and SATA applications. Offered in layouts from 1 to 36 high-speed VersaLink modules or in hybrid size #22D contact layouts with 1 to 8 VersaLink shielded twinax pairs.
	Series 795 High-Density, Multi-Port RF Rectangular Connectors Series 795 RF high-density, multi-port connectors are a dual-lobe scoop-proof high-density rectangular series. One-piece connector shells provide a common unibody ground plane that eliminates radiation through the connector.
	Contacts and Tools for Micro-Crimp Rectangular Connectors #8, #12, #16, and #23 contacts for Series 79 connectors. Coax contacts, twinax contacts, quadrax contacts, power contacts, and El Ochito® octaxial contacts. Crimp tools, assembly tools, and dummy contact sealing plugs.

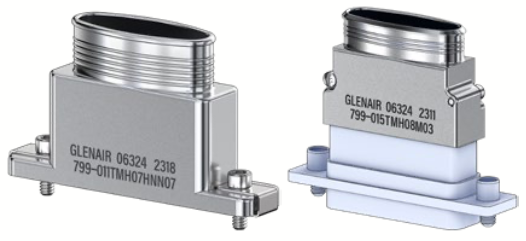

	Backshells and Accessories for Micro-Crimp Rectangular Connectors EMI backshells, protective covers, and screwlocks for Series 790, 791, 792 and 793 connectors.
